Printer parts
Back

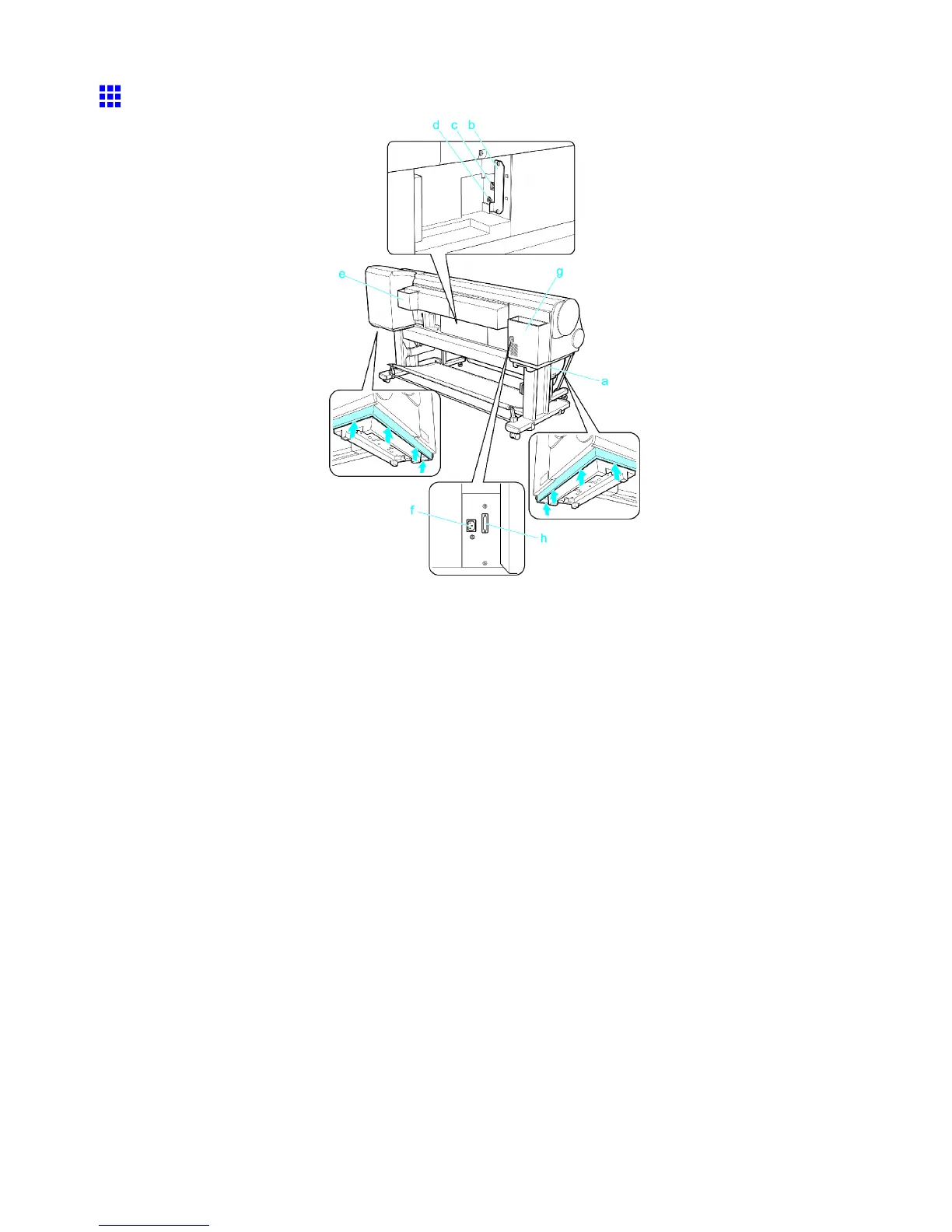

a. Carrying Handles
When carrying the printer , have six people hold it by these handles under both sides.
b. Expansion Board Slots
Install an optional IEEE 1394 (FireWire) expansion board, as desired.
c. Ethernet Port
Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly
and communication is possible between the computer and printer .
d. USB Port
Connect a USB cable to this port. The printer is compatible with Hi-Speed USB connections.
e. Manual Pocket
Store printer manuals in this pocket.
f. Power Supply Connector
Connect the power cord to this connector .
g. Accessory Pocket
Store assembly tools, Roll Holder attachments, and other items in this pocket.
h. Roll Unit Power Supply Inlet
Connect the Roll Unit power cord to this inlet.
Printer Parts 15
