Chapter 4
4-6

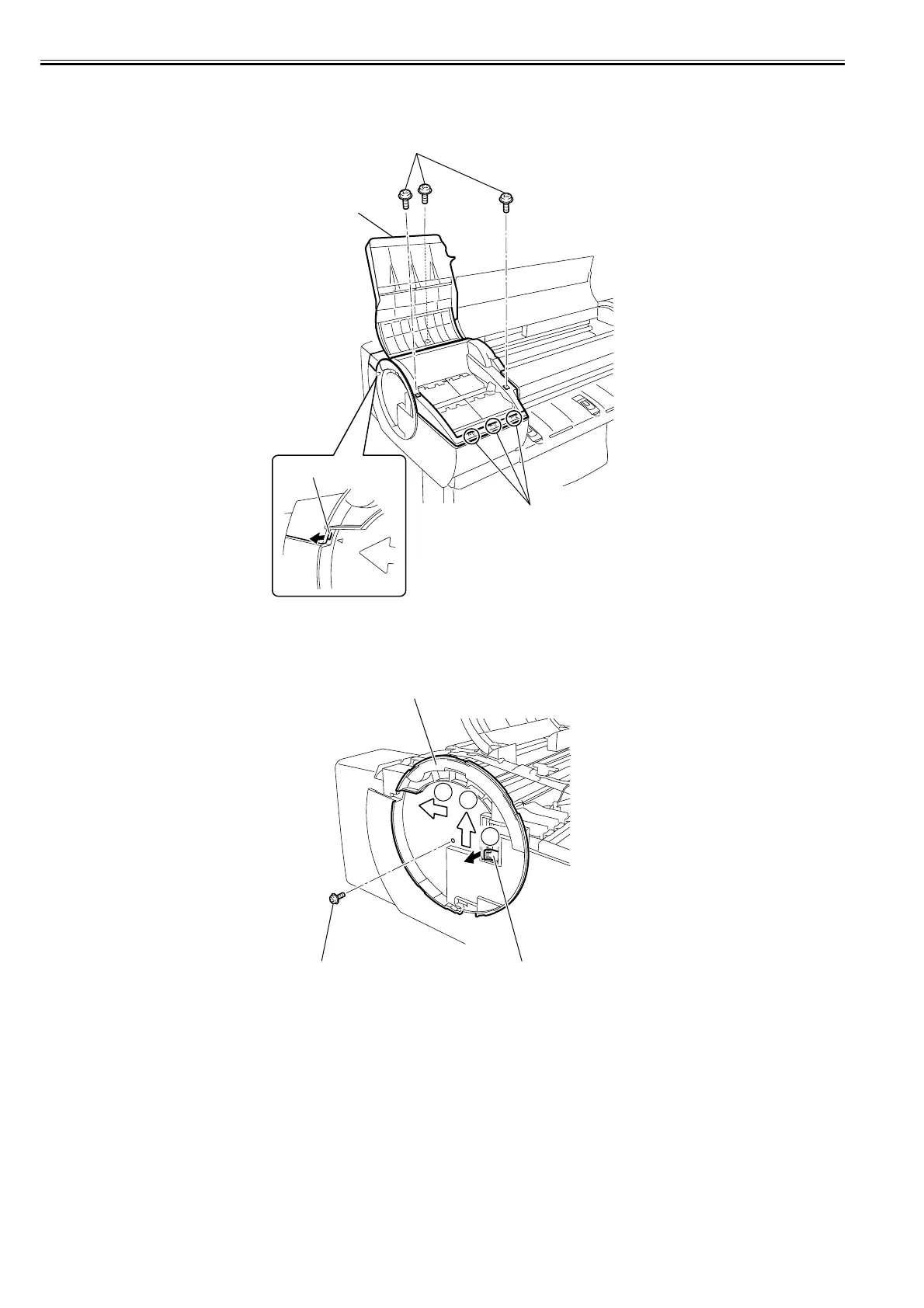

c) Tank cover
Removing the tank cover
1) When removing the tank cover[4], open the top cover, and then remove the roll feed unit and left circle cover.
2) Open the tank cover[4], remove the three screws[1], and then release the three hooks[2] while opening the hook[3] outward.
F-4-8
d) Left cover
Removing the left cover
1) When removing the left cover[3], open the top cover, and then remove the left circle cover and tank cover.
2) Remove the screw[1] and the hook[2], and slide the left cover in the direction of arrow 2, and then slide it in the direction of arrow 3.
F-4-9
[1]
[4]
[2]
[3]
[3]
[1] [2]
1
2
3
