Chapter 4
4-7

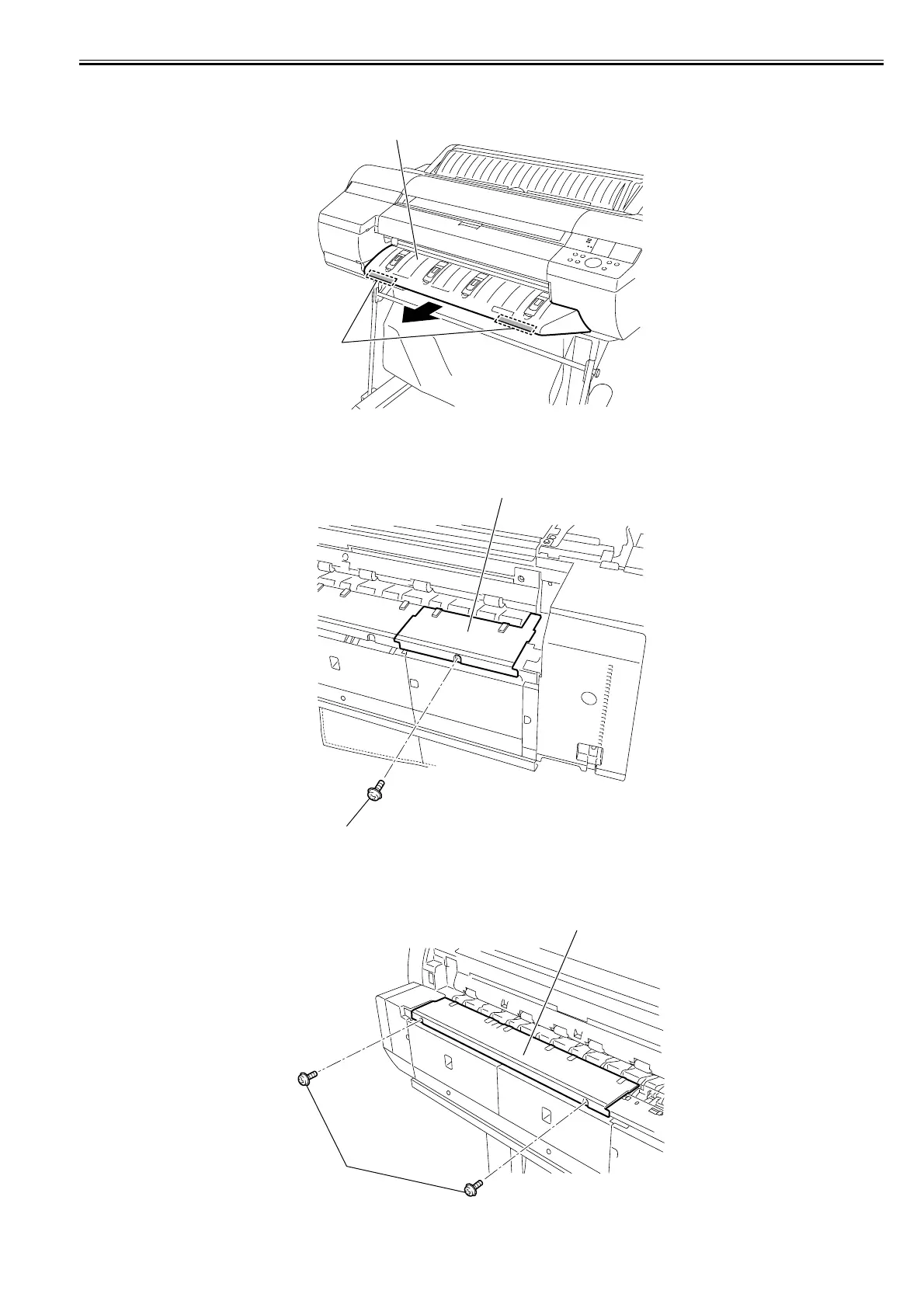

e) Output guide
Removing the output guide
1) To remove the output guide[2], pull it by holding the handles[1].
F-4-10
f) Lower rear left cover
Removing the lower rear left cover
1) Remove the screw[1] to remove the lower rear left cover [2].
F-4-11
g) Lower rear cover
Removing the lower rear cover
1) When removing the lower rear cover[2], remove the two screws[1] and then remove it.
F-4-12
[1]
[2]
[2]
[1]
[2]
[1]
