Canon iPF6100 - Page 316

Chapter 4
4-8

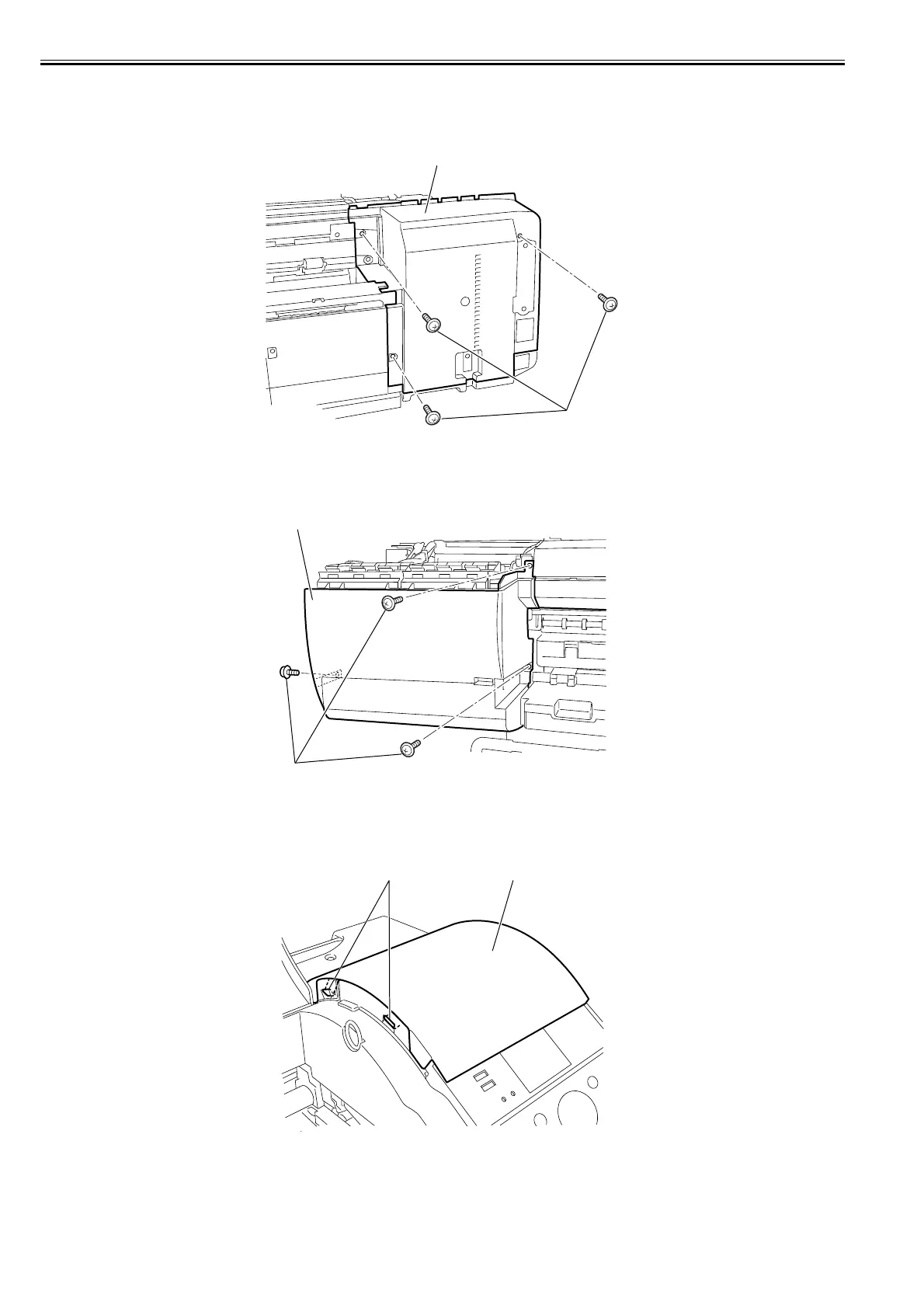

h) Left rear cover
Removing the left rear cover
1) When removing the left rear cover[2], open the top cover, and then remove the roll feed unit, left circle cover, tank cover, left cover, lower rear cover, and lower
rear left cover.
2) Remove the three screws[1], and then remove the left rear cover[2].
F-4-13
i) Left front cover
Removing the left front cover
1) When removing the left front cover[2], open the top cover, and then remove the roll feed unit, left circle cover, tank cover, and output guide.
2) Rmove the three screws[1], and then remove the left front cover[2].
F-4-14
j) Right upper cover
Removing the right upper cover
1) When removing the right upper cover[2], open the top cover, and then remove the right circle cover.
2) Release the two hooks[1], and then remove the right upper cover[2].
F-4-15
[2]
[1]
[2]
[1]
[1] [2]
