Chapter 4
4-54

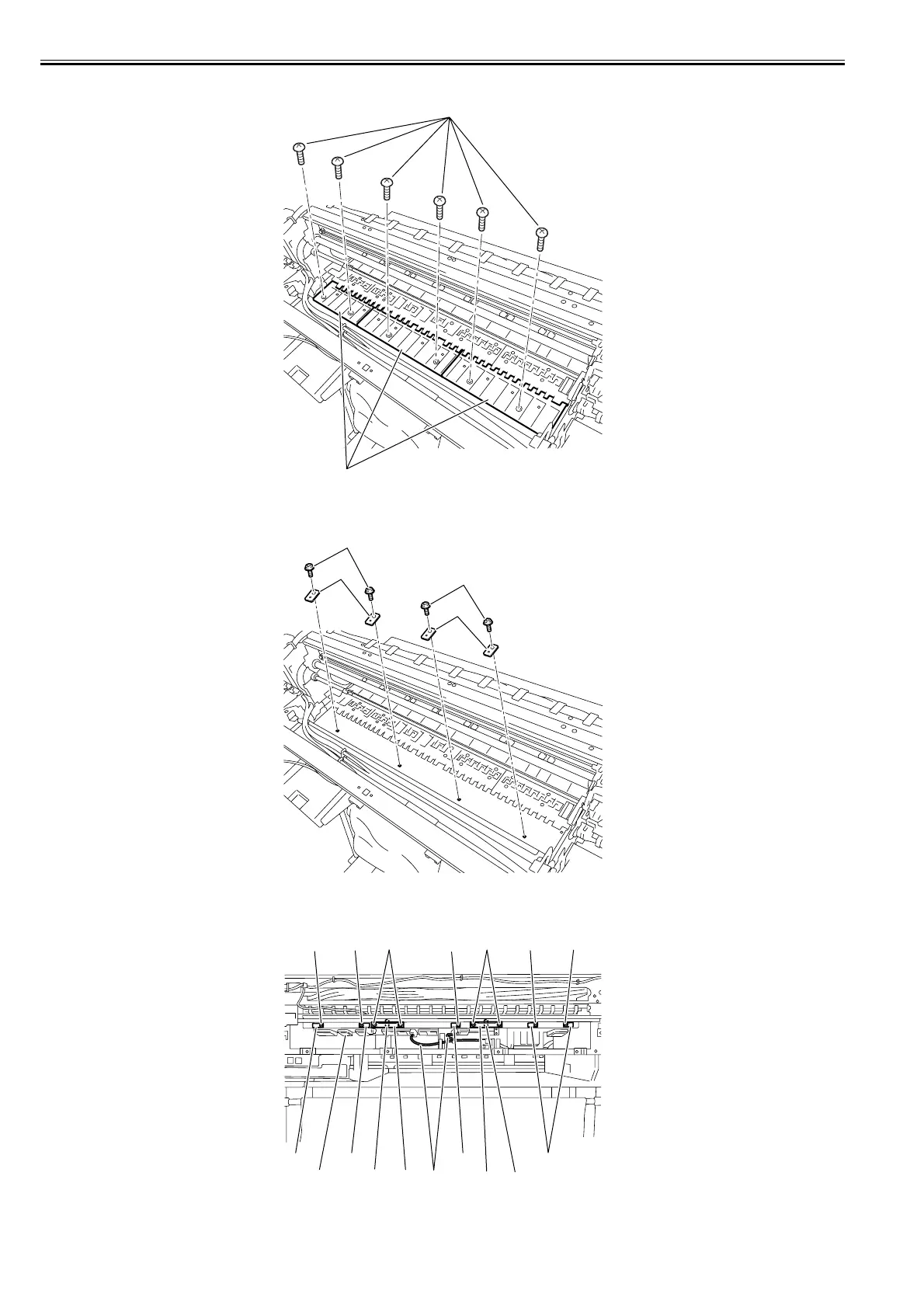

4) Remove the six screws[1] and, while lifting the spur unit, remove three platens (front)[2].
F-4-121
5) Remove the four screws[1] and four bushings[2].
F-4-122
6) Disconnect the two waste ink tubes[3] and remove the nine screws[2] and five bushings[3] and two bushing covers[4] and two springs[5], and then remove the
platen duct[6].
F-4-123
[1]
[2]
[1]
[2]
[1]
[2]
[2]
[3]
[6]
[3]
[5]
[3]
[5]
[4]
[3]
[1]
[4]
[2]
[2]
[2]
[2] [2]
[2]
