3-CONTROLSANDINSTRUMENTS

LEEN11T0005HA6

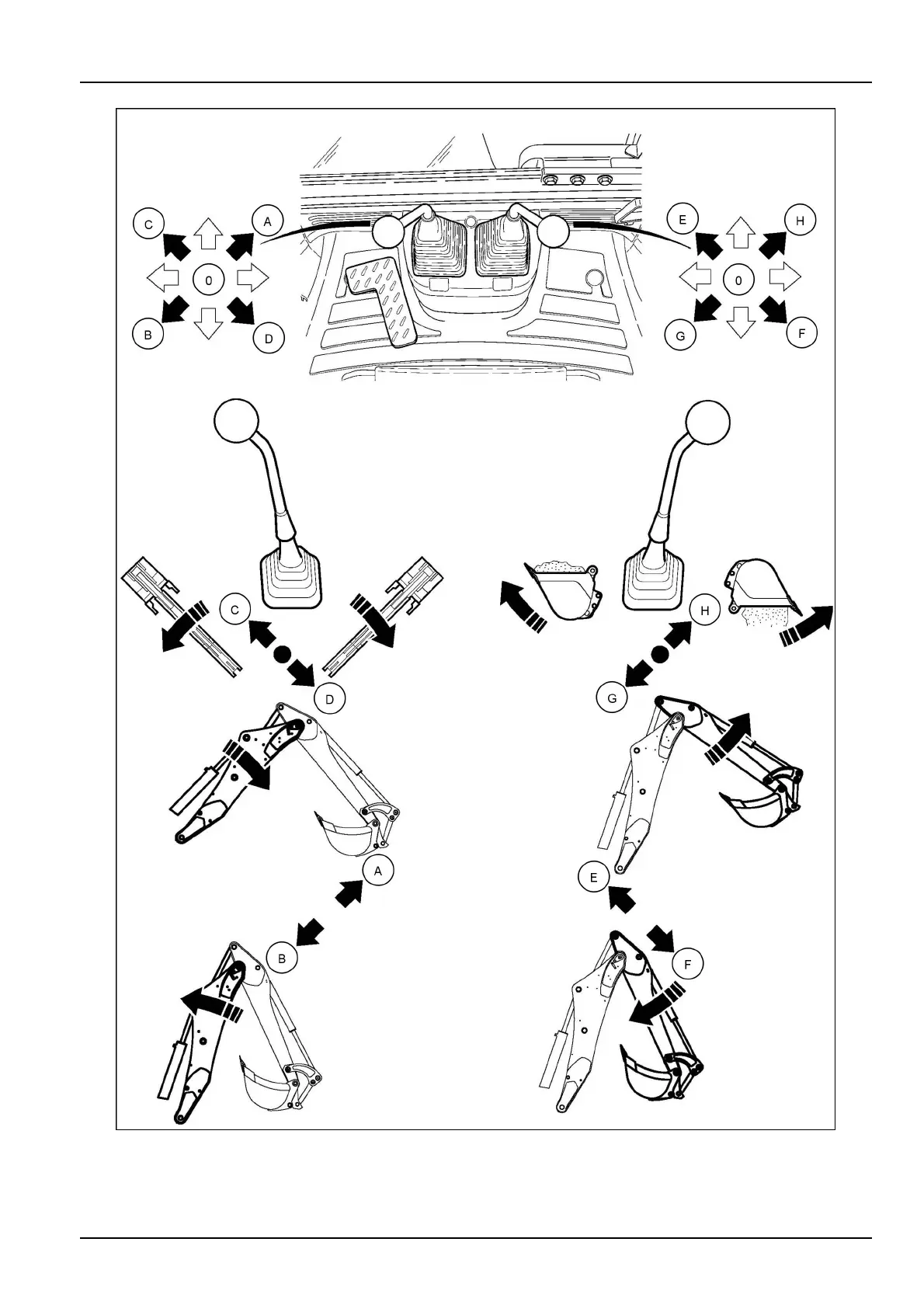

NOTE:Thefunctionsofthecontrolsarethesameforboththeoverlappingcylinderboomandthein-linecylinder

boom.

3-67
