Telescopicdippermechanicalcontrolpedal(iftted)

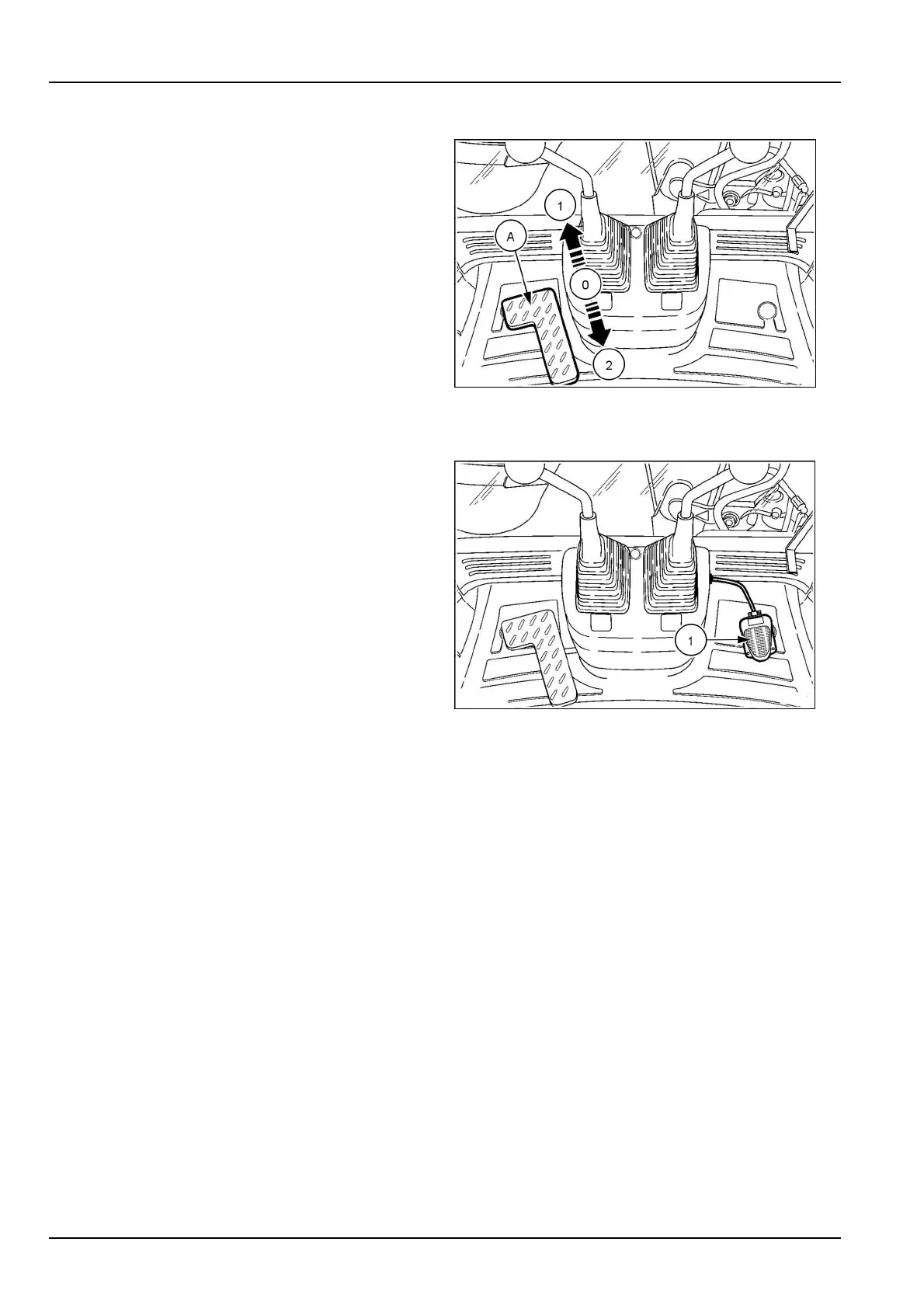

Thispedal(A)hasthreepositions:
Position0:Neutral.Thispositionenablesthemovement
ofthetelescopicdippertobestopped.Thispositionis
selectedautomatically,assoonasthepedalisreleased.
Position1:Thetelescopicdipperextends.
Position2:Thetelescopicdipperretracts.
Beforeusingthispedalmakesurethatthetelescopicdip-
perismechanicallyunlocked.
NOTE:Operatingthebackhoeattachmentcontrollevers
andthispedalsimultaneouslywillenablenumerouspos-
sibilitiesofprogressivefunctioning.
LEEN11T0314AA7
Auxiliaryattachmentcontrolpedal(Optional)
Thispedal(1)islocatedtotherightofthebackhoeattach-
mentcontrolsandisusedforoperatingauxiliaryattach-
ment,suchasahydraulichammer.
LEEN11T0315AA8
