7-MAINTENANCE

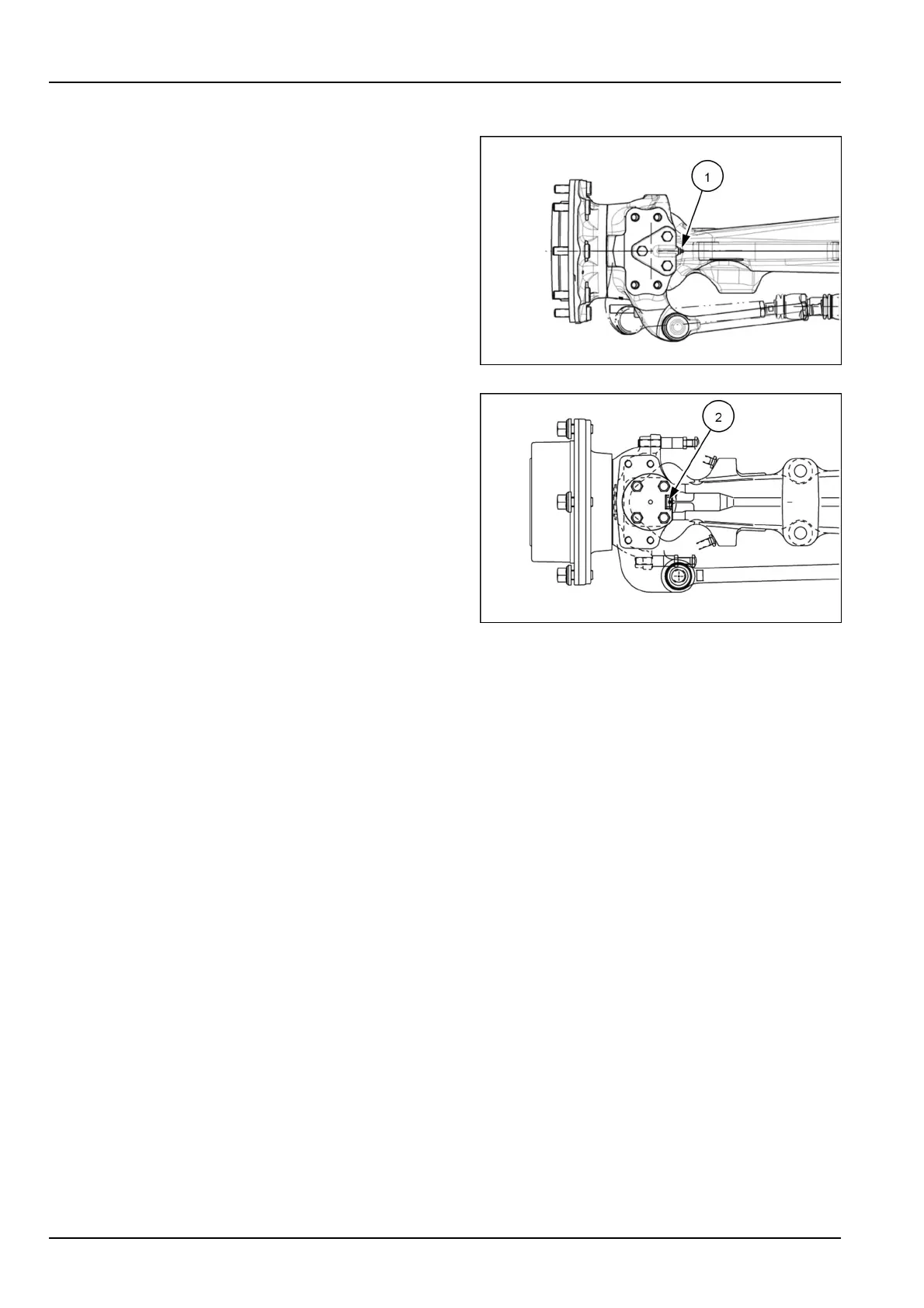

Axlearticulations-Greasing

1.(2WS)Numberofgreasettings(1):4

LEEN11T0389AA16

2.(4WS)Numberofgreasettings(1):8

LEEN11T0390AA17

Greasespecications

UseCASEAKCELAMOLYGREASE(MAT3550)or

agreasewhichmeetsthefollowingstandard:

•

NLGI2

NOTE:

TUTELAMULTI-PURPOSEEPGREASE251H,GR-9

canalsobeused.

7-60
