INSTRUMENTS/CONTROLS
56
LEFT PAGE
Bur 6-34090EUR
INFORMATION CENTER
BD02B020
Fault Code Status
Locations 071 through 090 displayed fault codes and the hours the faults
occurred. the Information Center continuously monitors the machines condition
and records any fault codes; however, it will only record a duplicate code once
every hour. When a fault code is written, the service indicator icon (a manual with
a wrench) will be displayed on the Information Center.
To view the fault codes and the hours they occurred:
● Press the program (C) switch (left side of the program/reset (C, D) switch).
● Press the up count (A) switch until the display reads the desired location (071 -
090).
● Return the program/reset (C, D) switch to the OFF (center) position.
● Read any fault codes on the Display Center.
● Press the program (C) switch again.
● Press the up count (A) switch one time to advance to the next position.
● Return the program/reset (C, D) switch to the OFF (center) position.
● Read the hours at which the previous code occurred.
The hour location will always follow the fault code location.

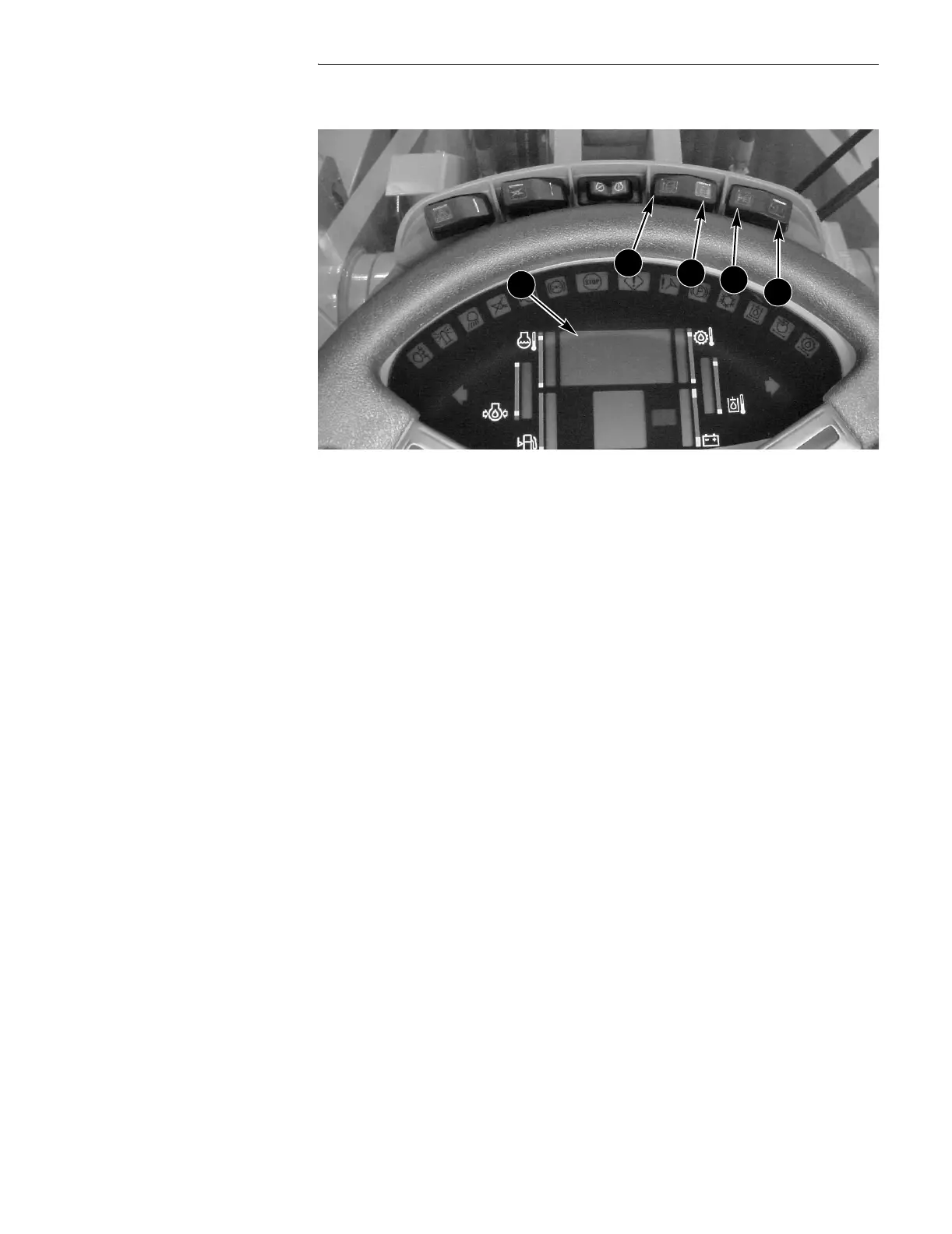

A. UP COUNT C. PROGRAM
B. DOWN COUNT D. RESET
1
A
B
C
D
