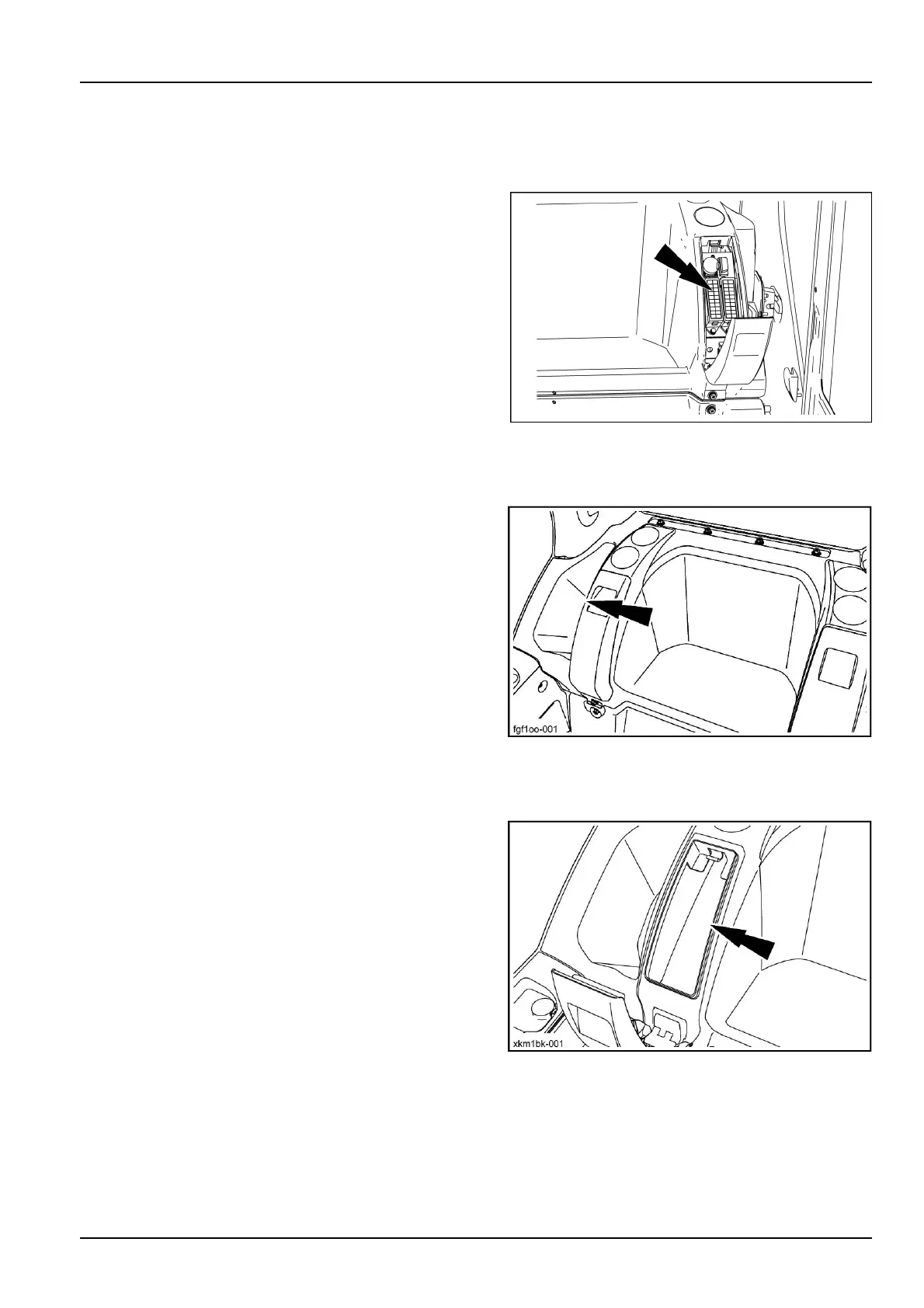

3-CONTROLSANDINSTRUMENTS

Rearwardcontrols

Fusebox

Locatedontheleft-handside,behindtheoperator'sseat.

Thefuseboxcanbereadilyaccessedbyopeningthepro-

tectivecover.

SMIL18CEX0782AA1

Magazinerack

Locatedontheright-handside,behindtheoperator’s

seat.

FGF1OO-001A1

Refrigerated/heatedcompartment

Locatedontheright-handside,behindtheoperator's

seat.

Thiscompartment,associatedwiththeairconditioning

system,isdesignedtostoredifferentcoldorhotproducts,

drinks,etc.

NOTE:Thisisaninsulatedcompartment.Thecompart-

mentmaynotcoolorheatdependingontheconditions.

XKM1BK-001A1

3-57
