Case CX490D - Track Shoe Bolt Torque

6-MAINTENANCE
Trackshoebolttorque
Checkthetorqueofthetrackshoeevery250h(aftertherst50hduringtherun-inperiod)
NOTE:Ifthetracksaretootight,theywearquickly.Iftracksarenottightenough,theywearquicklyandthelinkscan
catchonthesprocketwheelorslideofftheidlerwheelorthesprocketwheel.Cleanthetracksafterwork.
NOTE:Checkthescrewsfortightnessperiodically.Donotusethemachinewithtrackpadscrewsloose.Otherwise,
thescrewsmaycomeouttocausedamagetotracks.

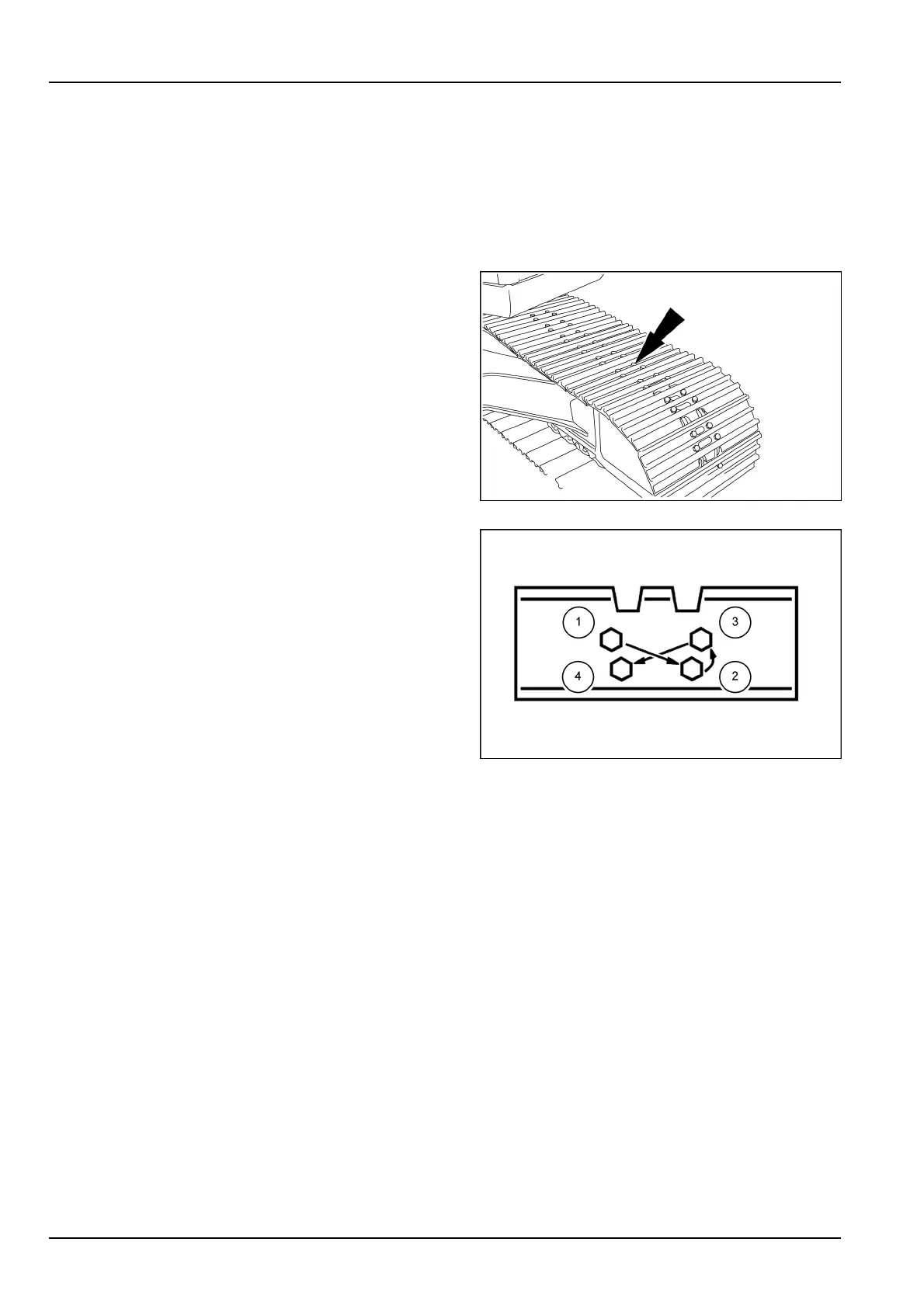

Thescrewstighteningtorquemustbe1236–1510N·m
(912–1114lbft).
SMIL17CEX3811AA1
NOTE:Followthespeciedorderwhentighteningthe
screws.
SMIL14CEX2859AA2
6-36
