Case CX490D - Tie Downs for Shipping

5-TRANSPORTOPERATIONS
Tiedownsforshipping
1.Checktheoverallheightbetweenthegroundandthe
highestpointofthemachineandchecktheoverall
widthofthemachine.Makesuretobewithinthesize
limitsdenedbeforetransport,inordertoconrmdoc-
umentsandpermissionsalreadygottocomplytothe
localtrafcregulations.
2.Placethegatelockleverincentralposition.Stopthe
engineandremovethestarterkey.
3.Getoffthemachine.Retracttheradioantenna.Fold
therearviewmirrors.
4.Lockthecabdoorandthesidepanels.
5.Checktheconditionofthetie-downpointsonthe
trailer.
6.Placearubberpad(A)overtheboom.
7.Passawirerope(B)aroundtheboomtosecurethe
frontequipmenttothetrailer.
8.Putchocks(C)againsttheedgesofthetracks.

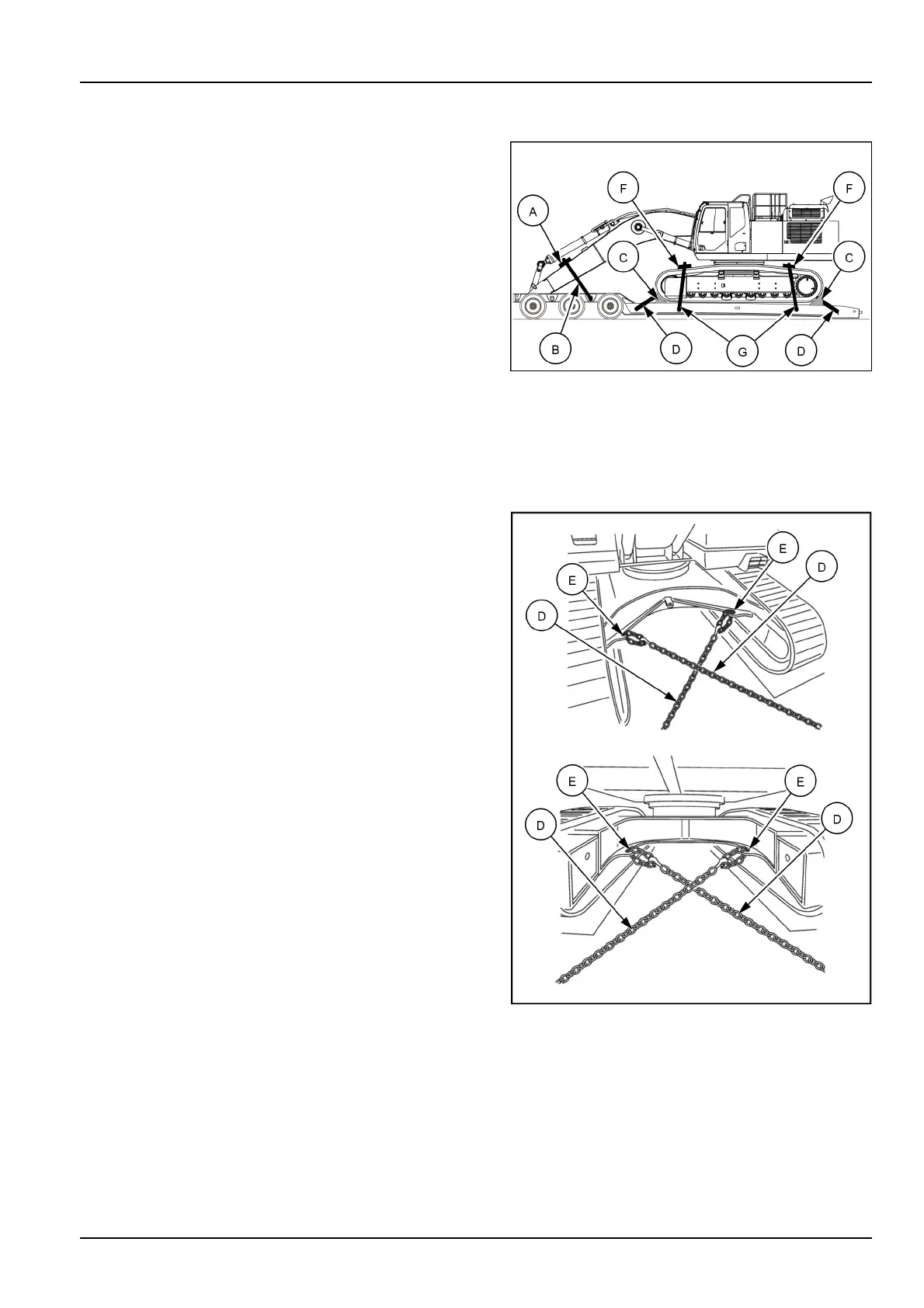

SMIL20CEX1304AA1
9.Fixoneendofatie-downchain(D)toeachofthefour
lashingpoints(E)identiedontheinsideofthelower
frame.
10.SetthechainsinanXshapeasshowninthepicture,
andxthemtothetie-downpointsonthetrailer.T en-
sionthechainsevenlytosecurethemachinetothe
trailer.
11.Putpads(F)overthetracksinthepositionsidentied
alongthesidesofthelowerframe.Routethechains
(G)acrossthetracks,andtie-downonthevertical
direction.
NOTICE:Makesurenottotie-downthemachineonly
intheverticaldirection:therequiredtie-downforce
wouldbehigh,andthiswillcausedamagestothe
tracksandtotheothertractioncomponents.
12.Carryoutanalcheckofthetie-downcondition.
13.Attachthegoosenecktothetrailerbody.
14.Removeblocksfromthetiresofthetrailer.
SMIL13CEX2729BA2
5-11
