Case CX490D - Cameras

3-CONTROLSANDINSTRUMENTS
Cameras
Theexternalcameras,alongwiththeexternalmirrors,en-
surepropervisibilityaroundthemachineduringoperation.
Arearcamera(1)isinstalledonthecounterweight.An
optionalright-sidecamera(2)canbeinstalledabovethe
rearright-handdoor.
NOTICE:Neveroperatethemachinewhileonlylooking
attheimagesonthedisplay.Makesuretocheckthe
areaaroundthemachinebythedirectvieworthrough
themirrors.
NOTICE:Ifanymud,raindrops,snow,etc.areadhered
tothecameralens,theimagesonthedisplayaredeteri-
orated.Wipeawaydirtwithawetandsoftcloth,andthen
wipeitwithadryandsoftcloth.Makesurenottoscratch
thecameras.

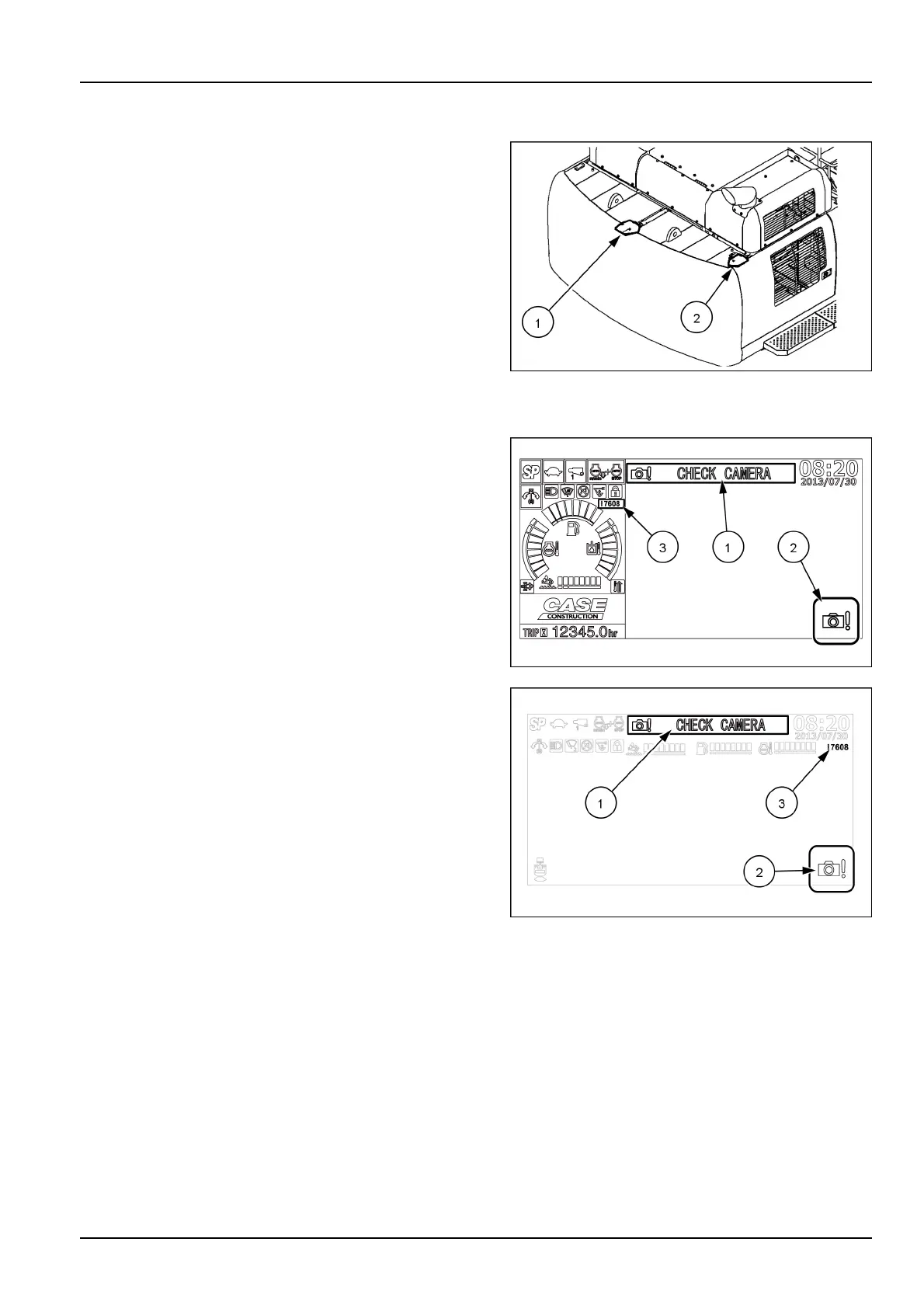

SMIL15CEXY173AB1
Ifthecamerasorthecamerawiringshaveafailure,a
warningbuzzersoundsforabout5s,theCHECKCAM-
ERAmessage(1)andaDTC(3)appear,andthecamera
failureicon(2)isdisplayed.Moreover,theimageofthe
failedcameraisreplacedbyagreybackground.
SMIL14CEX5590AA2
SMIL16CEX1075AA3
