3-CONTROLSANDINSTRUMENTS

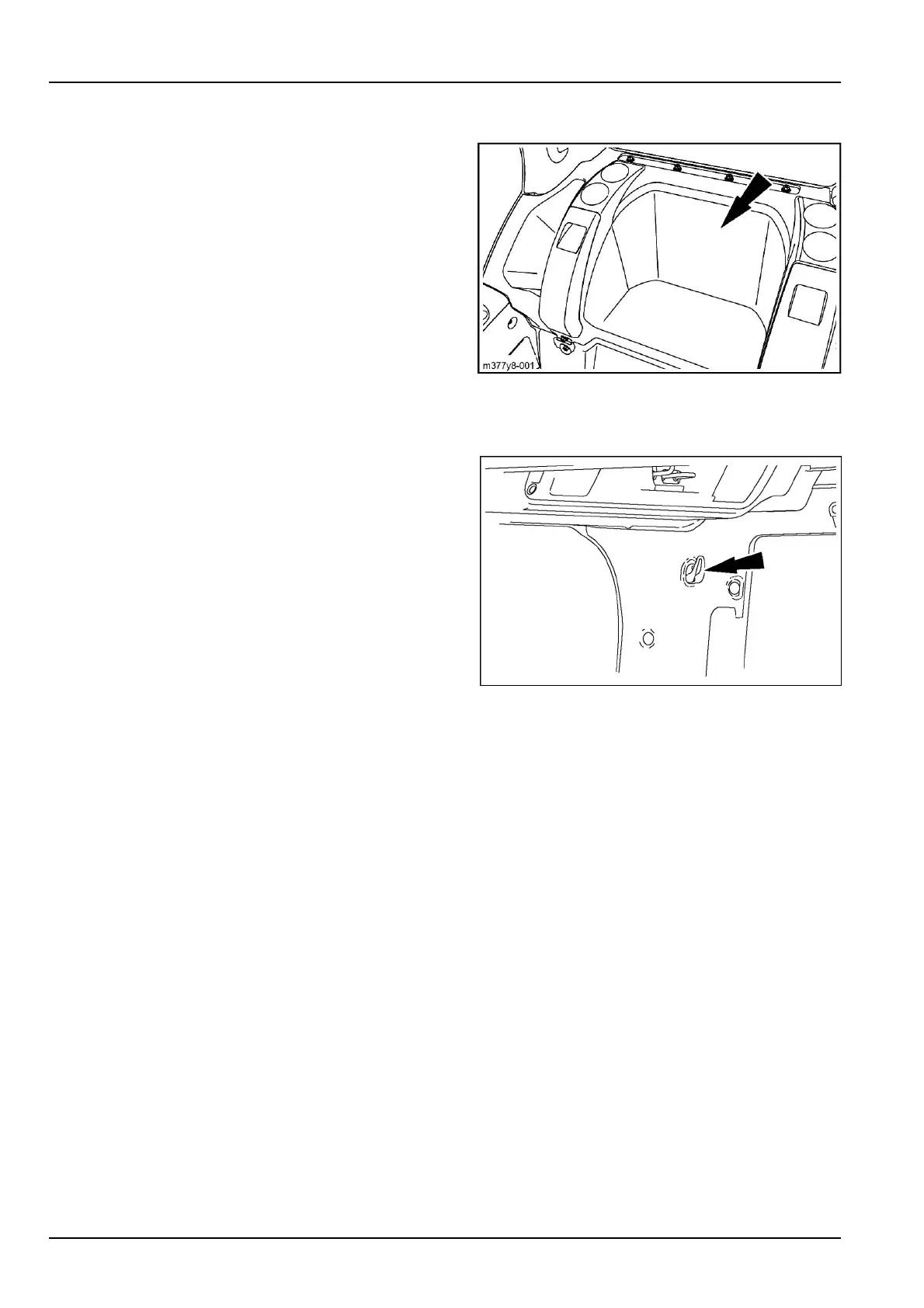

Storagecompartment

Locatedbehindtheoperator'sseat,thiscompartmentis

usedtostorevariousobjects.

NOTICE:Makesurethattheweightofthestoredobjects

islessthan10kg(22.0lb).

M377Y8-001A1

Coathangerhook

Thehookisontherearleft-handcabupright.

NOTICE:Takecarenottoobscuretheviewwithclothes

thataretoobulky.

SMIL15CEXY164AA1

3-58
