6-MAINTENANCE

Every1000hours

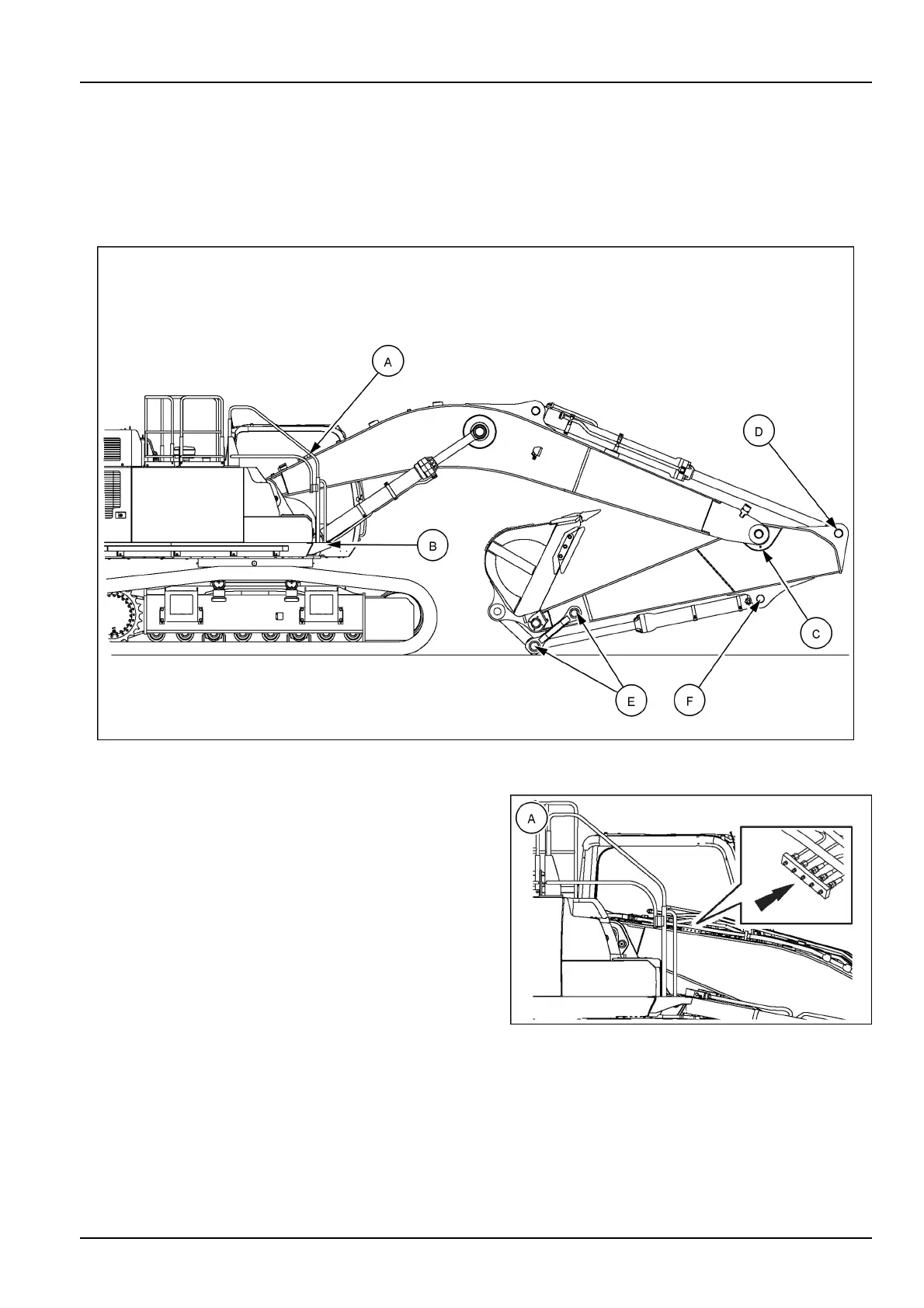

Greasepoints(Boomandarm)

Greasetheboomandarmevery1000h.

Lubricant:CASEAKCELA251HEPMULTI-PURPOSEGREASE

SMIL15CEXY532FB1

NOTE:theboomandthearmshallbelubricatedevery50hifnon-genuinegreaseisused.

Boombottompin:twogreasettings.

Boomcylindertoppin:twogreasettings.

Armcylinderbottompin:onegreasetting.

SMIL15CEXY533AB2

6-47
