Case CX490D - Unloading Machine from Transport Trailer

5-TRANSPORTOPERATIONS
Unloadingthemachinefromatransporttrailer
1.Positionthetraileronrmandlevelground.Putblocks
tothetiresofthetrailertopreventtrailerfrommoving.
2.Detachthegooseneckfromthetrailerbody.
3.Removechains,chocks,blocksandotherdevices
usedtosecurethemachineduringroadtransport.
4.Preparetheloadingramps.Iftherampsareincluded
inthetrailerframe,lowerthemtotheground.Ifthe
rampsareexternaltothetrailer,matchthemtothe
frontedgeofthetraileravoidinganybumpbetween
trailerbedandexternalramps.

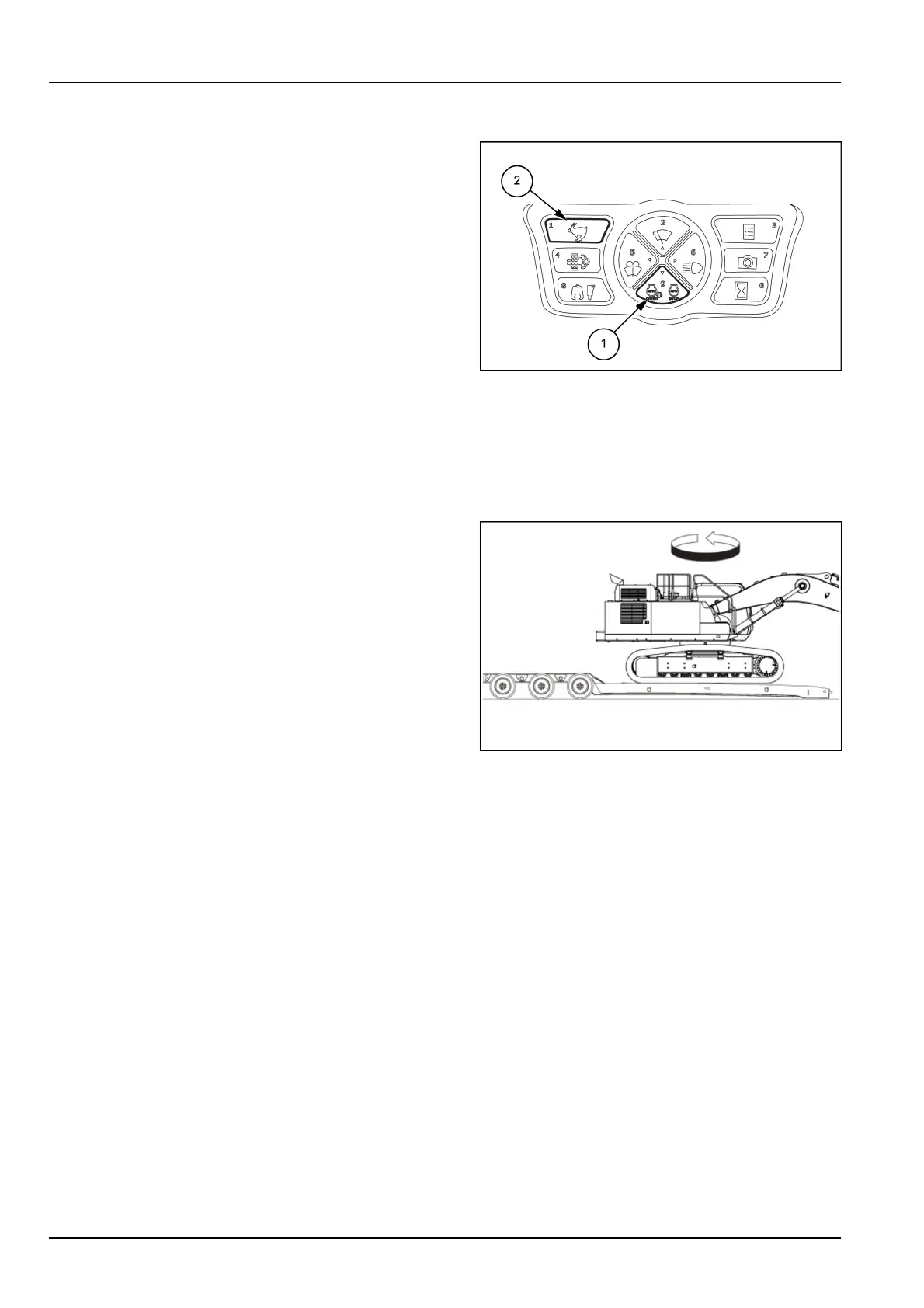

5.Getonthemachineandstarttheengine.
6.Makesuretodeactivatetheautoidlefunctionandthe
autoshut-downfunction.Presstheidlemodebutton
(1)untilanyidleicononthedisplayturnsoff.Pressthe
travelmodeselectorbutton(2)toselectthelowtravel
speed.The“Turtle”iconappearsonthedisplay.
7.SelecttheHworkmodeandsetthegatelockleverin
forwardposition.
SMIL14CEX2560AB1
8.Raisetheboomsoasnottointerferewiththetrailer
bed.
9.Slowlyturntheupperstructure180°.
NOTICE:Inthisposition,travelingandsteeringcon-
trolbecomeoppositetoeachother.
10.Travelslowlytowardsthefrontofthetrailerandstop
asreachingtheramps.
11.Movedownonrampswithextremecare.
12.Passthroughtherampscompletelyandstopthema-
chineonceitgetsontheground.
SMIL19CEX2025AA2
5-12
