3-CONTROLSANDINSTRUMENTS

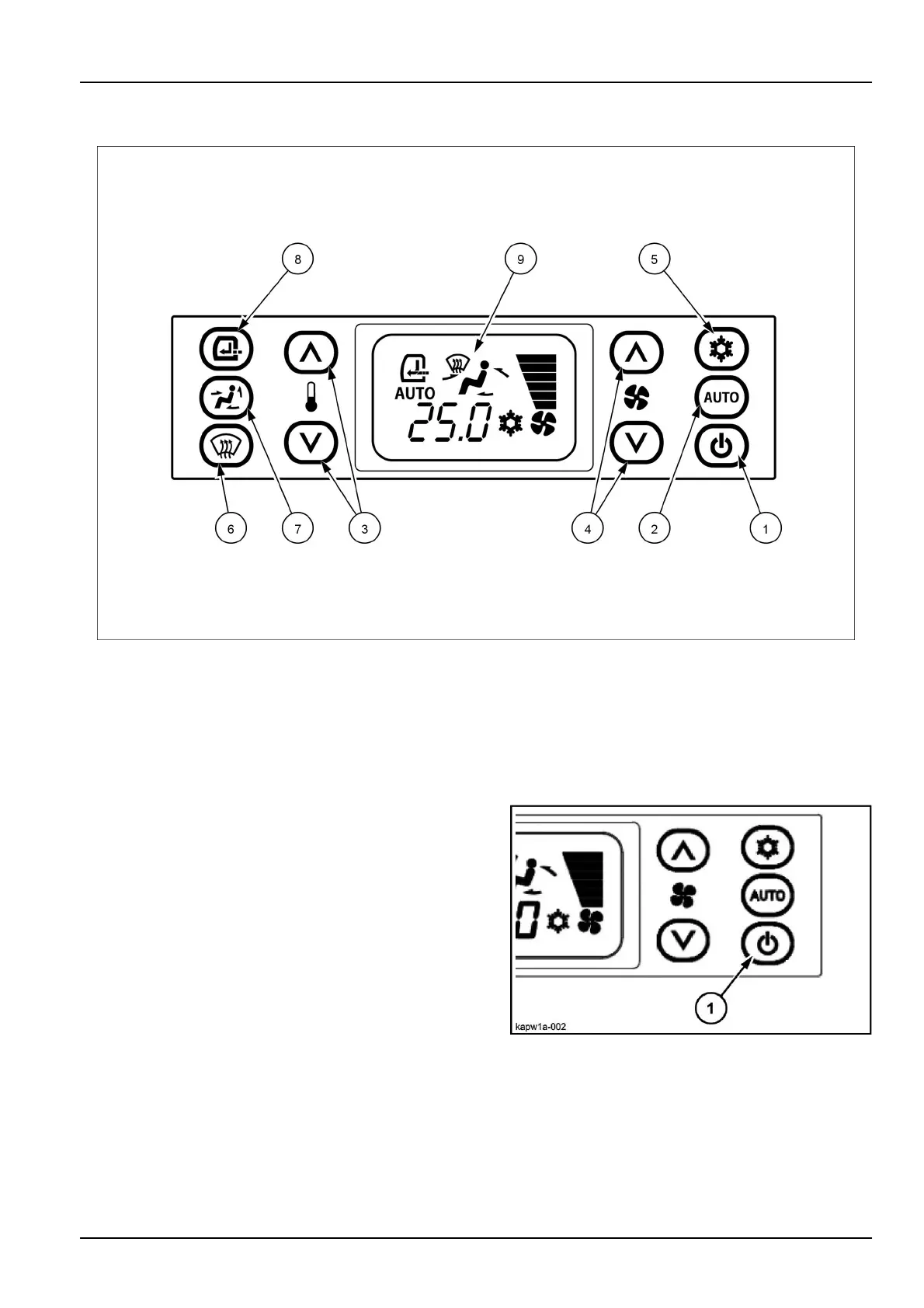

Heating,ventilationorair-conditioningcontrol

SMIL18CEX0530FB1

1.On/Off

2.Automatic

3.T emperature

4.Ventilation

5.Airconditioning

6.Windshielddefroster

7.Airowdirection

8.Airrecycling

9.Displayscreen

On/Off

Thispush-button(1)isforturningthesystemOnorOff.

NOTICE:WhenthesystemisturnedOnitwilloperateat

thesamesettingastheoneselectedpreviously.

KAPW1A-0022

3-17
