6-MAINTENANCE

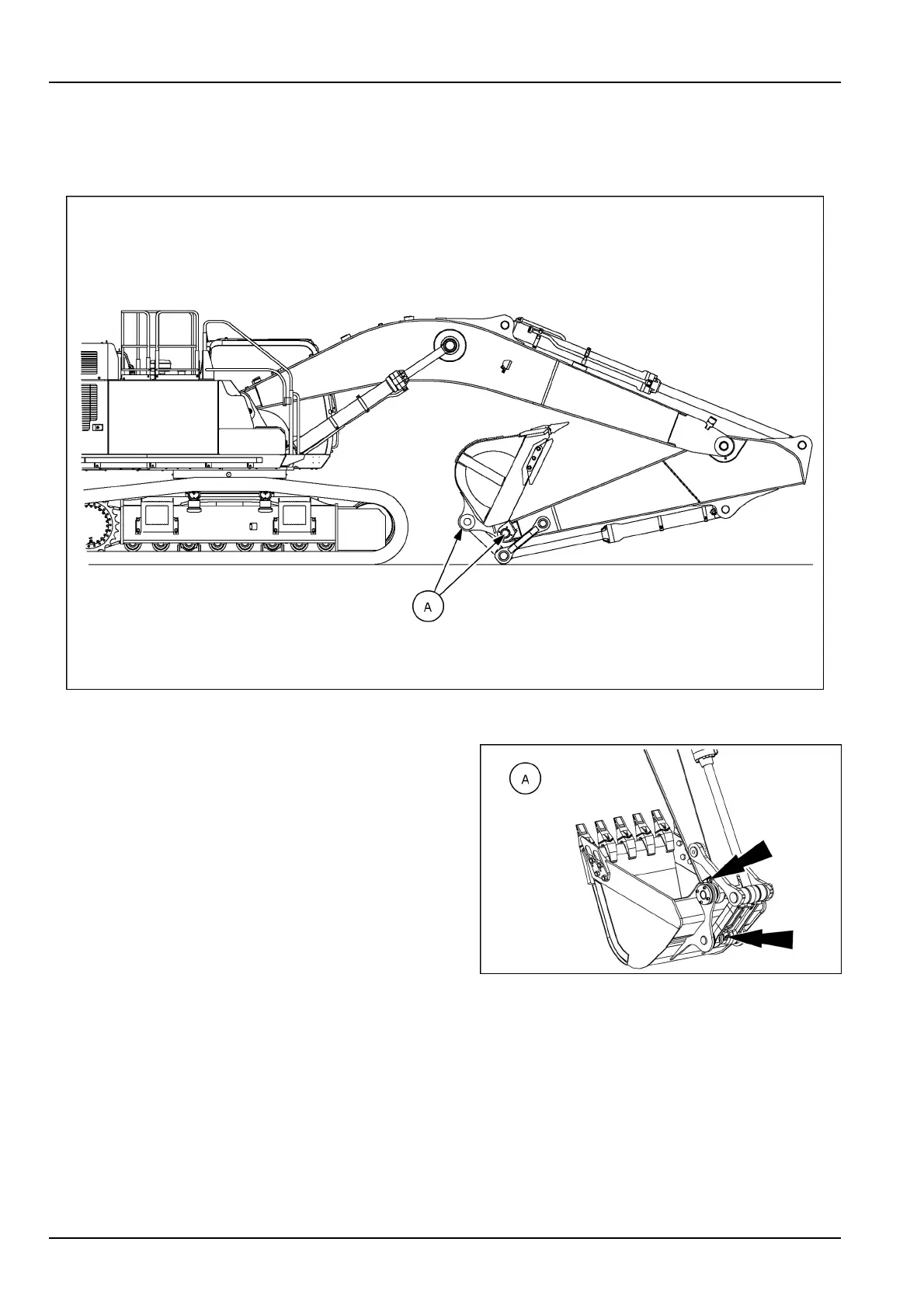

Greasepoints(Bucket)

Greasethebucketlinkageevery50h.

Lubricant:CASEAKCELA251HEPMULTI-PURPOSEGREASE.

SMIL15CEXY507FB1

NOTE:thebucketlinkageshallbelubricatedevery10hifnon-genuinegreaseisused.

Bucketlinkage:twogreasettings.

NOTICE:thebucketlinkageshallbelubricatedevery10h

ifthemachineisoperatedinwaterormud.

NOTICE:thebucketlinkageshallbelubricatedevery10h

ifanyattachmentotherthanabucketisused.

SMIL15CEX9112AA2

6-24
