6-MAINTENANCE

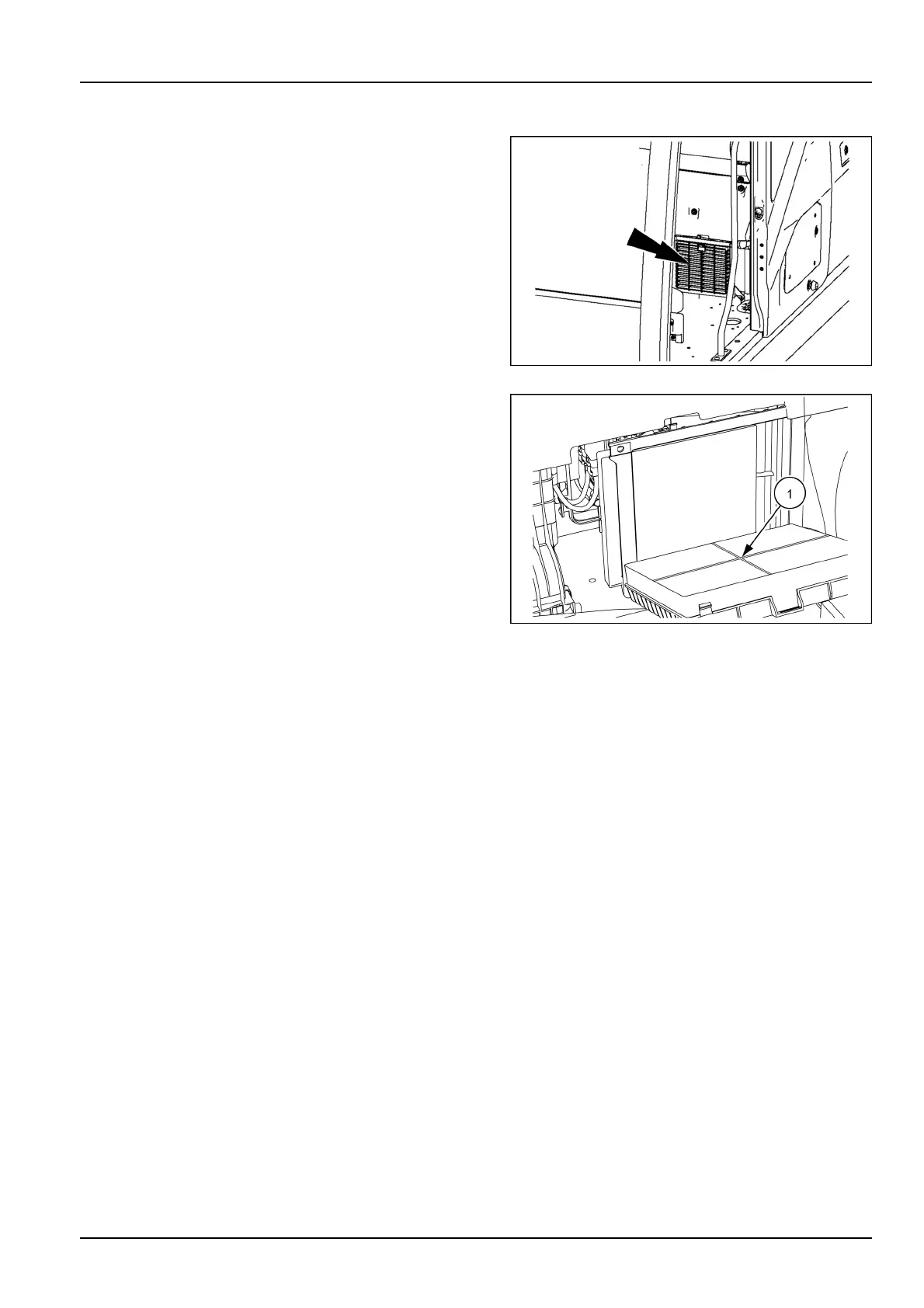

Aircirculationlter

1.Slidetheseatfullyforward.

2.Removetheprotectivegridlocatedbehindtheseat.

SMIL15CEXZ332AA4

3.Removetheaircirculationlter(1)fromtheprotective

gridandcleanitwithcompressedair.Ifthelteris

damaged,replaceit.

4.Inserttheaircirculationlterintotheprotectivegrid.

5.Installtheprotectivegrid.

SMIL14CEX2818AA5

6-23
