1-GENERALINFORMATION

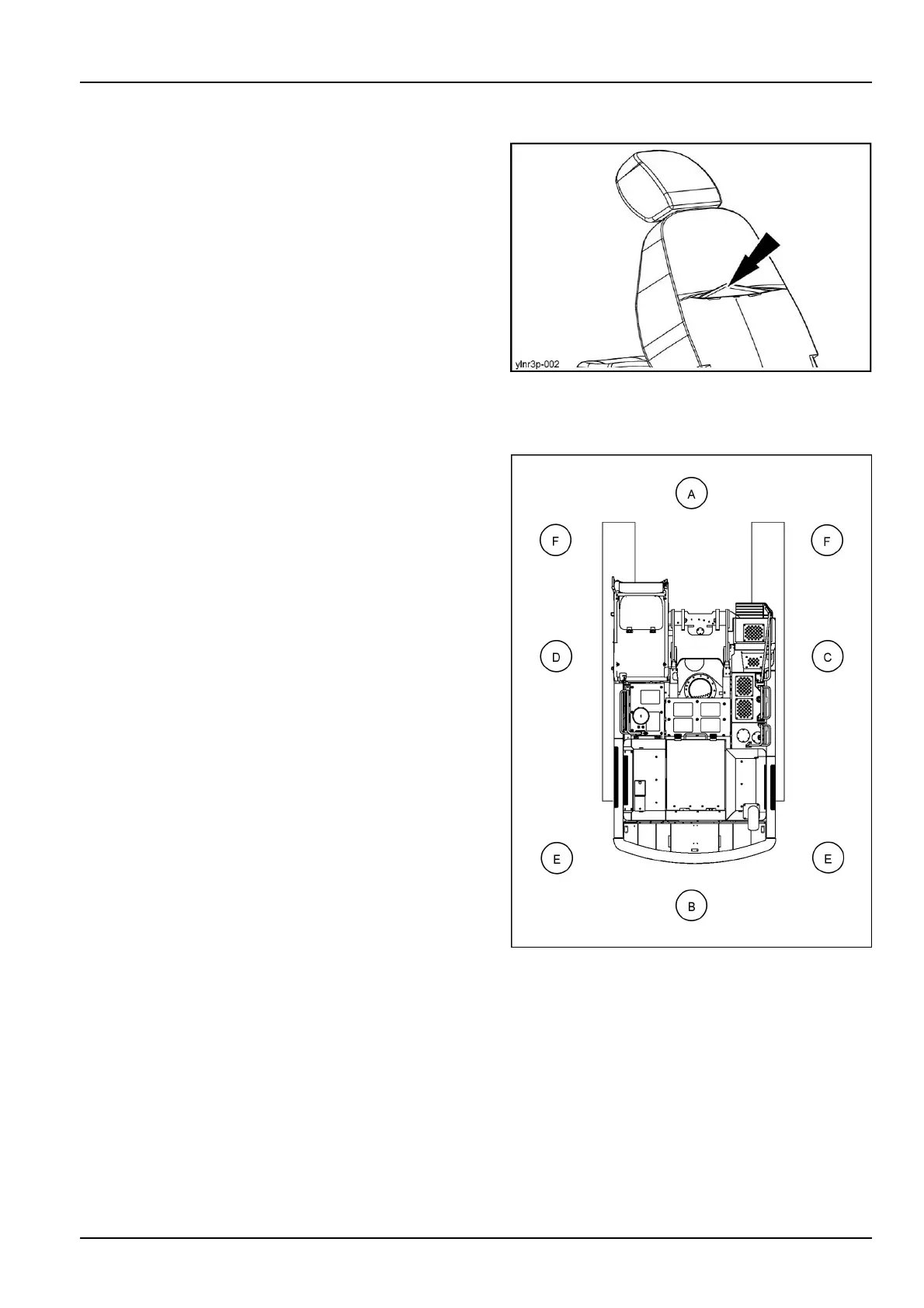

Operator'smanualstorageonthemachine
Alwayskeepthemanualinthelocationprovidedforthat
purpose(behindtheoperator’sseat).Makesureitisal-
wayscompleteandingoodcondition.Ifyouwishtoob-
tainextracopies,orcopiesinlanguagesotherthanthatof
thecountryofuse,consultyourCASECONSTRUCTION
Dealer.
YLNR3P-0021
Machineorientation
Theterms"Right-hand","Left-hand","Front"and"Rear"
areusedinthismanualtoindicatethesidesastheyare
seenfromtheoperator'sseatwhenthecabisoverthe
idlerwheels.
NOTE:theillustrationshowsthemachineinnormaltravel
position.Innormaltravelposition,thecabisoverthe
idlerwheels.Thetravelreductiongearsareattherear
oftheupperstructure.Thismanualusestheterms“right”,
“left”,“front”and“rear”toshowthesideviewedfromthe
operator'sseatwhenthecabislocatedabovetheidler
wheel.
A.Front
B.Rear
C.Right-handside
D.Left-handside
E.Travelmotor
F.Idlerwheel
SMIL15CEXY128BB1
1-9
