1-GENERALINFORMATION

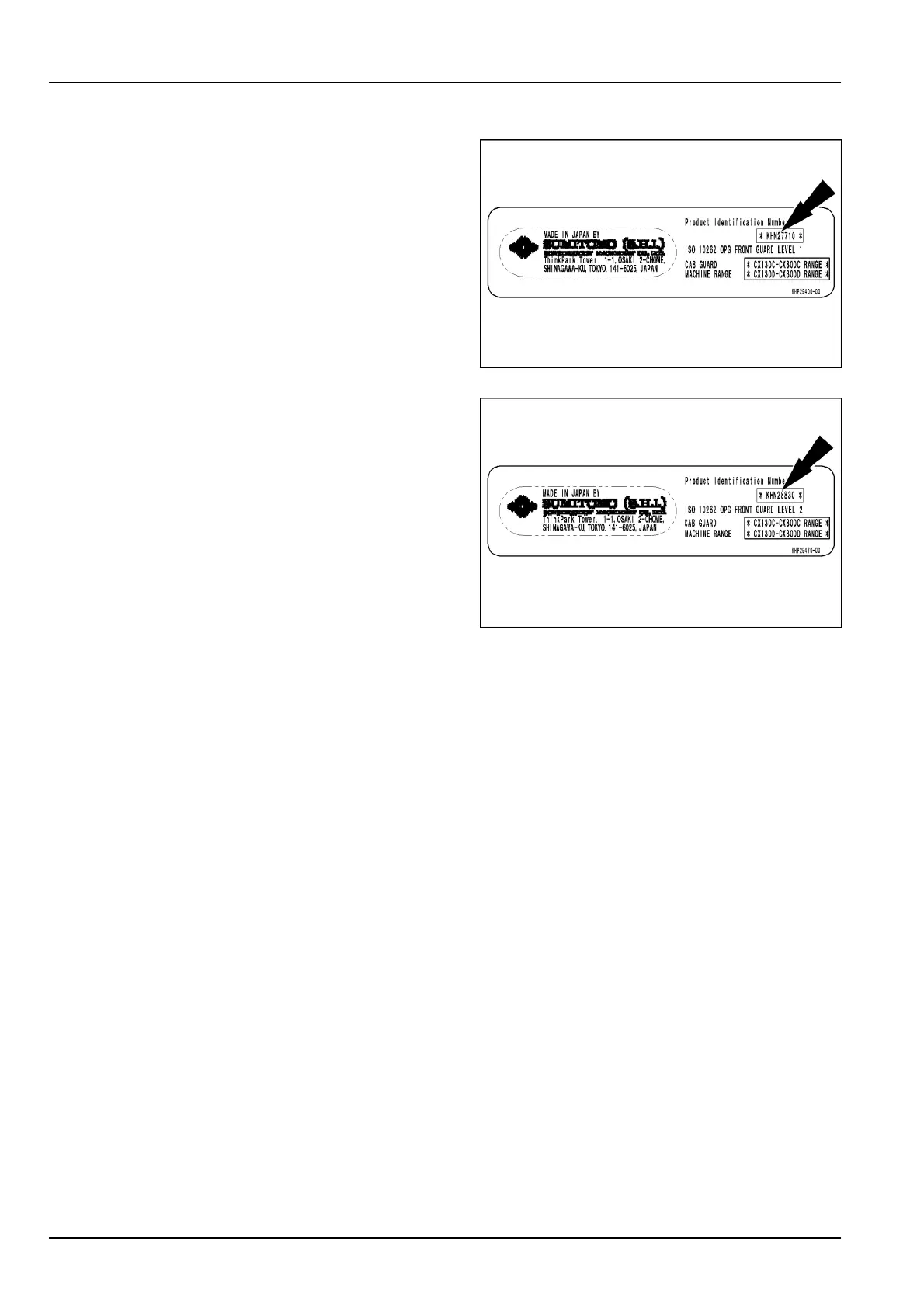

CabprotectionFGPS(FrontGuardProtectiveStructure)

ComplieswithISO10262level1(withoptionaldouble

framebolt-onfrontgrid).

Productidenticationnumber:

SMIL15CEX3852AA10

ComplieswithISO10262level2(withoptionalsingle

framebolt-onfrontgrid).

Productidenticationnumber:

SMIL15CEX3853AA11

Componentserialnumbers

Hydraulicpump:

Swingreductiongear:

Travelreductiongears:

Travelcontrolvalve:

Attachmentcontrolvalve:

Swingcontrolvalve:

1-8
