Fieldviewmonitor
TheCASECONSTRUCTIONFieldViewMonitor(FVM)isasystemthatensurepropervisibilityduringoperationby
displayingacomprehensivevisualizationoftheareaaroundthemachine.

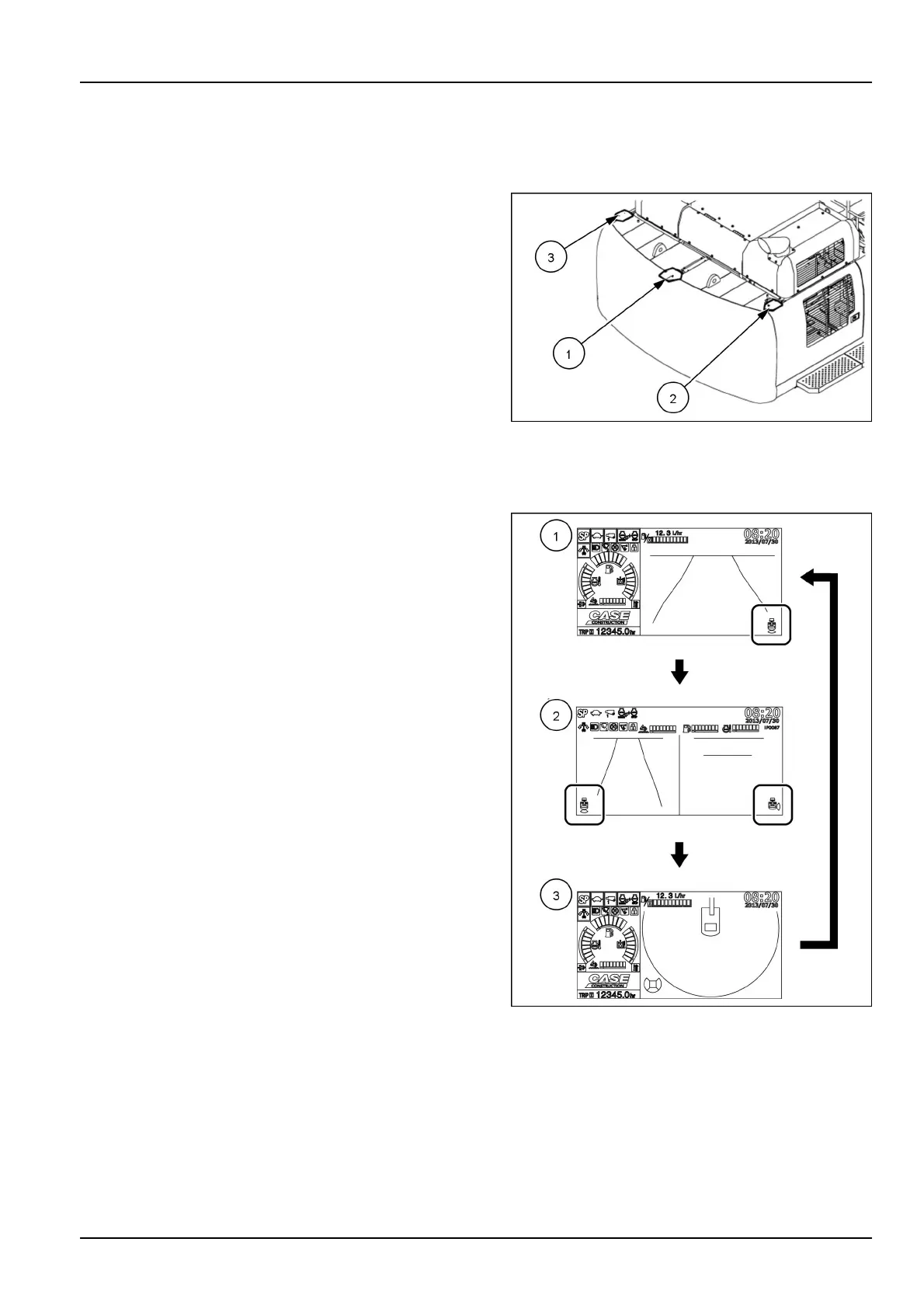

Thecomprehensivevisualizationisbasedonthecombi-
nationoftheviewsofthreeexternalcameras:arearcam-
era(1)installedonthecounterweight,aright-sidecam-
era(2)installedabovetherearright-handdoor,aleft-side
camera(3)installedabovetherearleft-handdoor.
NOTICE:Neveroperatethemachinewhileonlylooking
attheimagesonthedisplay.Makesuretocheckthe
areaaroundthemachinebythedirectvieworthrough
themirrors.
NOTICE:Ifanymud,raindrops,snow,etc.areadhered
tothecameralens,theimagesonthedisplayaredeteri-
orated.Wipeawaydirtwithawetandsoftcloth,andthen
wipeitwithadryandsoftcloth.Makesurenottoscratch
thecameras.
SMIL19CEX1990AA1
FVMmodeofthedisplay
TheFVMmodeofthedisplayisalternativetotheother
operatingmodes.Theoperatingmodeofthedisplay
cyclesasfollowseverytimethecameraviewselector
buttonispressed.
(1)Rearcameraviewoperatingmode.
(2)Rearcameraviewandright-sidecameraviewoper-
atingmode.
(3)FVMviewoperatingmode.
NOTICE:Duringmachineoperation,makesuretose-
lecteitheroneoperatingmodeofthedisplayinorderto
ensurepropervisibilityaroundthemachine.Ifthedis-
playisswitchedtotheuserinformationmodeduringma-
chineoperation,thewarningmessageSELECTCAMERA
SCREENDURINGOPERATIONwillappearonthetopof
thedisplay.
SMIL17CEX3235BA2
