IntheFVMmode,thehourmeter,thegauges,theicons,andthewarningsrelatedtothefunctioningofthemachineare
shownontheleftsideofthedisplay.Thefueleconomygauge,theclock,andthemessagesrelatedtothefunctioning
ofthemachineareshownonthetopofthedisplay.
TheFVMvisualizationiscenteredrightabovethemachine,andprovidesabird'seyetypeviewoftheareaaround
themachinealongwithapanoramicviewofthesurroundings.

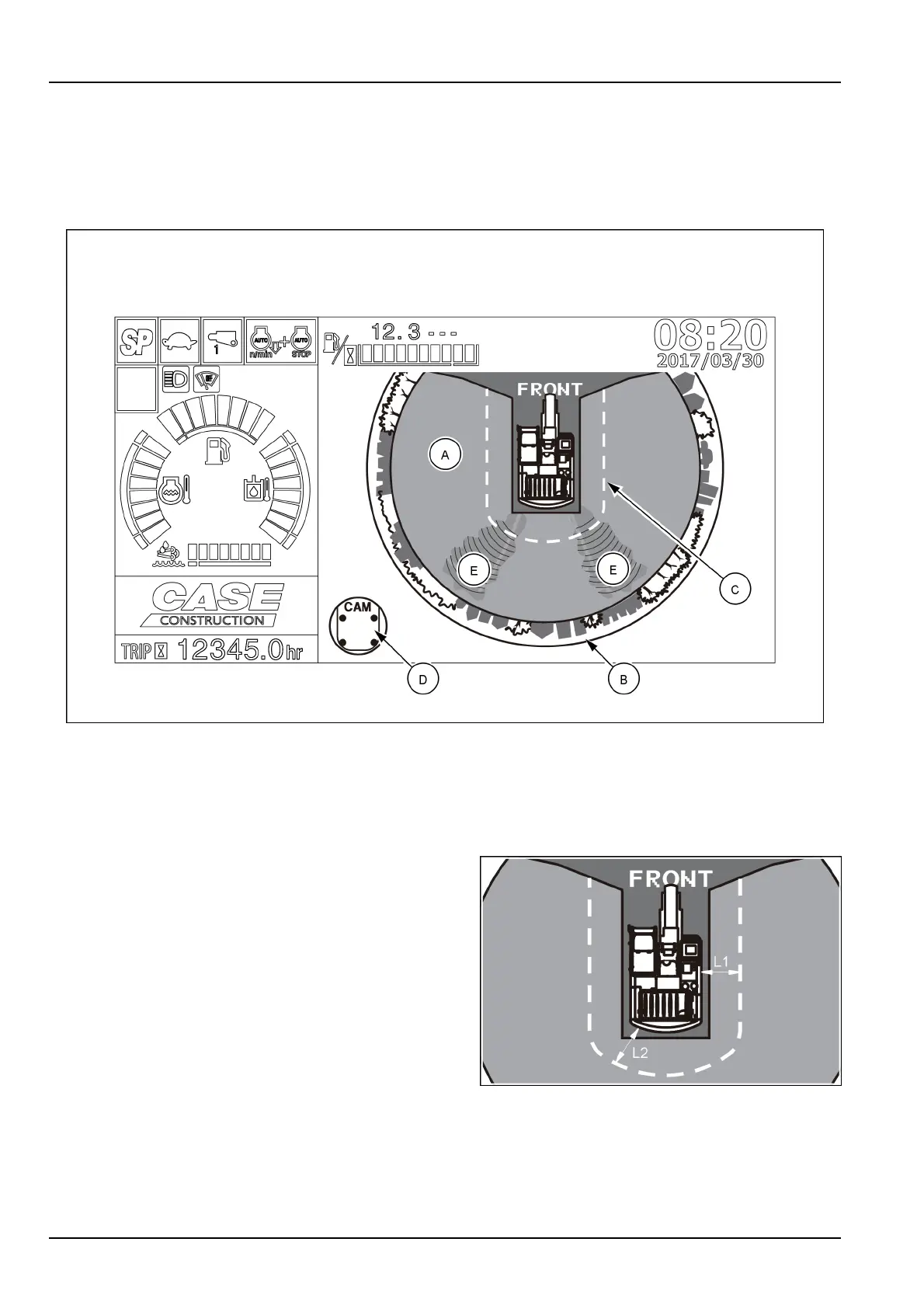

SMIL17CEX1336FA3
A.Aroundviewarea(lightgraybackground)
B.Panoramicviewstrip
C.MachinePeripheryGuideline
D.Camerapositionmonitor
NOTE:Thezones(E)wheretheviewoftherearcameraiscombinedwiththeviewsofthesidecamerasareaffected
byaslightdistortionoftheimageduetothematchingprocessofthesingleviews.
Aguidelineisdisplayedonthearoundviewareatoseta
referencefortheperipheryofthemachine.
Thedistancefromthesideoftheupperframeuptothe
guideline(L1)is2.5m(98.4in).
Thedistancefromthecounterweightuptotheguideline
(L2)is2.5m(98.4in).
NOTICE:TheFVMsystemdoesnotensurevisibilityon
theclosestareaaroundthemachine.Approximately
30cm(11.8in)ofthemachineperipheryisnotcovered
bythecameras(darkgreybackground).Makesureto
checktheclosestareaaroundthemachinebythedirect
vieworthroughthemirrors.
