Case CX490D - Hydraulic Tank Breather

6-MAINTENANCE
Hydraulictankbreather
Replacethehydraulictankbreatherevery1000h

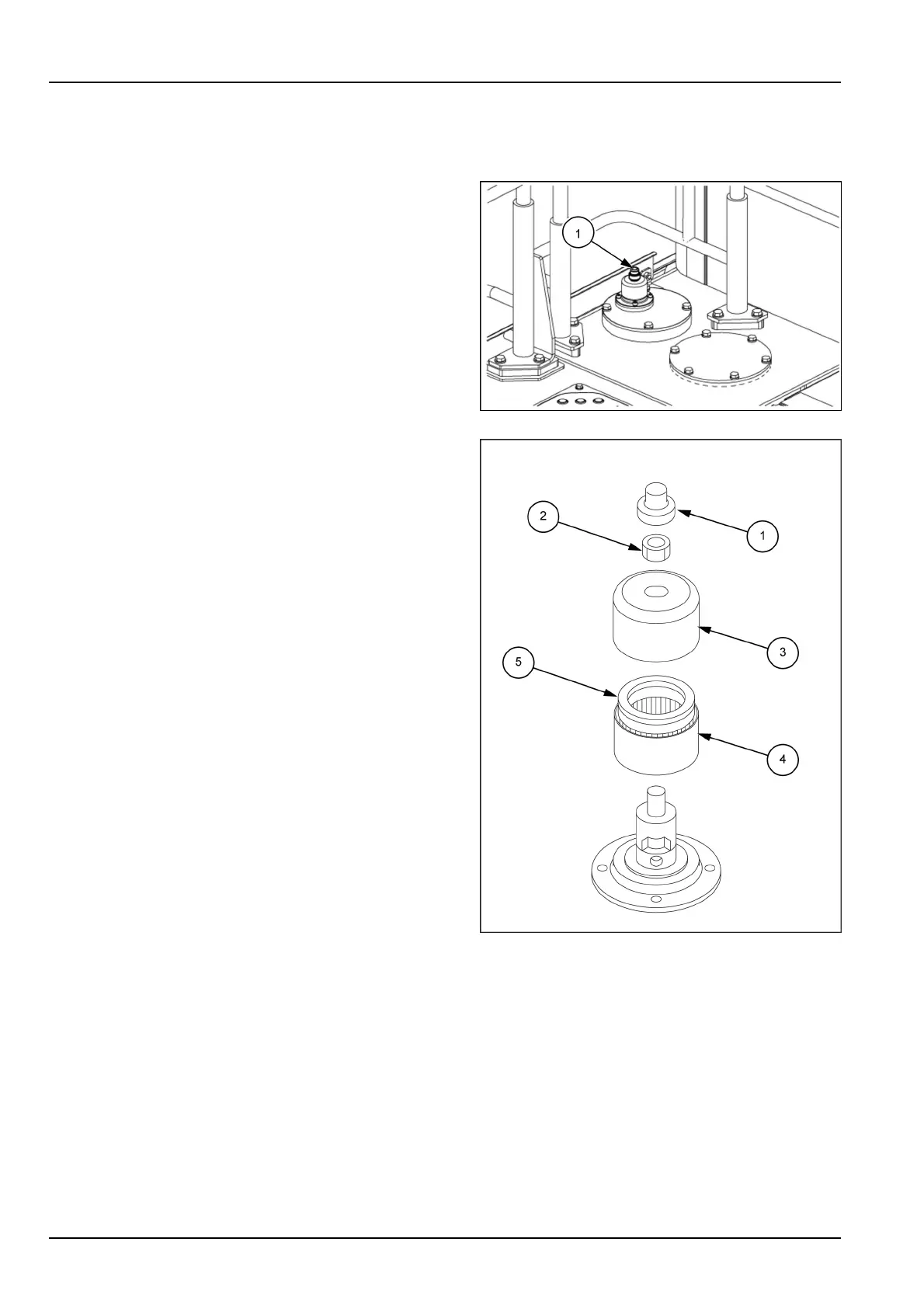

1.Keeppressedthebutton(1)onthetopofthebreather
toreleaseallthepressureinthehydraulictank.
2.Cleanthetopsurfaceofthehydraulictank.
SMIL19CEX0597AA1
3.Removethebutton(1)fromthebreather.
4.Removethenut(2)andthecover(3).
5.Removeanddiscardtheusedlterelement(4).
6.Attachanewelement(4)withtheseal(5)facingup.
7.Attachthecover(3)togetherwiththenut(2).
8.Attachthebutton(1).
SMIL14CEX2782BB2
6-50
