5.Unlockthequick-connectclips(4),andpullupthe
rightanti-dustnet(5).
6.Unlockthequick-connectclips(6),andpullupthe
leftanti-dustnet(7).
7.Usecompressedairtoblowawaymudordirt
cloggedinthenetsandtheradiatorn.Steamor
compressedwatermaybeusedinsteadofcom-
pressedair.
NOTICE:Applyhigh-pressurevehicle-washsteamfroma
sufcientdistanceaway.Ifthesteamoutletistooclose,
theradiatornmaydeform.
NOTICE:Inpresenceofgreasyoroilydust,useper-
chlorethylene.Useoftrichloroethyleneisstrictlyforbidden.

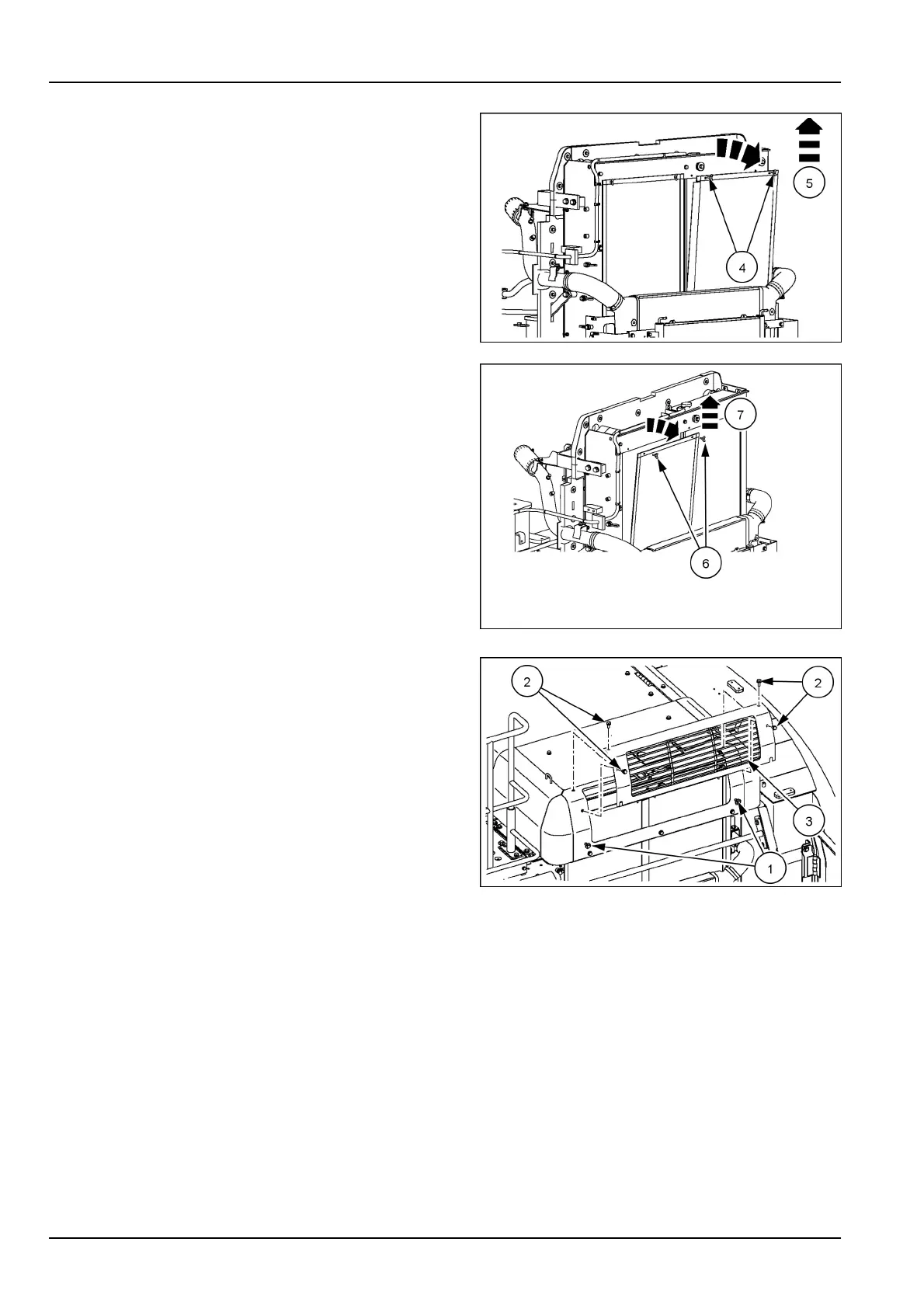

SMIL15CEXY529AA3
SMIL15CEXY530AB4
8.Carefullyinserttheleftanti-dustnet(7)intothe
mountingbase.Lockthequickconnectclips(6).
9.Carefullyinserttherightanti-dustnet(5)intothe
mountingbase.Lockthequickconnectclips(4).
10.Installtheairvent(3)andtightenthebolts(2).
11.Tightenthebolts(1).
12.Closetherearleft-handdoor.
SMIL15CEXY531AB5
