3-CONTROLSANDINSTRUMENTS

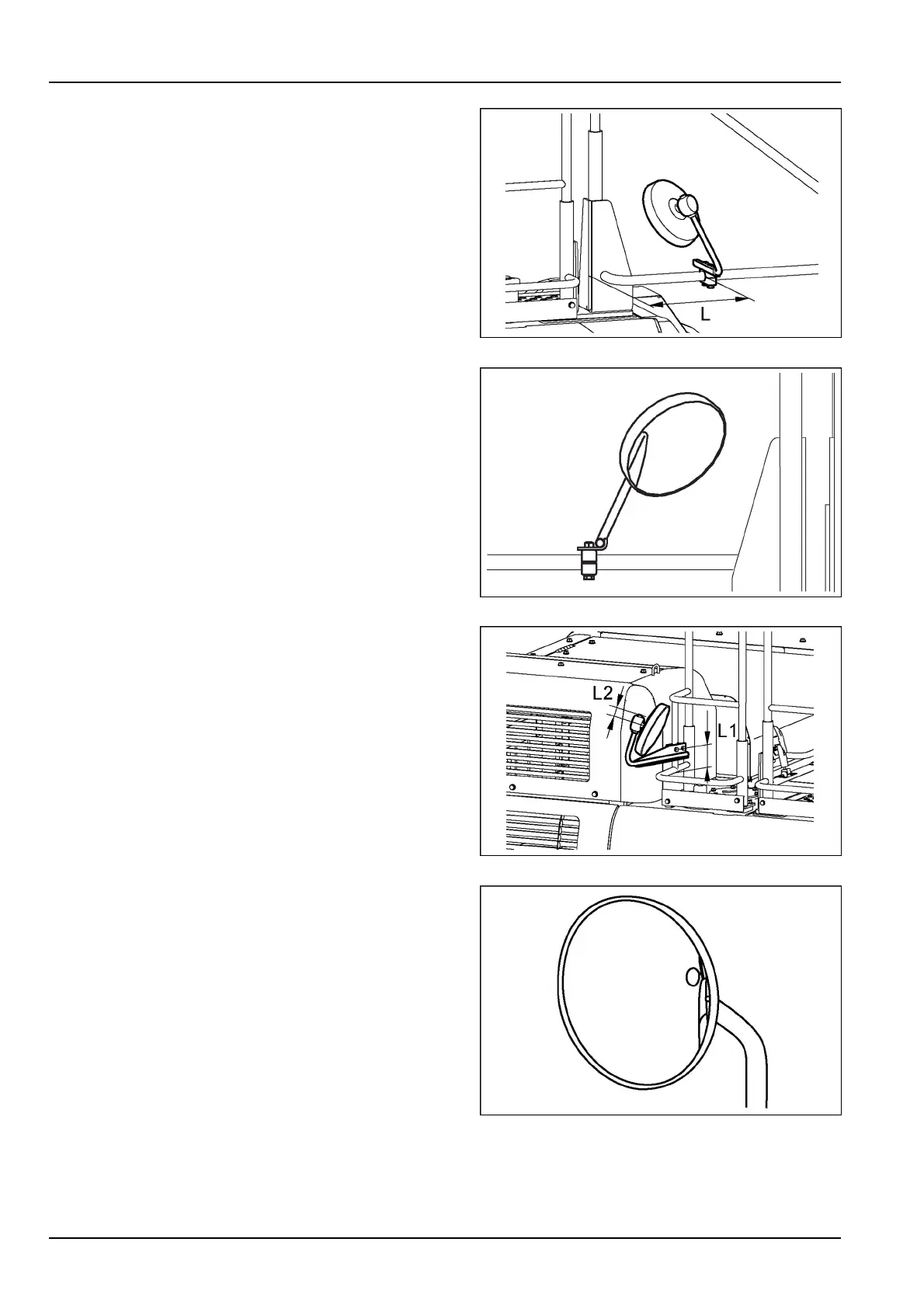

Right-frontmirror(B)

Themirrorshallbeinstalledasshowninthepicture.

Thedimension(L)is411mm(16.2in).

SMIL15CEXY169AA5

Themirrorshallbepositionedsothatthesideontherear

rightofthemachineshallbevisible.

NOTICE:Afterinstallingandpositioningallthemirrors,

thevisibilityaroundthemachineshallbecheckedfromthe

operator'sseat.Settheseatintothedesiredposition,and

makesuretoconrmallthereferenceviewsinthemirrors.

Ifnecessary,netunethepositioningofthemirrorsin

ordertoensurepropervisibilityaroundthemachine.

SMIL15CEXY170AA6

Right-centermirror(C)

Themirrorshallbeinstalledasshowninthepicture.

Thedimension(L1)is100mm(3.9in).

Thedimension(L2)is42mm(1.7in).

SMIL15CEXY171AA7

Themirrorshallbepositionedsothatthesideonthefront
