6-MAINTENANCE

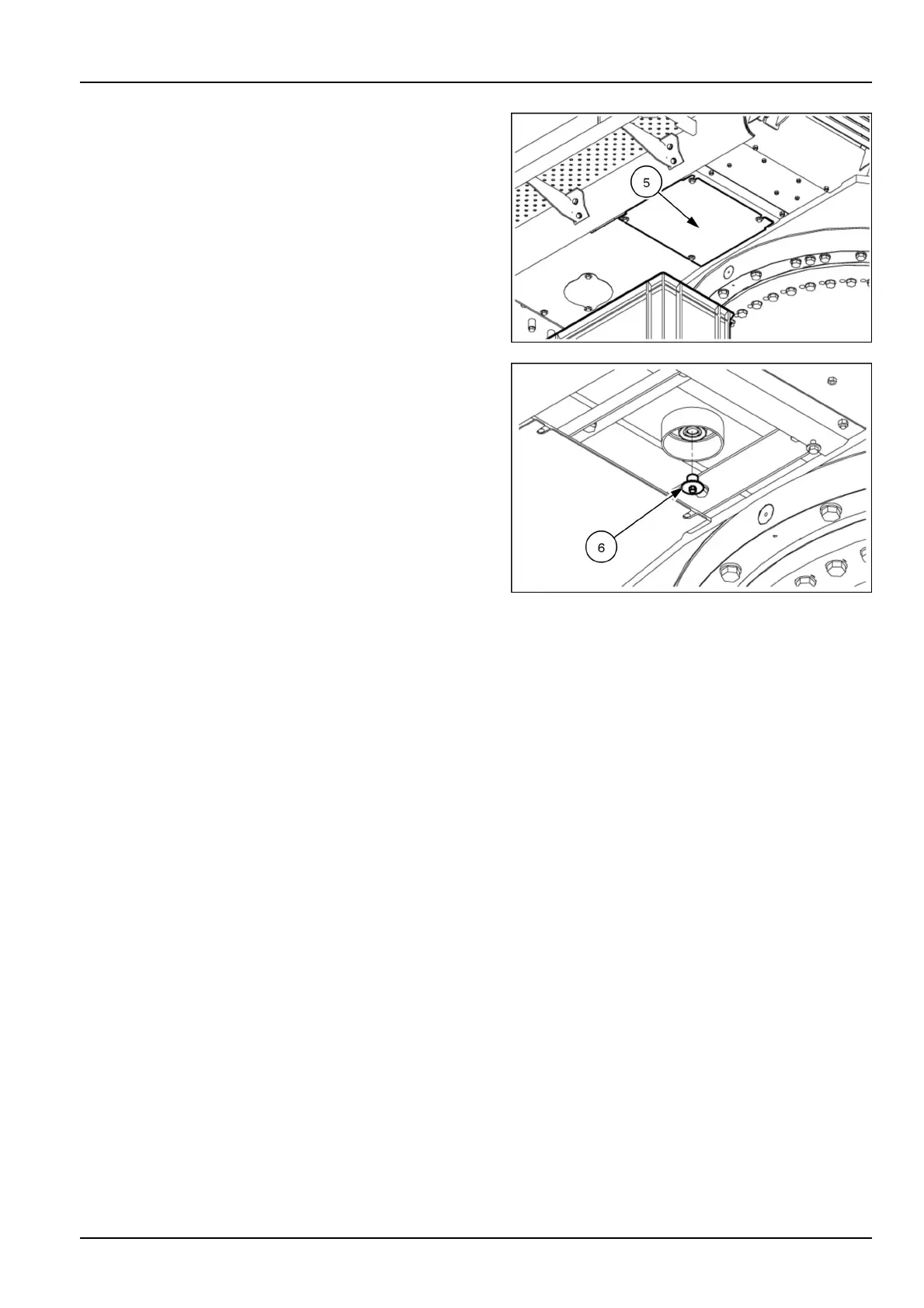

5.Removethelowerpanel(5)belowtheDEF/ADBLUE®
tanktoaccessthedrainplug(6).
6.OpenthedrainplugtodrainDEF/ADBLUE®.
NOTICE:thedrainedDEF/ADBLUE®mustbedisposedac-
cordingtothelocalRegulationsforDEF/ADBLUE®.
7.Closethedrainplug(6),andinstallthelowerpanel(5)
belowtheDEF/ADBLUE®tank.
8.FillthetankwithDEF/ADBLUE®thatconformstothe
requiredspecication.NeverrellDEF/ADBLUE®over
theF(upperlimit)markonthelevelgauge.
9.Putthecap(4)onthellerneck.Turnthecapclockwise
toclosethellerneck.
10.WipeoffthespilledDEF/ADBLUE®withacloth,and
thenrinsetheareawithfreshwater.
11.Closethetankcover(3).
SMIL19CEX2002AA3
SMIL19CEX0554AA4
6-87
