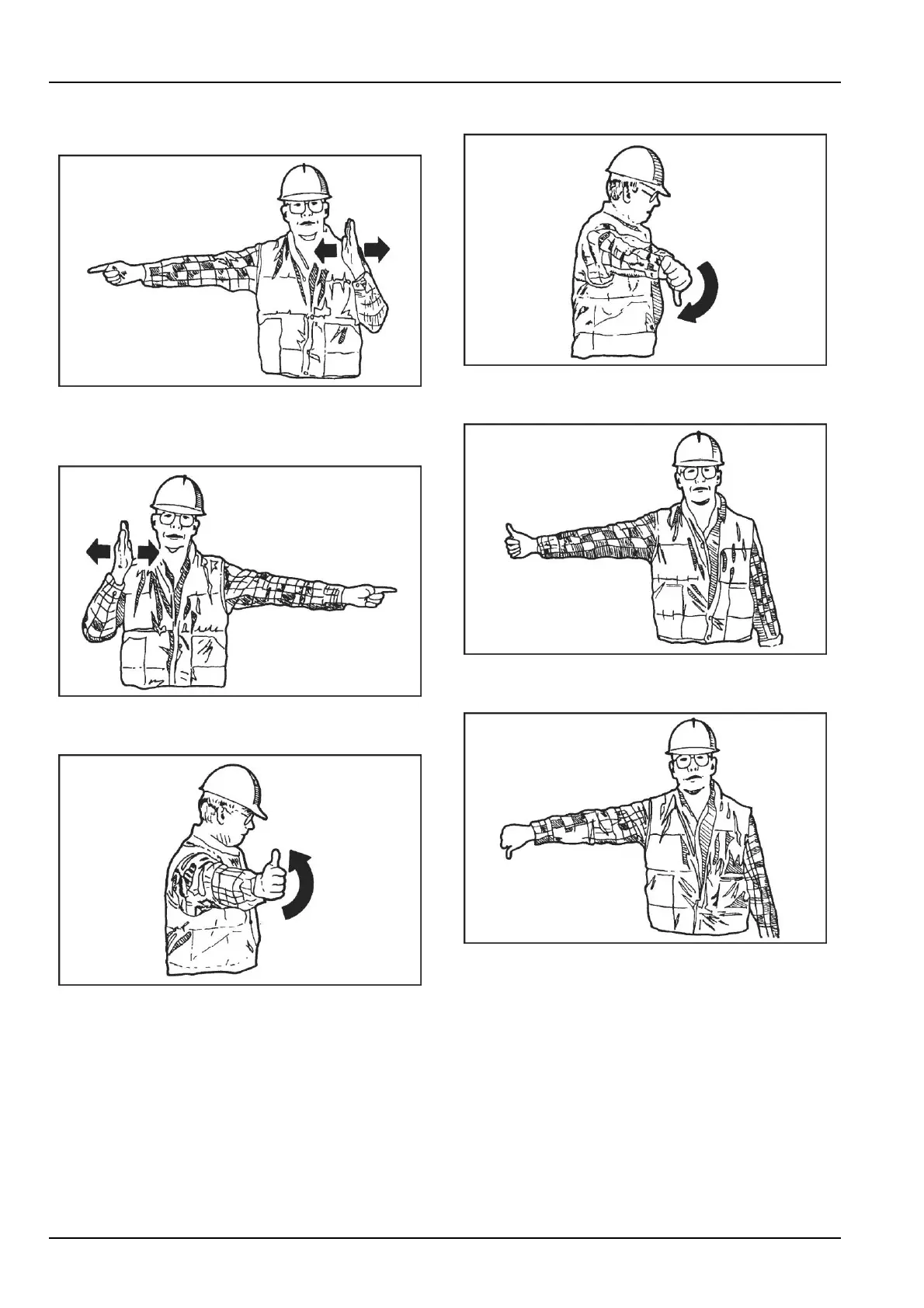

2-SAFETYINFORMATION

Turnmachineleft(swingloadleft)

Tostopmovement,stopmovinghandandclenchst.

PDE0008ATBP113

Turnmachineright(swingloadright)

Tostopmovement,stopmovinghandandclenchst.

PDE0008TBP114

Raisetool

PDE0009ATBP115

Lowertool

PDE0009TBP116

Liftboom

PDE0010ATBP117

Lowerboom

PDE0010TBP118

2-14
