2-SAFETYINFORMATION
Decalplacementdiagrams
(1)T ableofsafetyprecautions
Partnumber:KHP36590
KHP365903

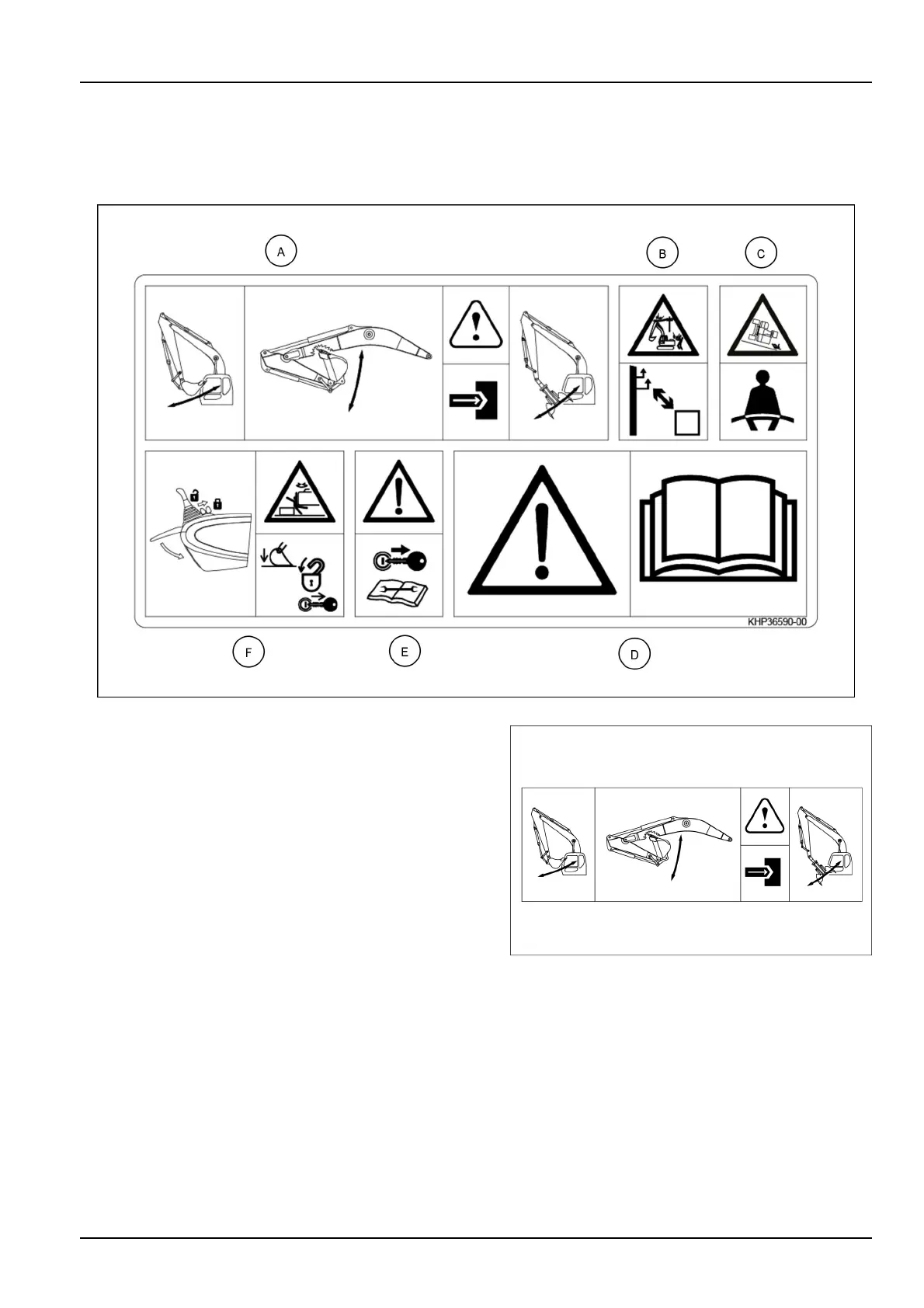

(1A)Interferencewithattachments
Theendattachmentusedformachineoperation(e.g.
bucket,hydraulicbreaker,clamshell..)mayhitthecab
and/ortheboomdependinguponthelengthofthearm,
thesizeofthebucketortheinstallationofaquickcoupler.
Alwayschecktheoperatingrangeofthemachinewiththe
specicattachmentinuse.Avoidabruptoperationinor-
dertokeepproperclearancebetweentheattachmentand
thecaborboomorothersignicantpartsofthemachine.
Collisionsbetweenattachmentandcaborboomorother
signicantpartsofthemachinecancauseseriousdam-
ages.
