3-CONTROLSANDINSTRUMENTS

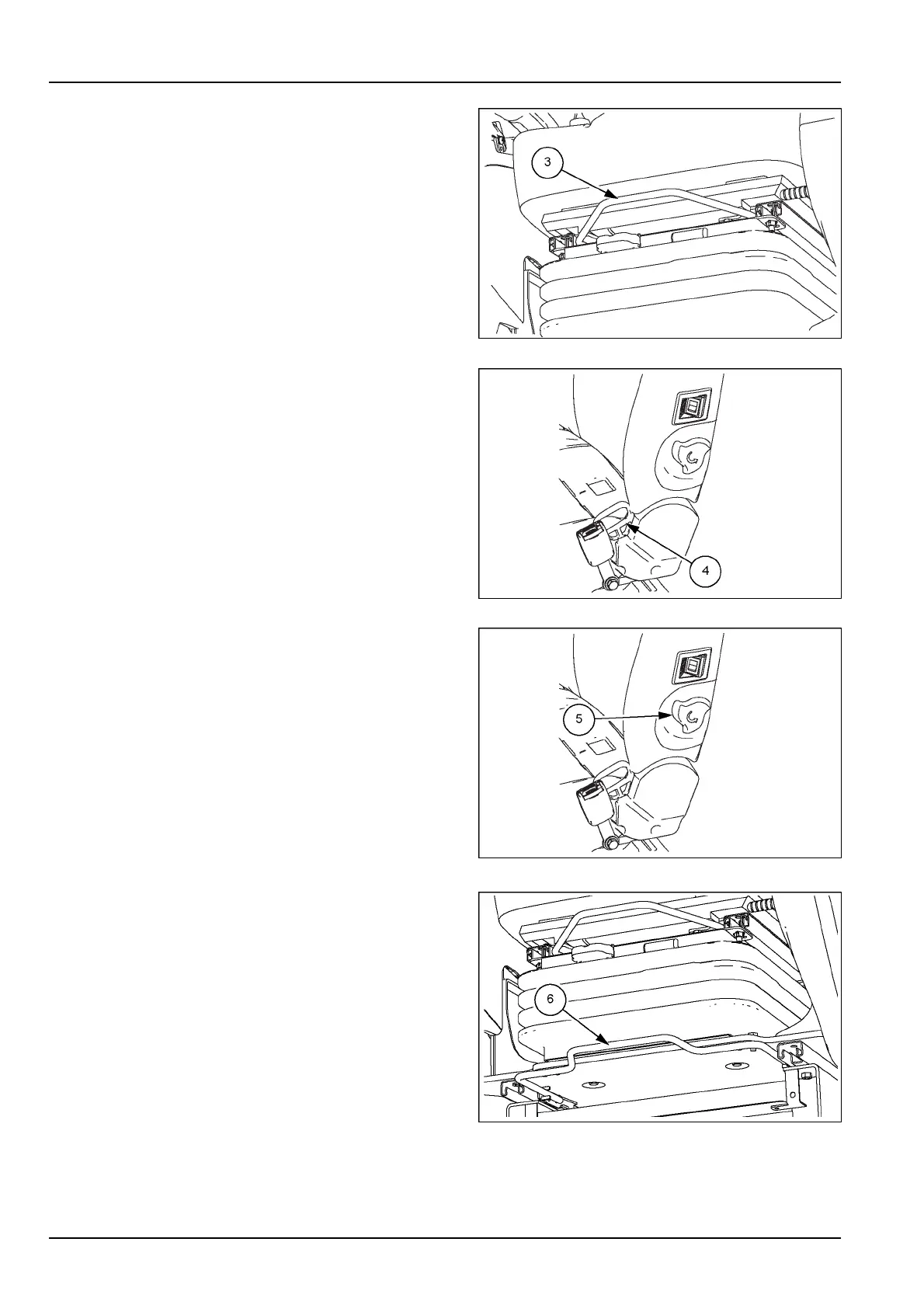

Foreandaftadjustment
•
Holdthecontrol(3)intheraisedposition.
•
Slidetheseattotherequiredposition.
•
Releasethecontrol(3).
SMIL14CEX1656AB3
Seatbackangleadjustment
•
Holdthelever(4)intheraisedposition.
•
Movewiththeseat-backtothedesiredposition.
•
Releasethelever(4).
SMIL14CEX1657AB4
Lumbarsupportadjustment
•
Turnthedial(5)toadjustthebulgeofthelumbararea
infourlevels.
SMIL14CEX1658AB5
Seatandcontrolarmassemblyforeandaft
adjustment
•
Pullthecontrol(6)upwards.
•
Slidetheseatandcontrolarmassemblytothedesired
position.
•
Releasethecontrol(6).
SMIL14CEX1659AB6
3-4
