3-CONTROLSANDINSTRUMENTS

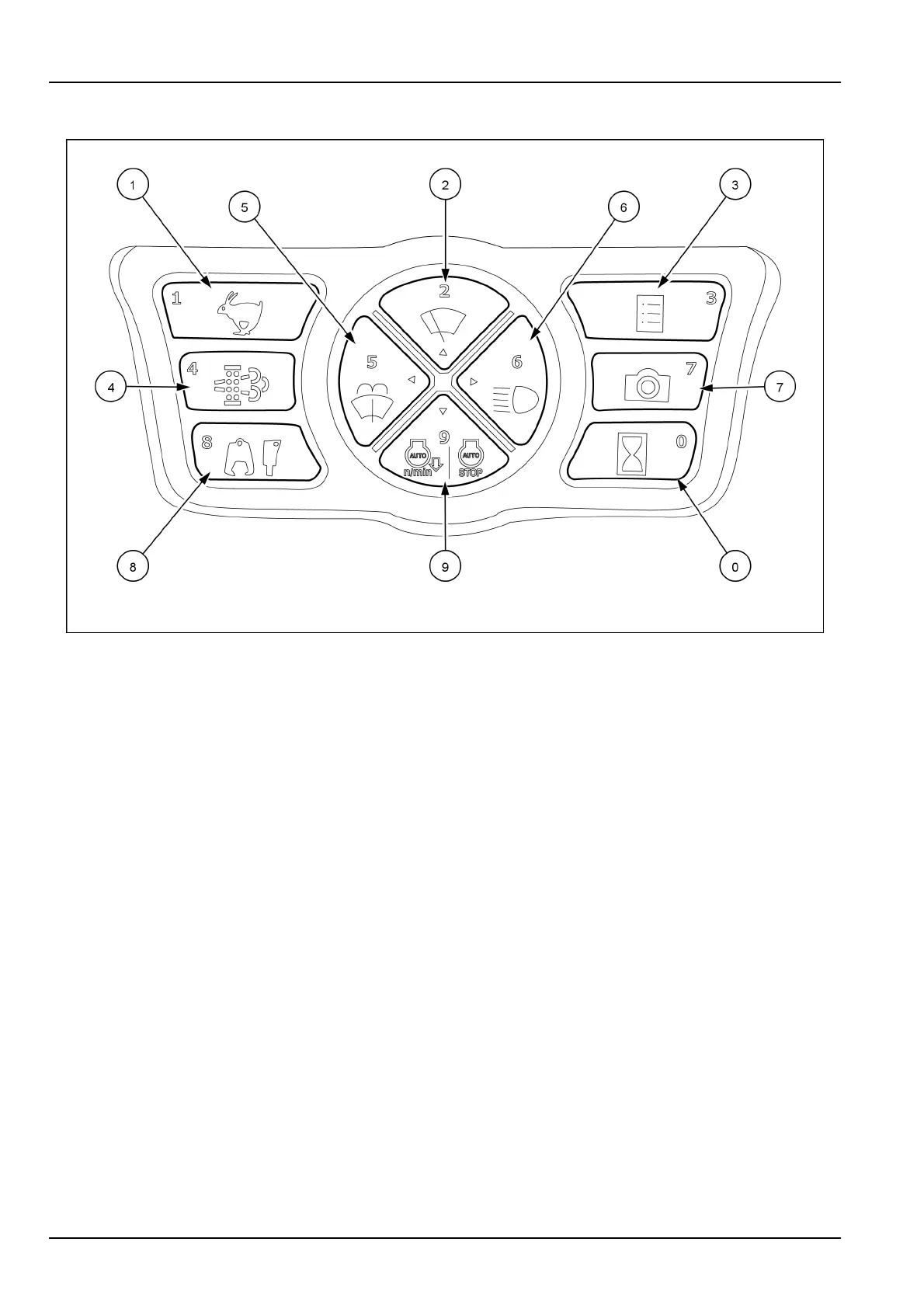

Controlbuttons

SMIL15CEXY842FA2

1.Travelmodeselectorbutton

2.Wiperbutton

3.Displaymodeselectorbutton

4.SCRCLEANINGbutton

5.Windshieldwasherbutton

6.Workinglightsbutton

7.Cameraviewselectorbutton

8.Attachmentselectorbutton

9.Idlemodebutton

0.Hourmeterbutton

3-26
