3-CONTROLSANDINSTRUMENTS

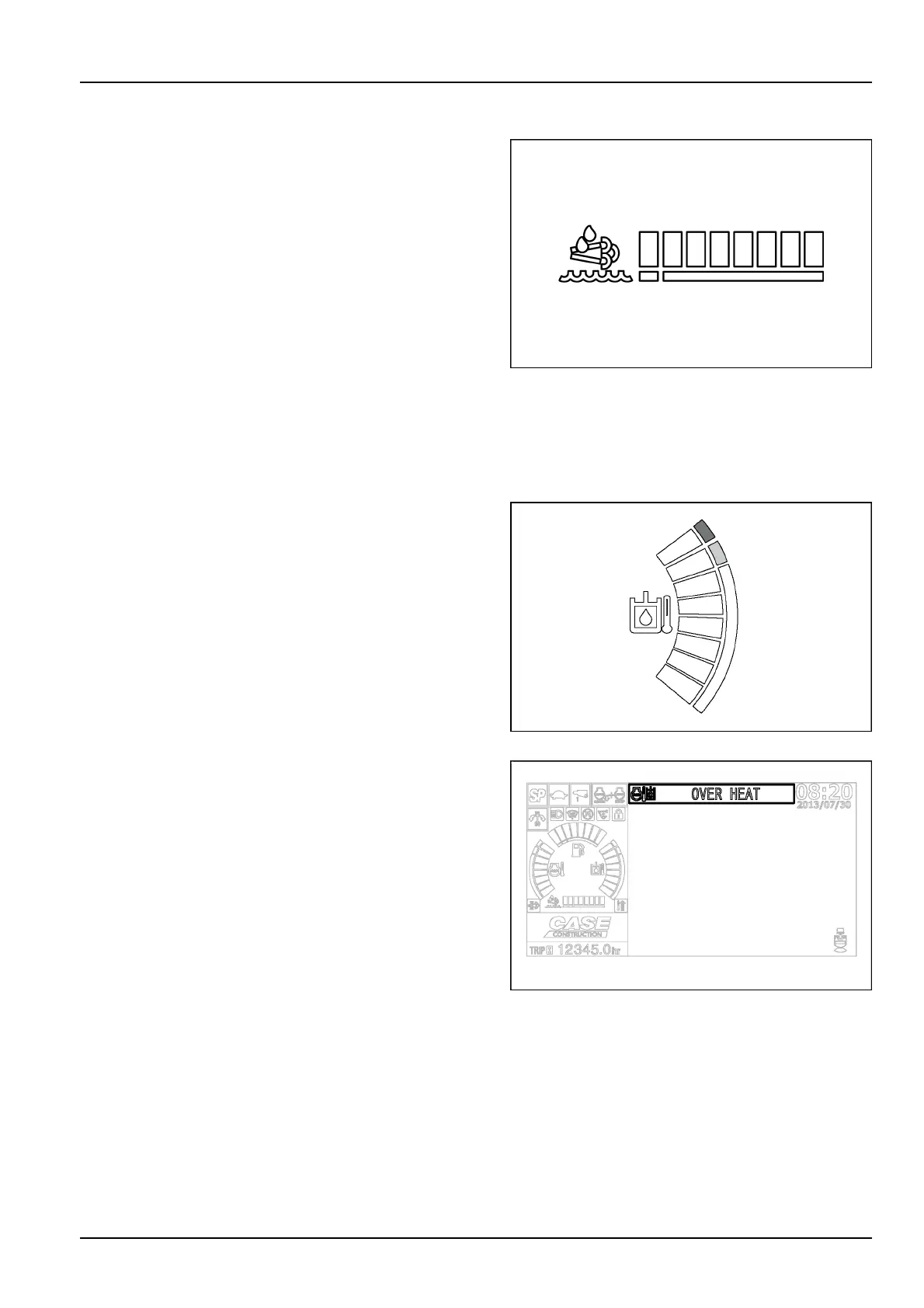

DEF/ADBLUE®gauge
Thenumberoflitsegmentsindicatestheremaining
levelofDEF/ADBLUE®.Ifallsegmentsarelit,the
DEF/ADBLUE®tankisfull.
SMIL16CEX1213AA24
Hydraulicoiltemperaturegauge
NOTE:IfthedisplayisseteithertotherearcameraviewoperatingmodeortotheFieldViewMonitorbird'seyeview
operatingmode,thehydraulicoiltemperaturegaugeisshownontheleftsideinformationband.Ifthedisplayisset
totherearandright-sidecameraviewoperatingmode,thehydraulicoiltemperaturegaugeisnotshown.
Thenumberoflitsegmentsindicatesthetemperatureof
thehydraulicoil.Thegreaterthenumberoflitsegments,
thehigherthehydraulicoiltemperatureis.
SMIL14CEX1716AA25
Ifallsegmentsarelit,analarmsoundsandtheOVER
HEATmessageisdisplayed.
IftheOVERHEATmessageappears,lowertheengine
speed.Ifthetemperaturedoesnotdrop,stoptheengine,
removethestarterkey,andcalltheCASECONSTRUC-
TIONdealerformachineinspection.
SMIL14CEX1715AA26
3-41
