CESAB S210 User Manual

© Cesab 8 – 58 T Code(s): 841, 842, 843
Repair manual: Troubleshooting Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

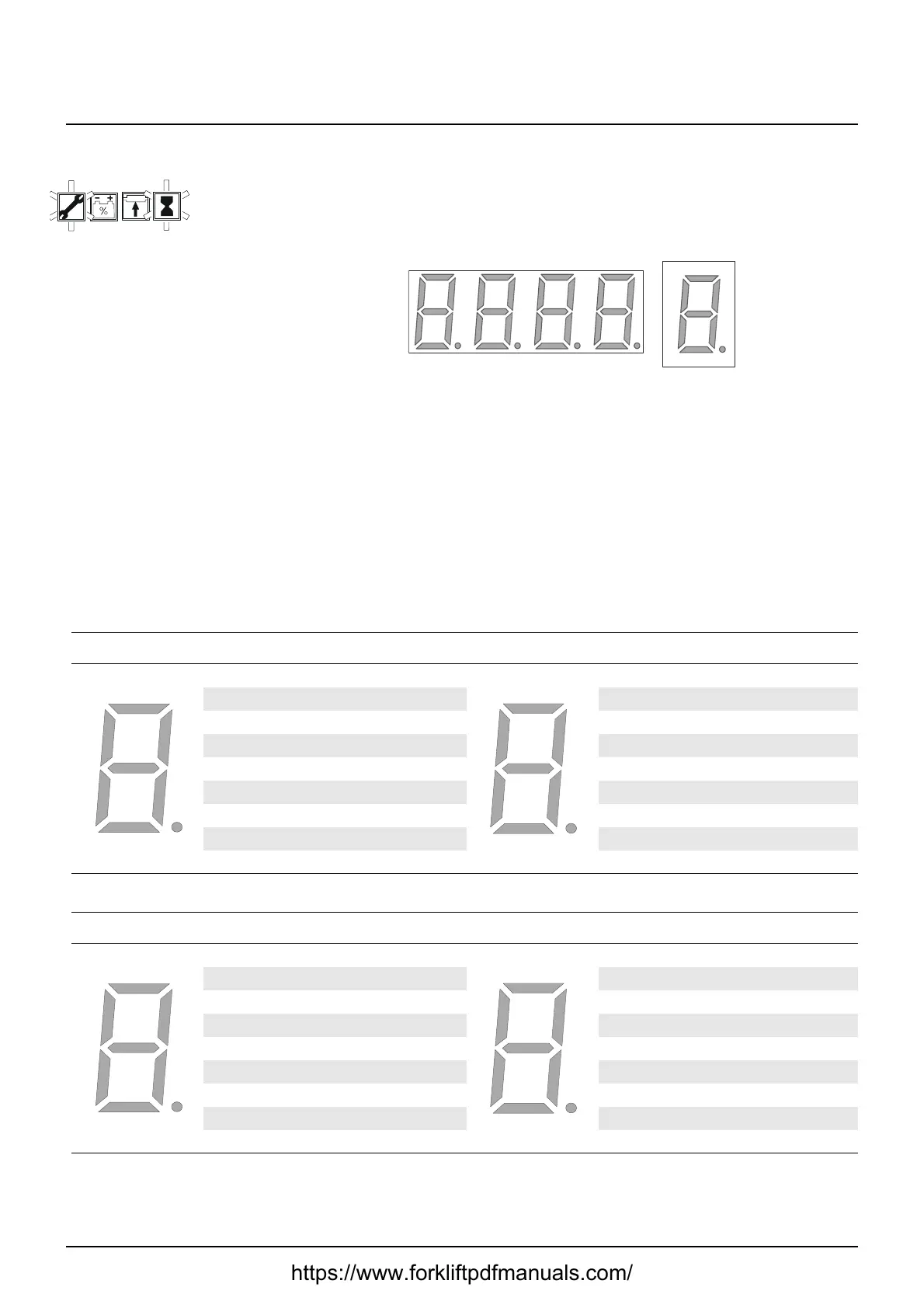

8.10.3 Test mode “12” – Expansion unit SEU (option).
In this mode, the digital inputs and outputs are tested by checking specific
segments on the display according to the following tables.
Position:
1. SEU 0 inputs
2. SEU 0 outputs
3. SEU 1 inputs
4. SEU 1 outputs
1 – 8: Reference to segment
Digit 1, SEU 0 digital in Digit 2, SEU 0 digital out
Segment Description Segment Description
1 In 1 1 Out 1
2 In 2 2 Out 2
3 In 3 3 Out 3
4 In 4 4 Out 4
5 In 5 5
6 In 6 6
7 In 7 7
8 In 8 8
Digit 3, SEU 1 digital in Digit 4, SEU 1 digital out
Segment Description Segment Description
1 In 1 1 Out 1
2 In 2 2 Out 2
3 In 3 3 Out 3
4 In 4 4 Out 4
5 In 5 5
6 In 6 6
7 In 7 7
8 In 8 8
1 2 3 4
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
