© Cesab 13 – 17 T Code(s): 841, 842, 843
Repair manual: Tiller arm 4000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
13.5.12 Replacing the stomach button
• Remove the upper cover Page 13–8

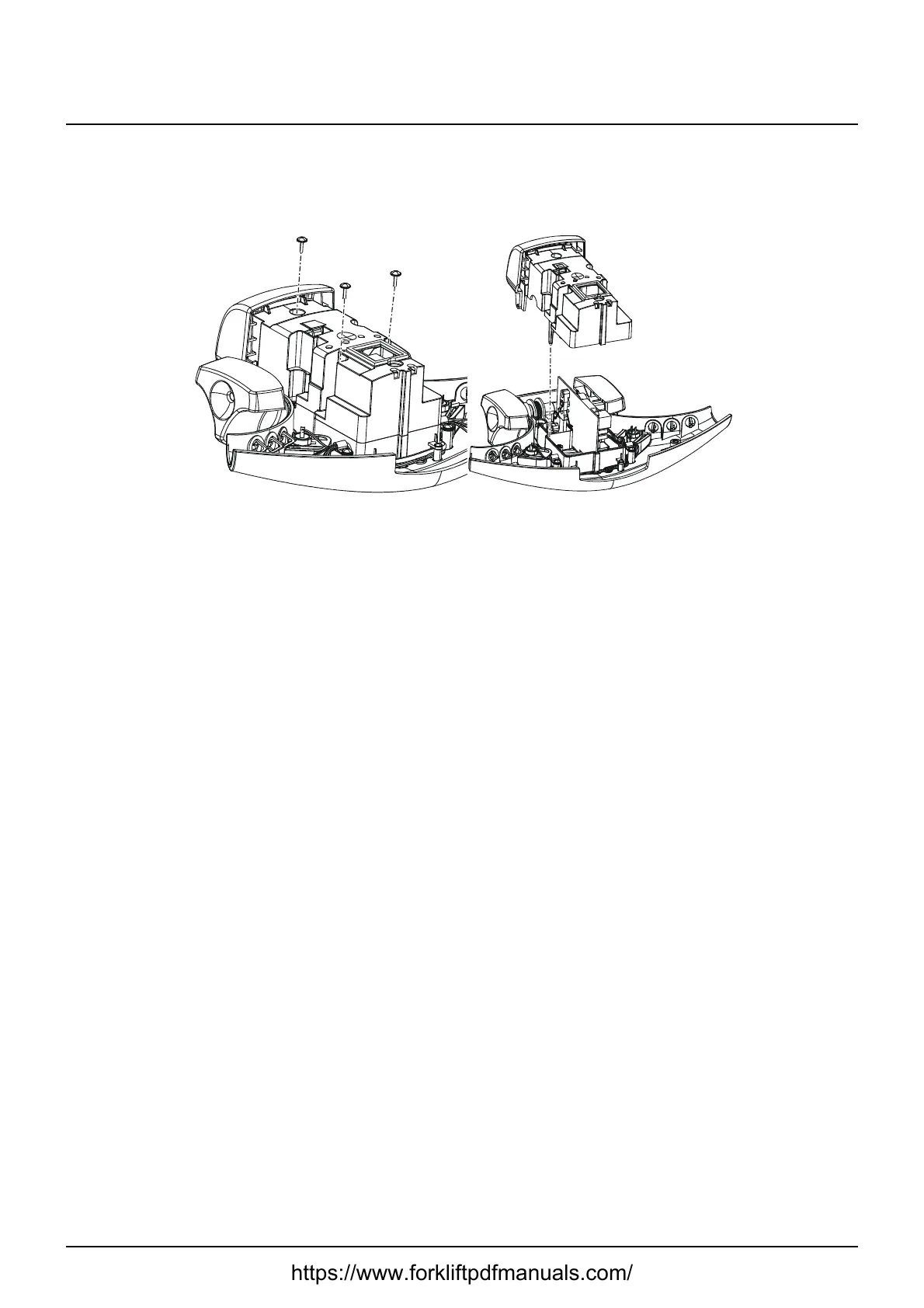

1: Remove the screws holding the cover/stomach button over the logic card
and carefully lift away the cover.
Hint: Hold a finger between the cover and the shaft for the speed control
buttons to prevent the speed control assembly from falling down.
Note: The stomach button must not be replaced by itself, the complete cover
and button must be replaced as a unit.
