Repair manual: Mast C7000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D

Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

Bolt rotation

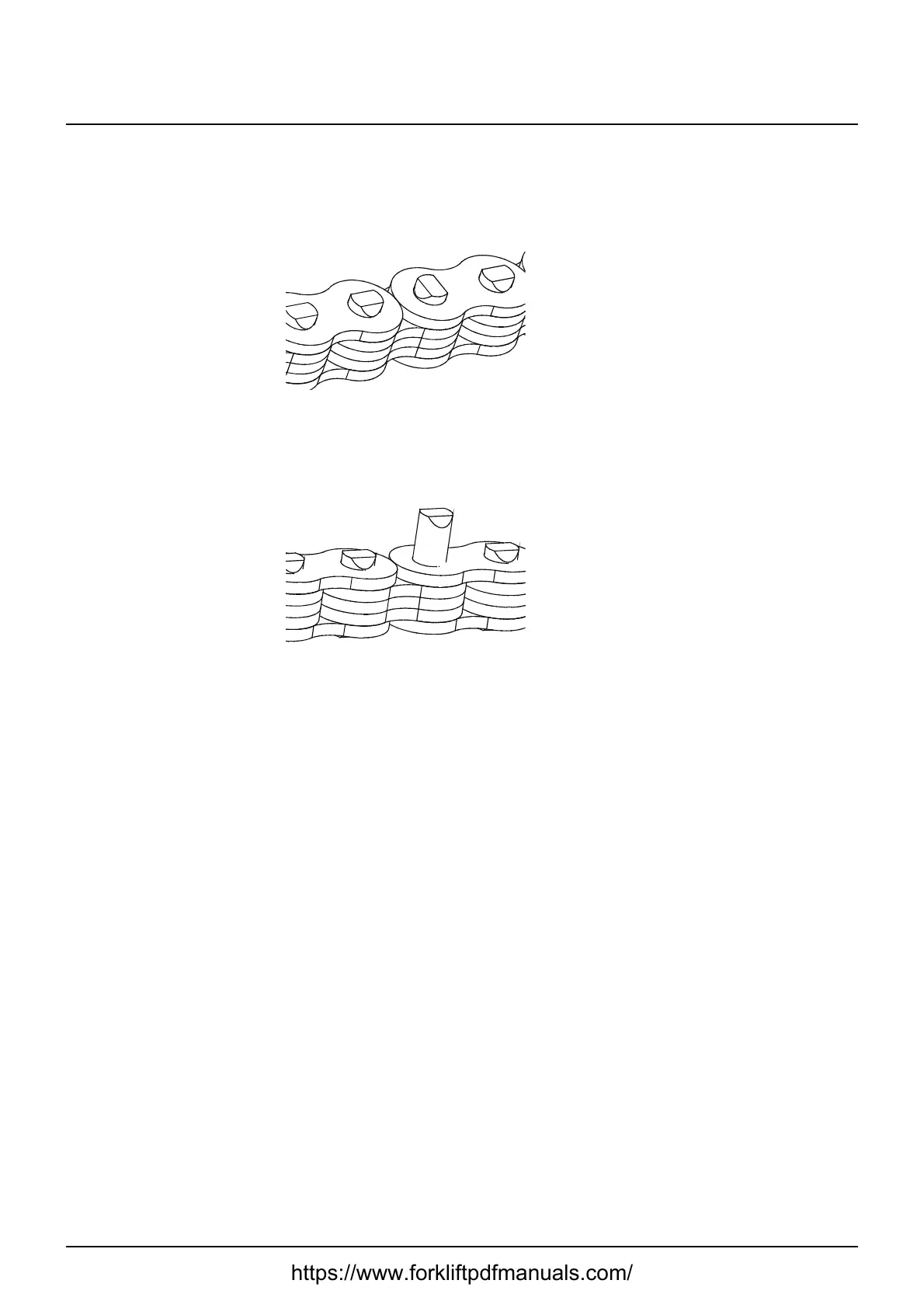

Bolt rotation can be a phenomenon of stiff links. The fault is easy to see when

comparing with a new chain.

Replace the chain.

Loose bolts

If a bolt is loose it will protrude from the side of the chain, and this is due to a

stiff link or bolt rotation.

Replace the chain.
