© Cesab 11 – 3 T Code(s): 841, 842, 843
Repair manual: Drive gear 2550 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

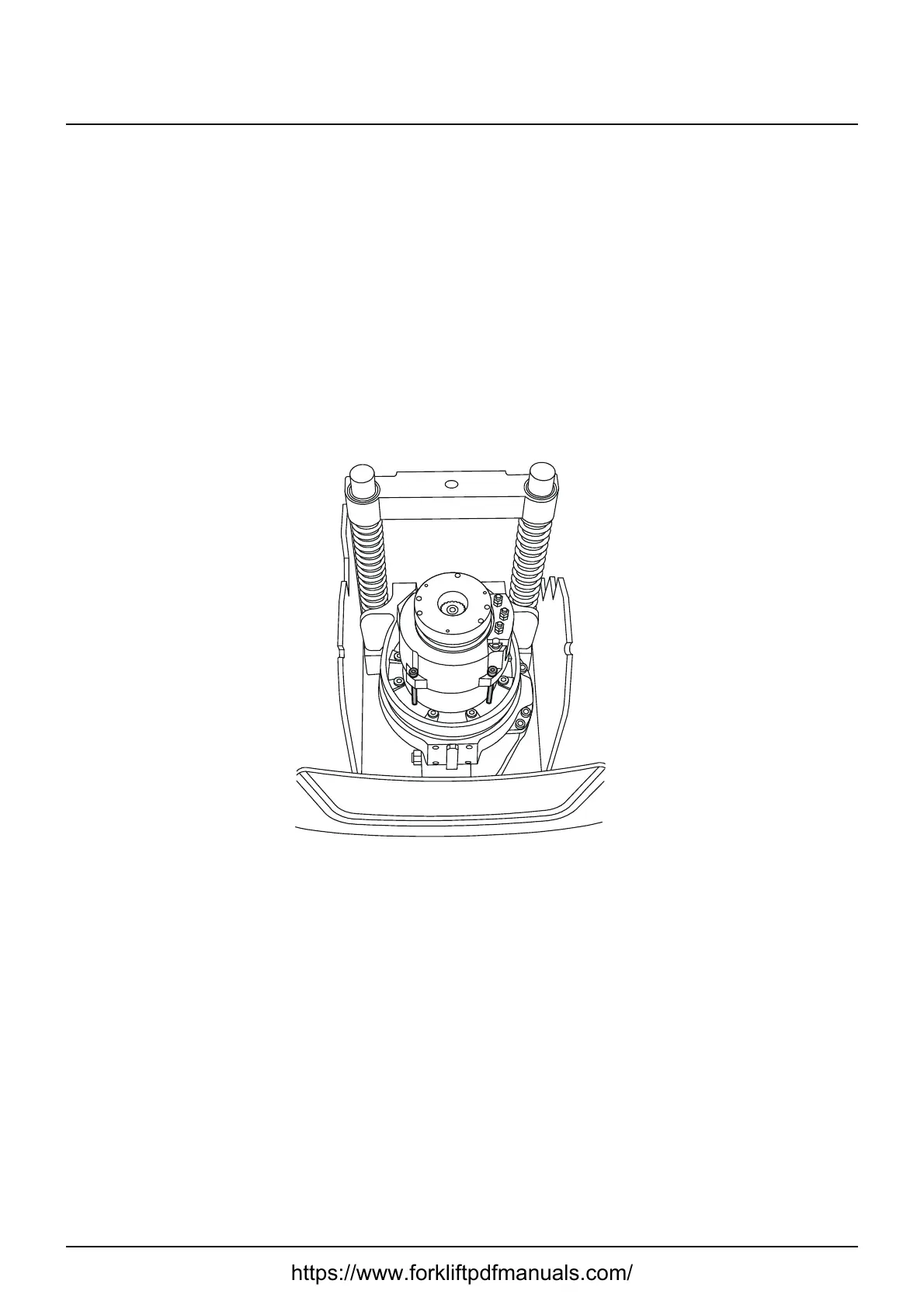

11.3 Removing the gear from the truck (not applicable for S212S)
1. Remove the covers.
The top cover is secured with Velcro tape. Be careful when detaching the
cover. Use of a suitable tool is recommended.
2. Cut off the cable ties of the cable duct on the transistor regulator side and
disconnect cable connections X5 and X65.
3. Unscrew the retaining screws of the steering console and remove the
steering console and the tiller arm.
4. Disassemble the speed sensor and disconnect the cable connections Q1
and B1.
5. Disconnect the motor cables and unscrew the motor retaining screws.
6. Lift out the motor from the truck.
7. Insert a 30 mm plug in the hole in the gear housing to prevent oil leakage
when the gear is removed from the truck.
8. Disconnect the cable duct.
9. Install the threaded M16 bar.
