Repair manual: Brake system/Wheels C3000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D

Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

12.4 Fitting the parking brake

1. Torque tighten the brake retaining screws to 5 Nm.

2. Fit the connector Q1.

3. Install the dust caps.

4. Fit the tiller arm and the steering yoke and tighten the mounting bolts to

23Nm

Make sure the wire grommet is mounted securely to the brake and placed

according to your notes.

• Connect the battery and close the motor compartment cover.

• Start the truck and check that the brake works correctly.

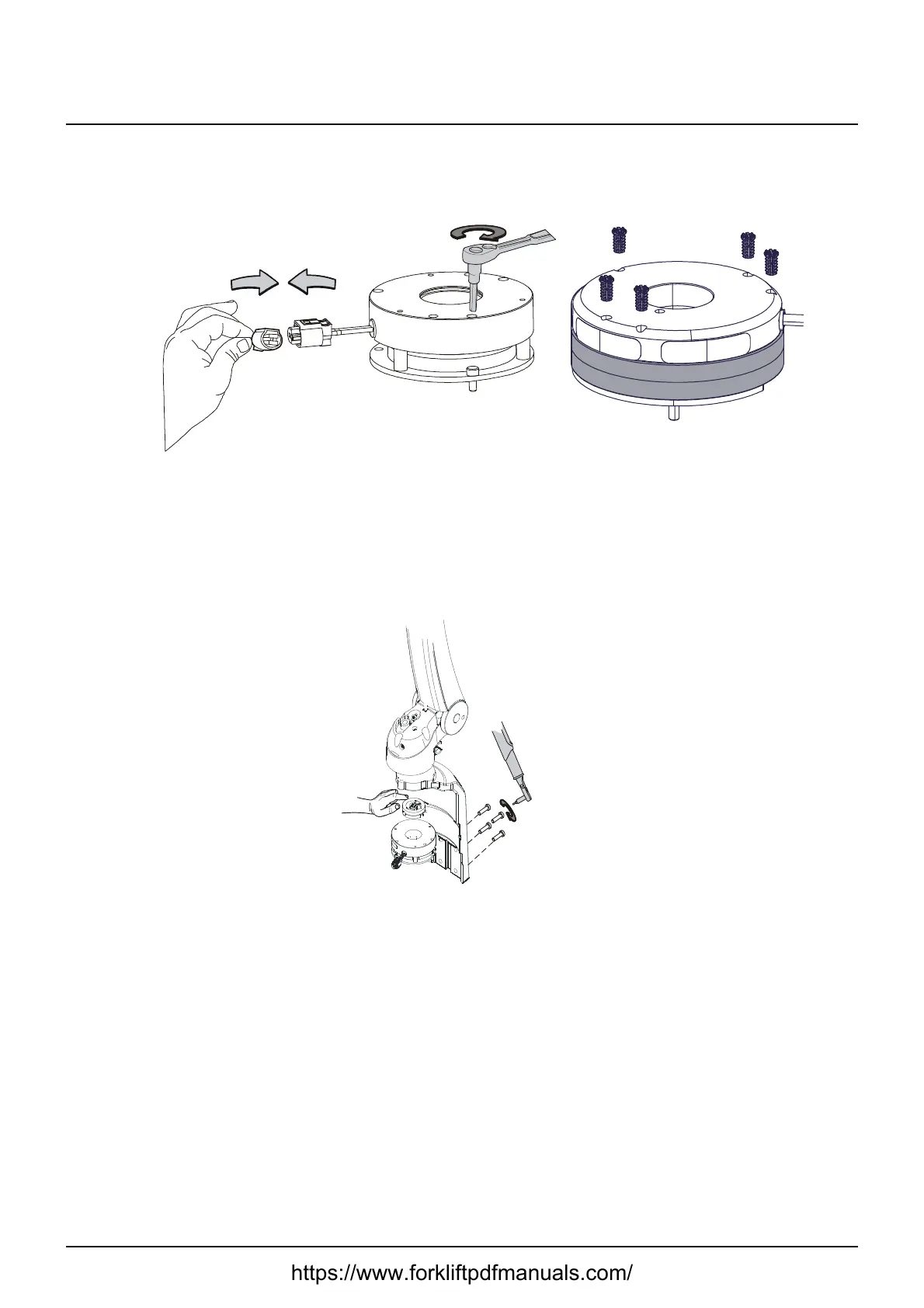

Steps 1 and 2

T=5Nm

Step 3

Step 4

T=23Nm
