CESAB S210 User Manual

© Cesab 12 – 7 T Code(s): 841, 842, 843
Repair manual: Brake system/Wheels C3000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
12.6 Drive wheel 3530

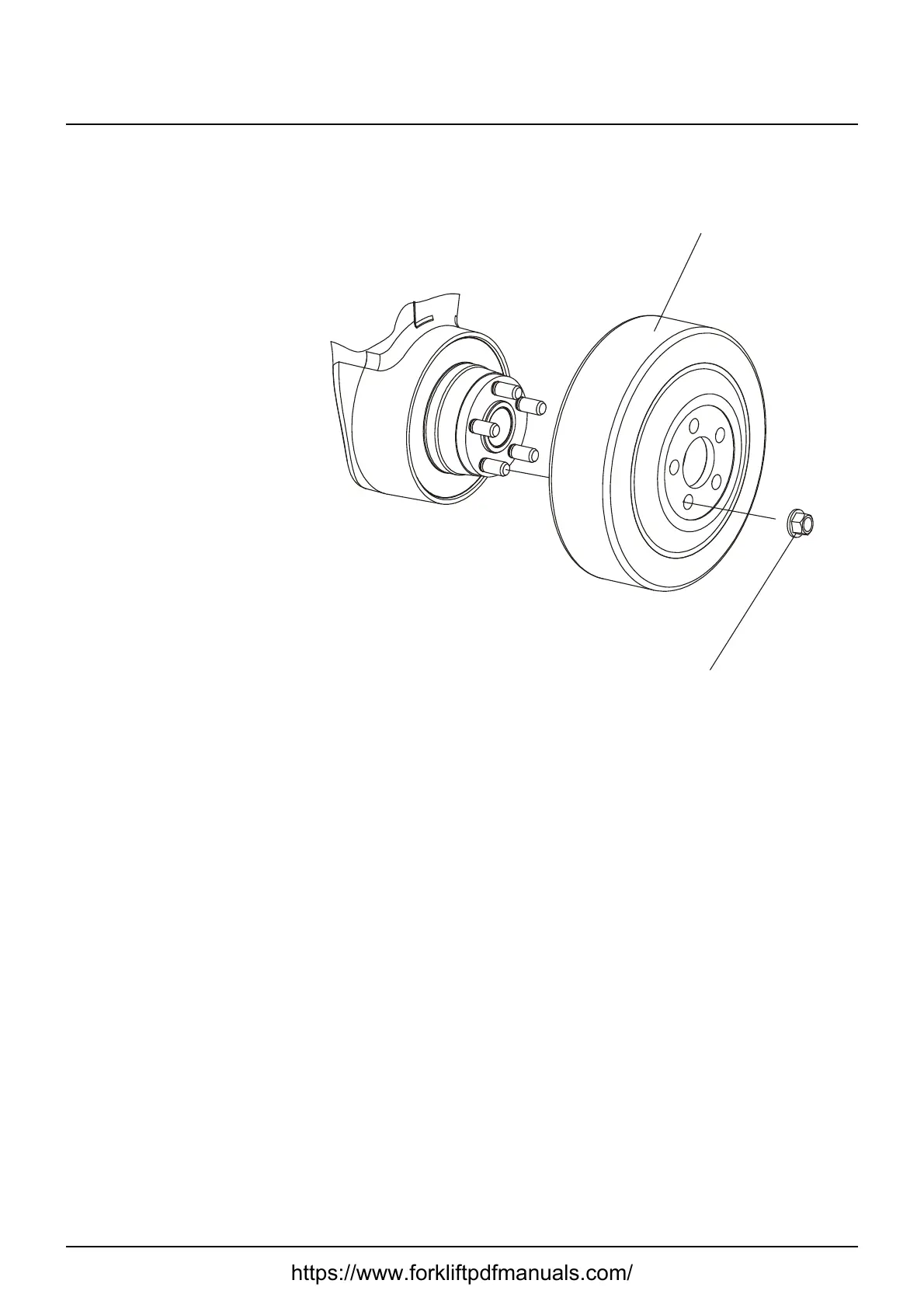

12.6.1 Replacing the drive wheel
1. Raise the forks and lift the truck (approx. 100 mm).
2. Disassemble the drive wheel (A).
It is simplest to loosen the drive wheel between the forks. Angle the
wheel to the side in order to work more easily under the truck.
3. Put the new wheel in position (A) and tighten the nuts (B) 81 ±19 Nm.
A
B
