© Cesab 16 – 7 T Code(s): 841, 842, 843
Repair manual: Mast C7000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
Outline wear

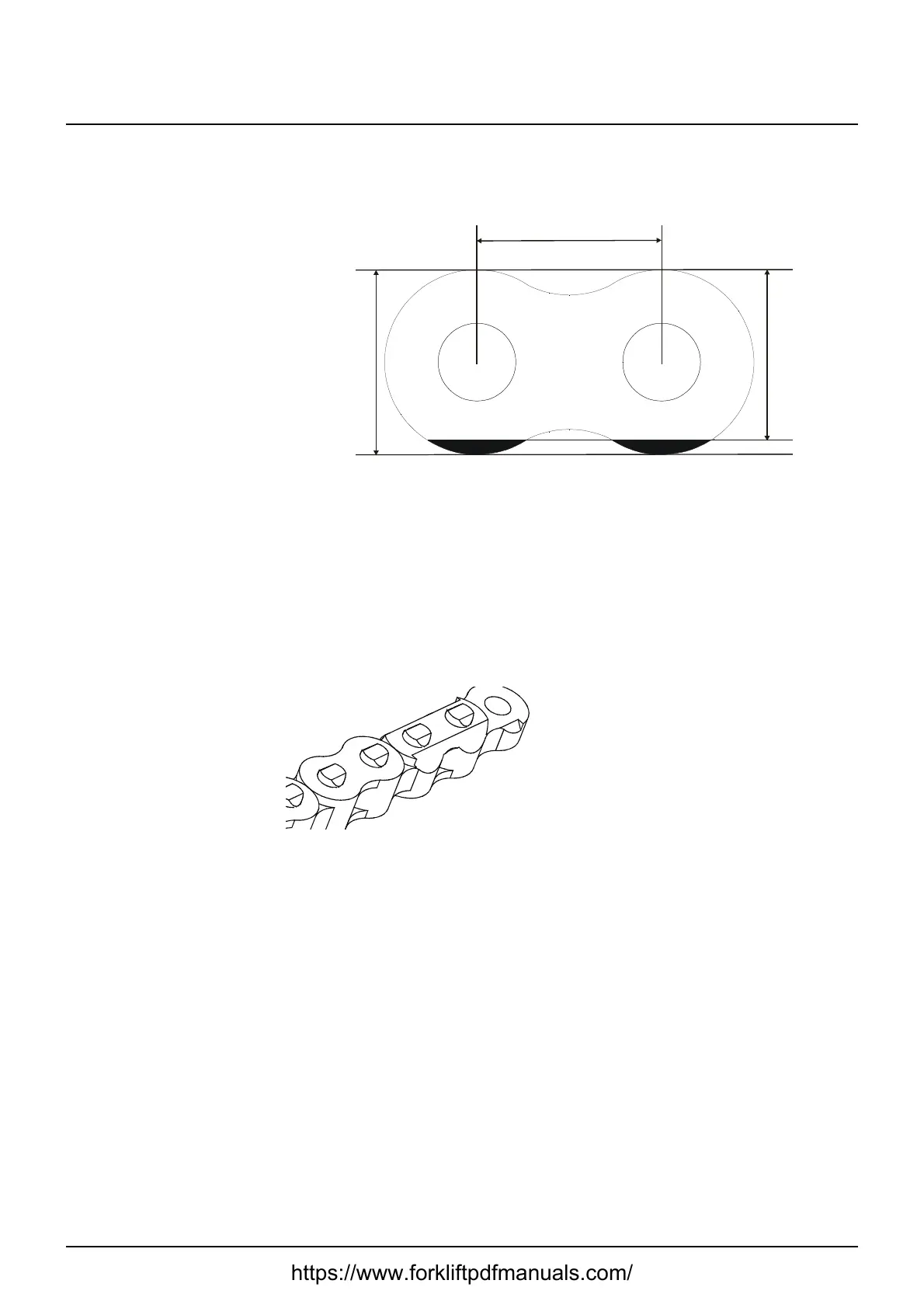

P = Pitch.
H2 = Nominal disc height.
H3 = Minimum disc height
A new lifting chain has a specific nominal plate thickness (H2 in the figure). As
the truck is used, the lifting chain wears radially on the side that rolls over the
chain wheel. The minimum plate height (defined as H3 in the figure) denotes
the minimum permitted value of the plate height.
Maximal permitted outline wear is 5% of the thickness H2. If a lifting chain
reaches the maximum level of wear, it must be replaced.
The nominal and minimum Plate heights for respective lifting chains are
stated in the table in the section “Stretching”.
