15.4 Hydraulic connections 6230
15.4.1 Quick change connectors
Connecting the quick change connector

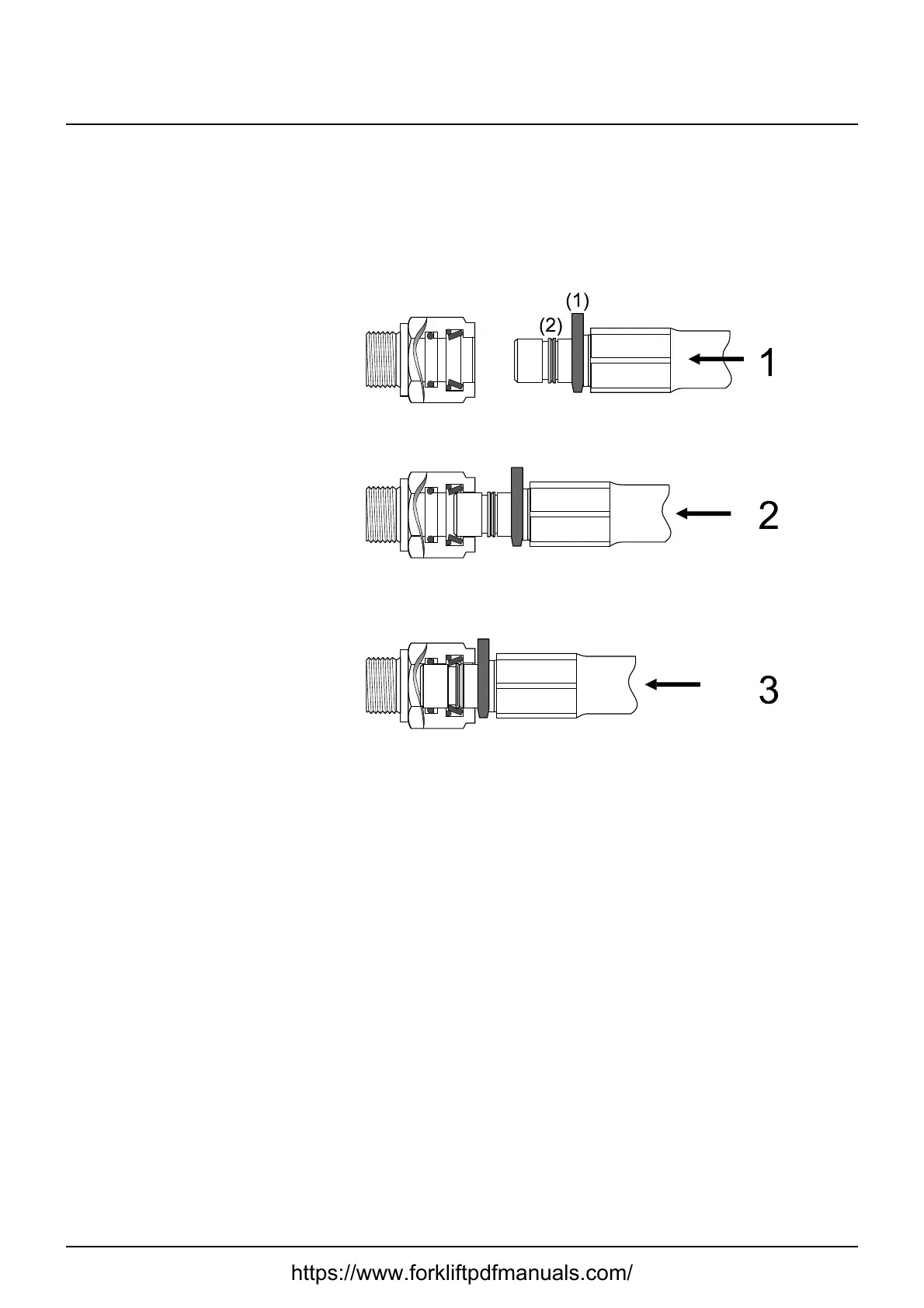

1. Place the assembly stop (1) on the male fitting and make sure that
the dismantling ring (2) runs freely in the groove.
2. Push the male fitting into the female fitting until the assembly stop
makes contact with the female fitting.
3. The coupling is now made and locked.
