Repair manual: Mast C7000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D

Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

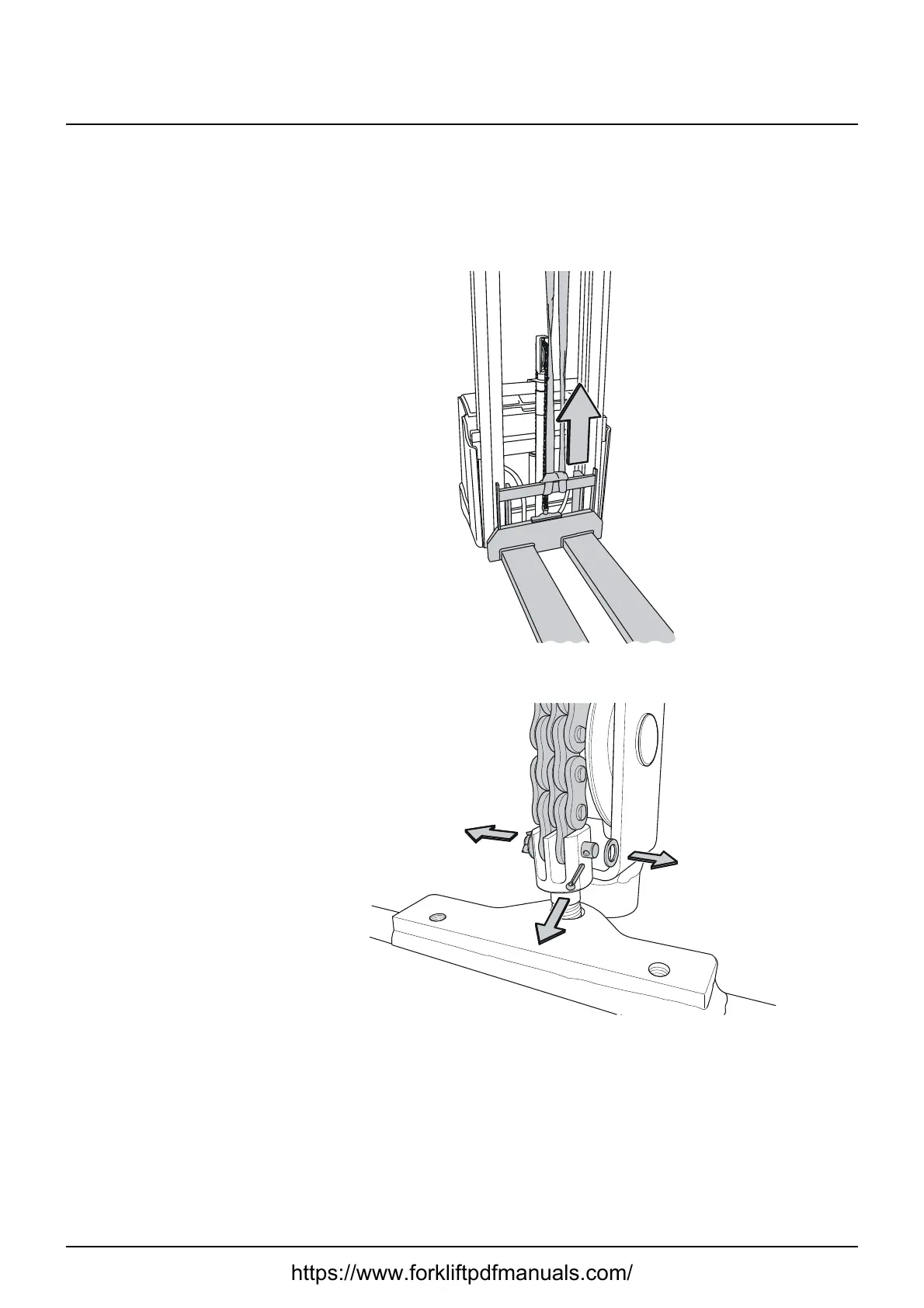

16.4 Replacing the fork carriage

1. Lift the fork carriage with an overhead crane or with another truck to take

the load off the chain.

2. Remove the chain bolt.

3. Lower the fork carriage.
