Repair manual: Hydraulic system 6000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

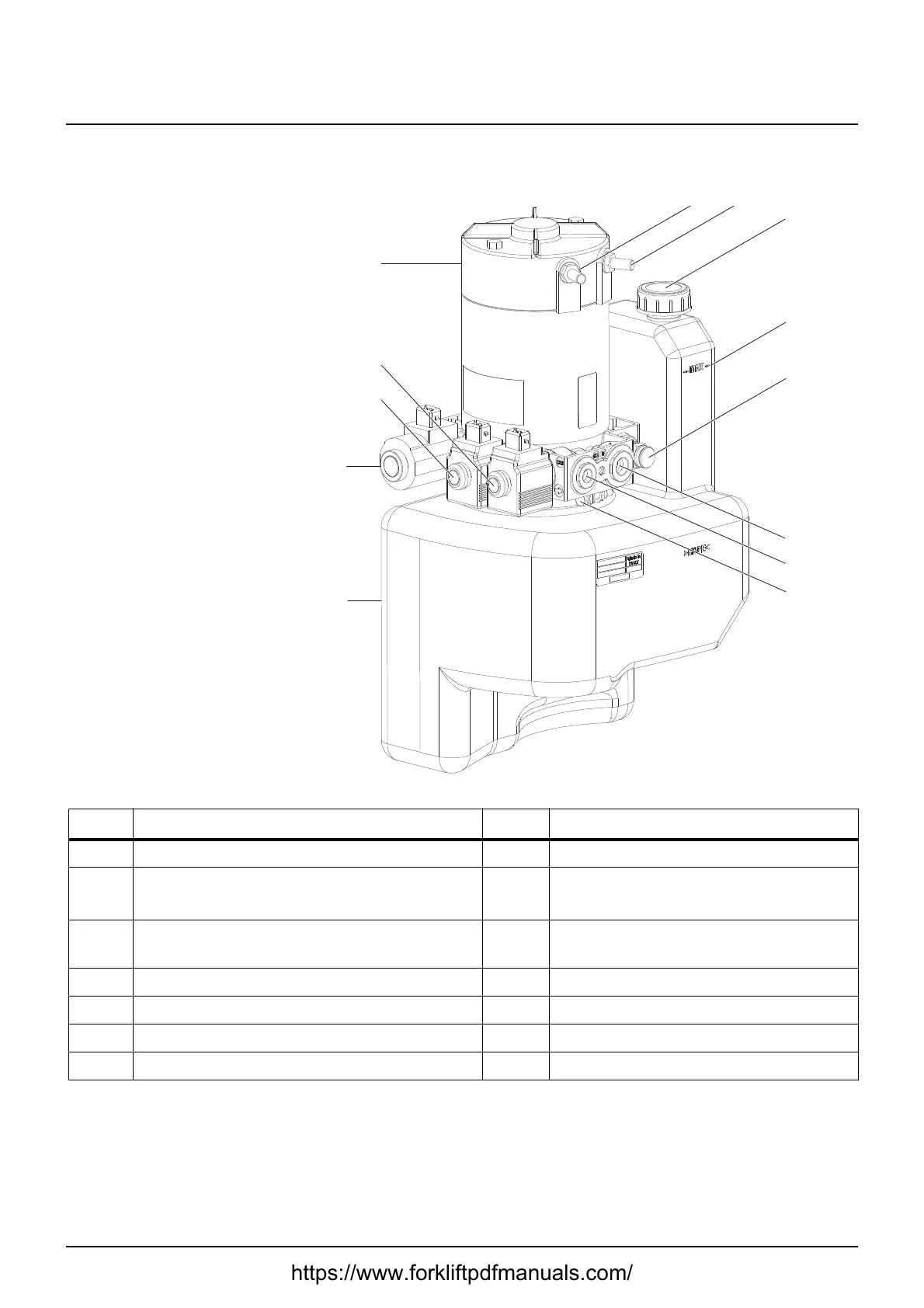

15.3 Hydraulic unit 6100
Pos. Description Pos. Description
a Pump motor [M3] h Hydraulic fork connection
b Solenoid valve, support arm selection
[Q23]
1
1.Only applies to S212L, S214L and S220D
i Pressure limiting valve
c Solenoid valve, fork selection
[Q22]<Superscript>1
k Maximum oil level
d Proportional valve, lowering [Q4] m Filling cap
e Tank (suitable oil volume 5 l) n Pump motor cable connection
f Screw o Pump motor cable connection
g Hydraulic connection, support arm
a
d
c
h
g
f
i
k
m
no
b
e
