Repair manual: Tiller arm 4000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D

Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

13.5.9 Replacing the signal button/switch

• Remove the stomach button Page 13–17

1: Remove the screws to the wire fittings.

2: Remove the connectors to the logic card

3: Remove the horn button, use a screwdriver to carefully prise it off the clip

fasteners.

4: Remove the switch by pulling it straight up.

• Install in reverse order.

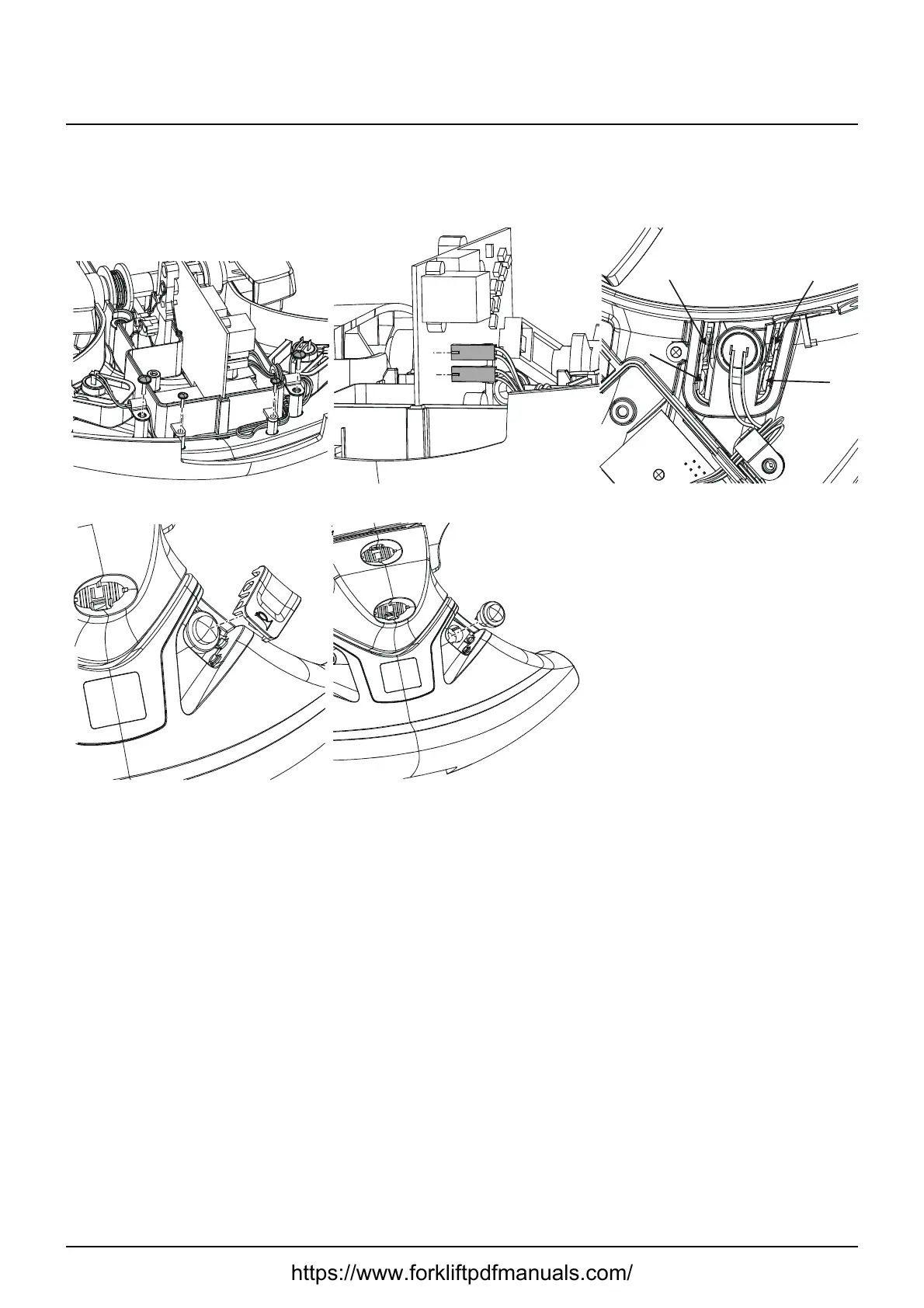

Step 1

Step 2

Step 3

Step 3 Step 4
