Repair manual: Electrical components-5000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
14.3 Replacing the wiring harness
Proceed as follows when replacing the wiring harness:

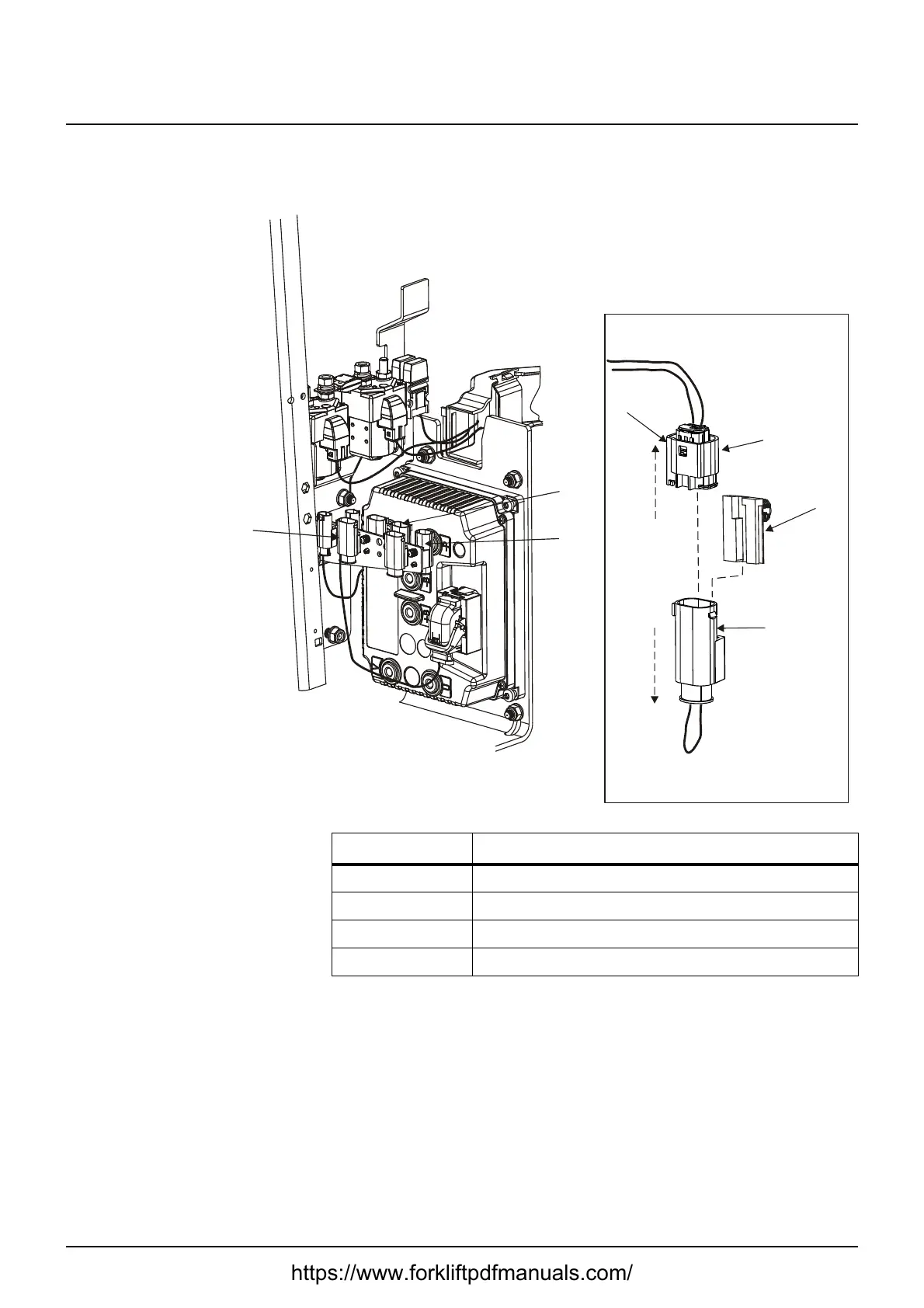

1. When prying the X connectors apart, press in the connector lock (A) of
the female part (B) and pull upwards.
2. Disconnect the female part (B) of the connector from the male part (D).
3. Then disconnect the male part (D) by pulling it downwards.
The bracket (C) remains on the connector panel.
Pos. Description
A Connector clamp
B Connector, female part
C Bracket
D Connector, male part
X21
X5
X60
A
B
C
D
