Changan CS35 User Manual

3.1.13-104
CS35 2013.04
3.1.13-104Electronic Control System - ME7

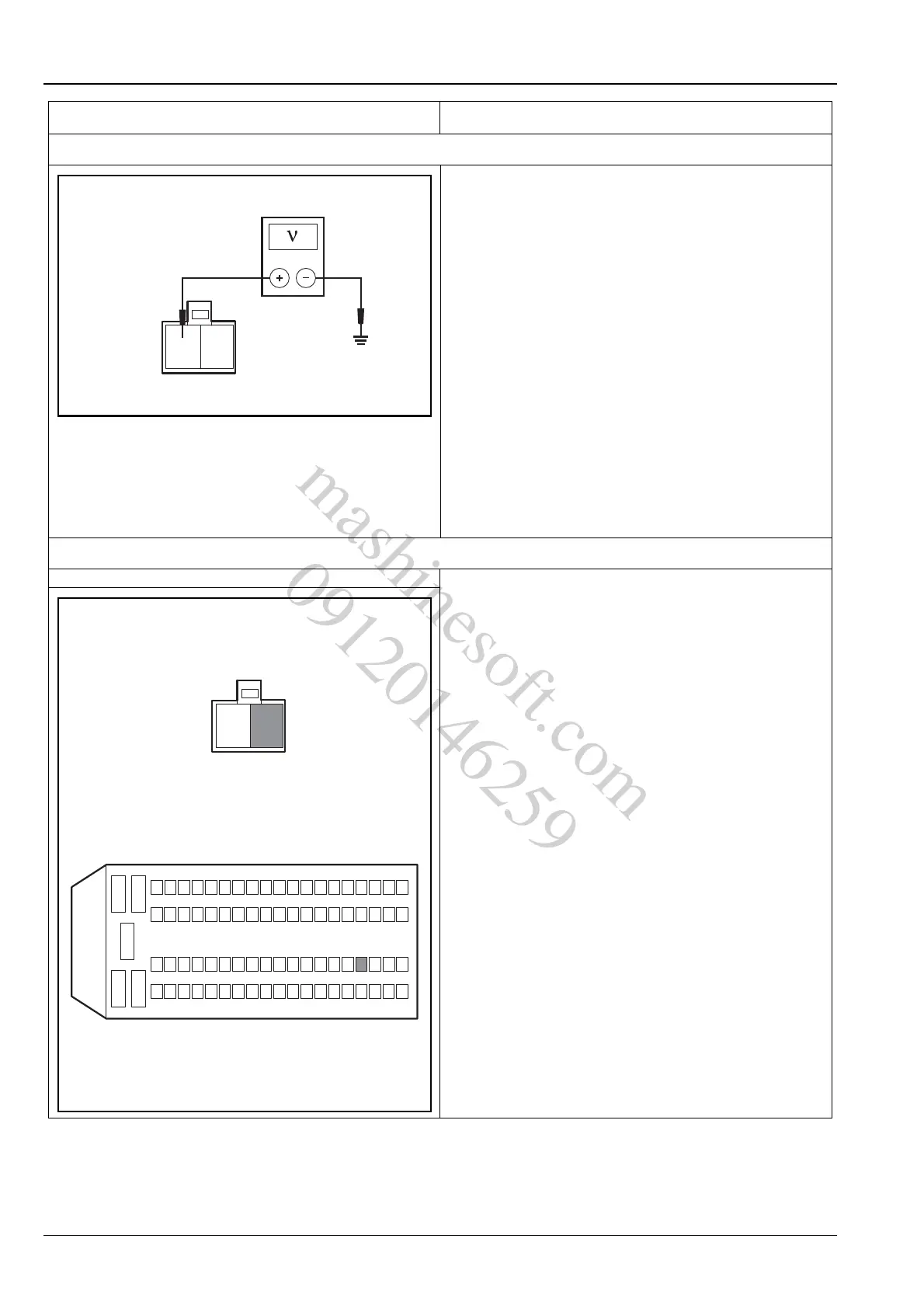

2. Inspect the power supply line of exhaust control valve
A. Turn the ignition switch to position "LOCK".
B. Disconnect OCV exhaust control valve wiring
harness connector E03.
C. Turn the ignition switch to position "ON".
D. Measure the voltage between terminal 2 of OCV
exhaust control valve wiring harness connector E03
and reliable grounding.
Standard Voltage Value: 11 ~1 4 V
Is the voltage normal?
Y
Go to step 3.
N
Repair the circuit from terminal 2 of OCV exhaust
control valve wiring harness connector E03 to termi-
nal 45 of the engine compartment electric center
C01 fuse EF23.
3. Inspect the ground circuit of exhaust control valve
A. Turn the ignition switch to position "LOCK".
B. Disconnect the battery negative cable.
C. Disconnect OCV exhaust control valve wiring
harness connector E03.
D. Disconnect the ECM wiring harness connector E01.
E. Measure the resistance between terminal 1 of OCV
exhaust control valve wiring harness connector E03
and terminal 28 of ECM wiring harness connector
E01.
Standard Resistance Value: less than 5 Ω
Is the resistance normal?
Y
Go to step 4.
N
Repair the circuit between the terminal 1 of OCV
exhaust control valve wiring harness connector E03
and the terminal 28 of ECM wiring harness connec-
tor E01.
Test Conditions Details/Results/Actions
21
E03
A3113169
E01
E03
21
12
3
45
624
25
28
43
4462
6381
A3113170
