2. Inspection method of switch connector or wiring harness
A. Connect the diagnostic tool to diagnosis interface
(DLC).
B. Turn the ignition switch to position "ON" (stop the
engine).
CAUTION: If the engine is started and run-
ning, carry out the following procedures
during its idle speed operation.
C. Access to the switch data stream that your are
inspecting.
D. Turn on the switch manually.
E. When monitoring the data stream, vertically,
horizontally gently shake each connector or wiring
harness. If the data stream value is unstable, please
inspect if there is a bad connection.
3. Inspection method of sensor connector or wiring harness
A. Connect the diagnostic tool to diagnosis interface
(DLC).
B. Turn the ignition switch to position "ON" (stop the
engine).
CAUTION: If the engine is started and run-
ning, carry out the following procedures
during its idle speed operation.
C. Access to the switch data stream that your are
inspecting.
D. When monitoring the data stream, vertically,
horizontally gently shake each connector or wiring
harness. If the data stream value is unstable, please
inspect if there is a bad connection.

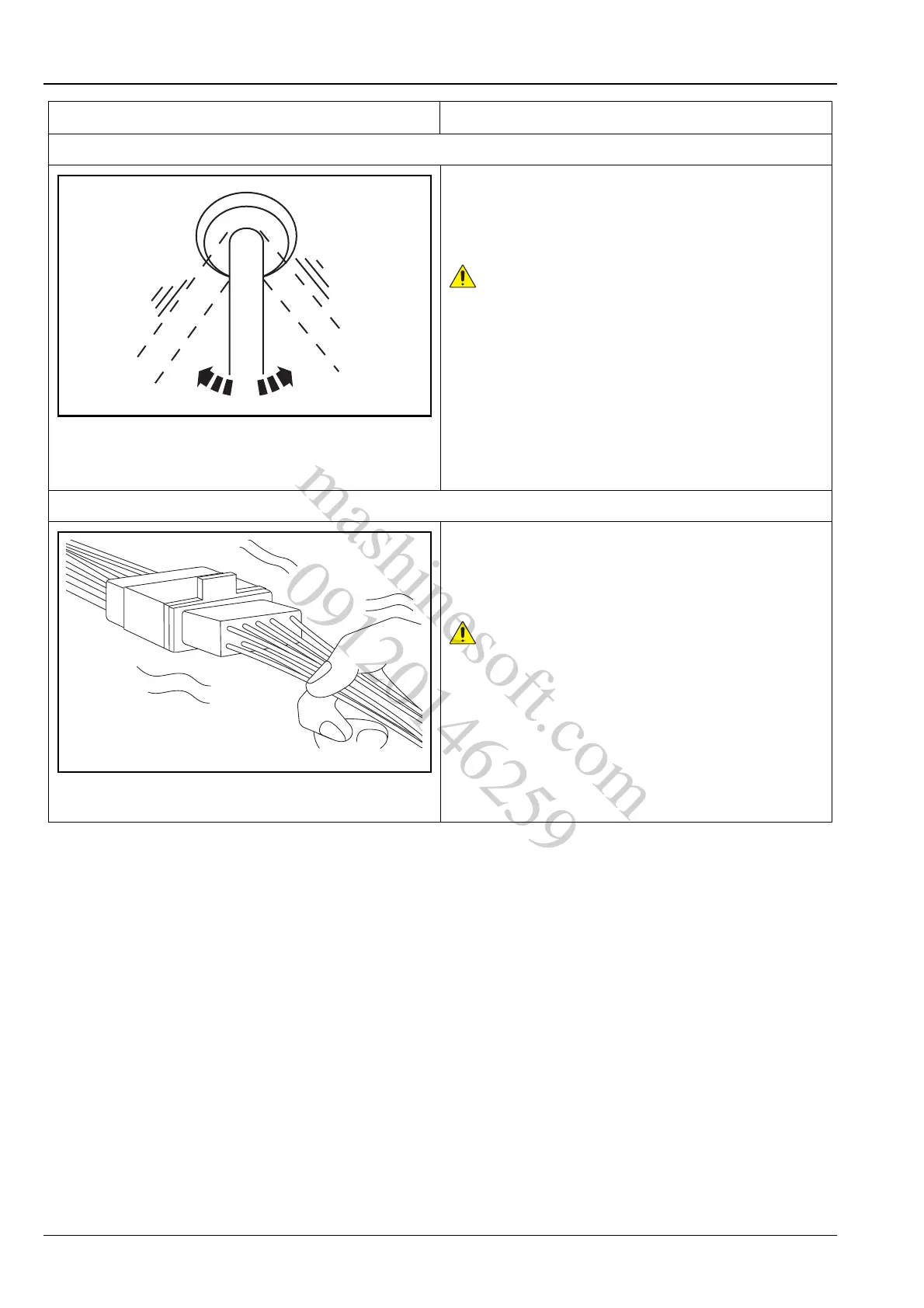

Test Conditions Details/Results/Actions
A3113027
A3113028
