CS35 2013.04
3.1.13-135 3.1.13-135Electronic Control System - ME7

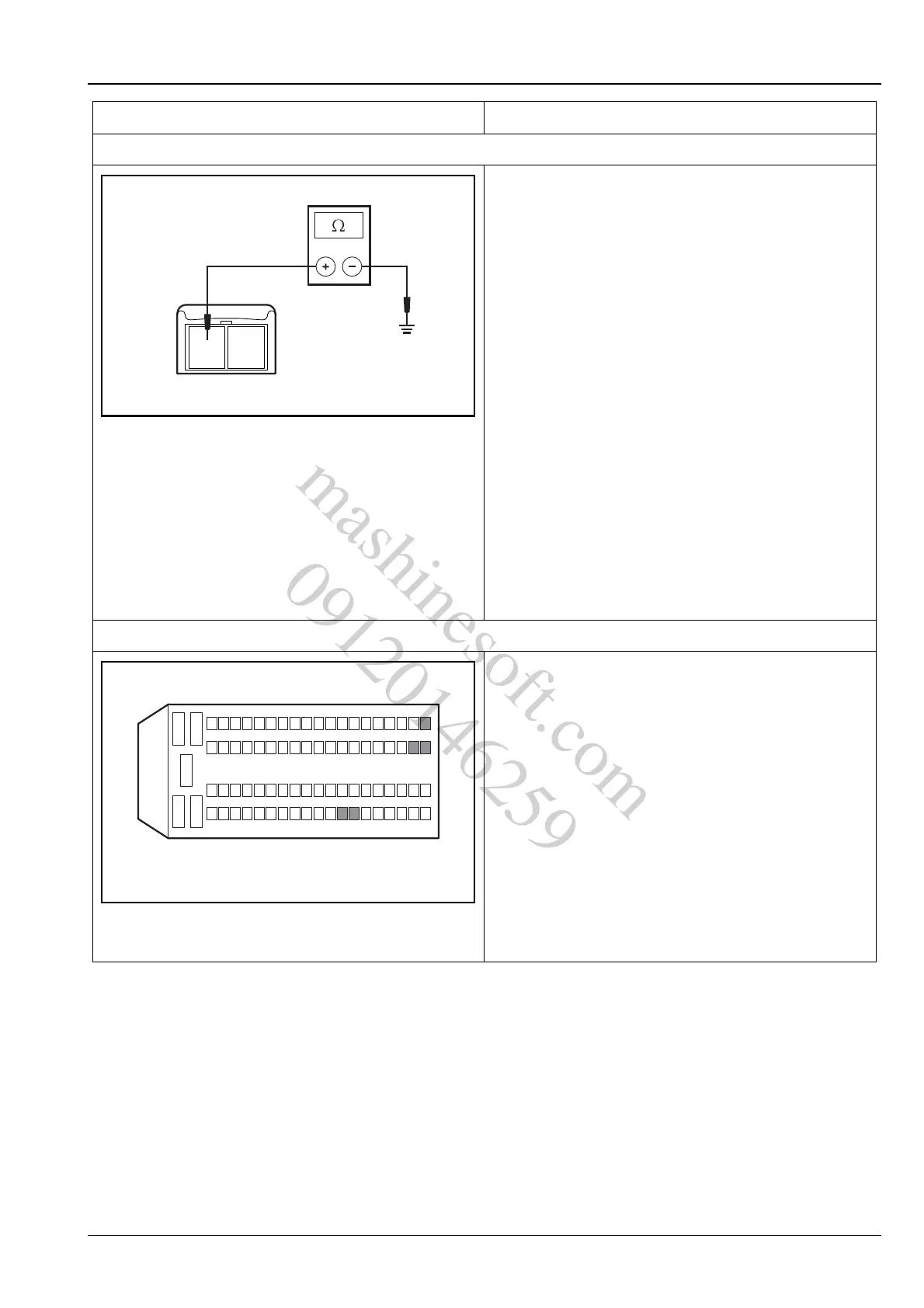

4. Inspect the water temperature sensor grounding
A. Turn the ignition switch to position "LOCK".
B. Disconnect the water temperature sensor wiring
harness connector E22 and measure the resistance
value between terminal 1 of the water temperature
sensor wiring harness wiring harness connector
E22 and reliable grounding.
Standard Resistance Value: 10 M or more
C. Turn the ignition switch to position "ON".
D. Measure the resistance value between terminal 1 of
water temperature sensor connector E22 and the
reliable grounding.
Standard Resistance Value: less than 5
Is the resistance value normal?
Y
Go to step 5.
N
Repair the fault circuit between terminal 1 of water
temperature sensor wiring harness connector E22
and terminal 17 of ECM wiring harness connector
E01.
5. Inspect the ECM power supply circuit
A. Turn the ignition switch to position "LOCK".
B. Measure from the back of ECM wiring harness
connector E01.
C. Turn the ignition switch to "ON" position and use a
multimeter to measure the voltage between the
terminals 12, 13, 44, 45 and 63 of the ECM wiring
harness connector E01 and the power supply.
Standard Voltage Value: 11 ~ 14 V
Is the voltage normal?
Y
Go to step 6.
N
Repair and inspect the ECM power supply circuit.
Test Conditions Details/Results/Actions
12
E22
A3113066
12
3
45
624
2543
4462
63
13
12
45
81
E01
A3113031
