Changan CS35 User Manual

3.1.13-40
CS35 2013.04
3.1.13-40Electronic Control System - ME7
Normal Start, Idling is Too High Diagnosis

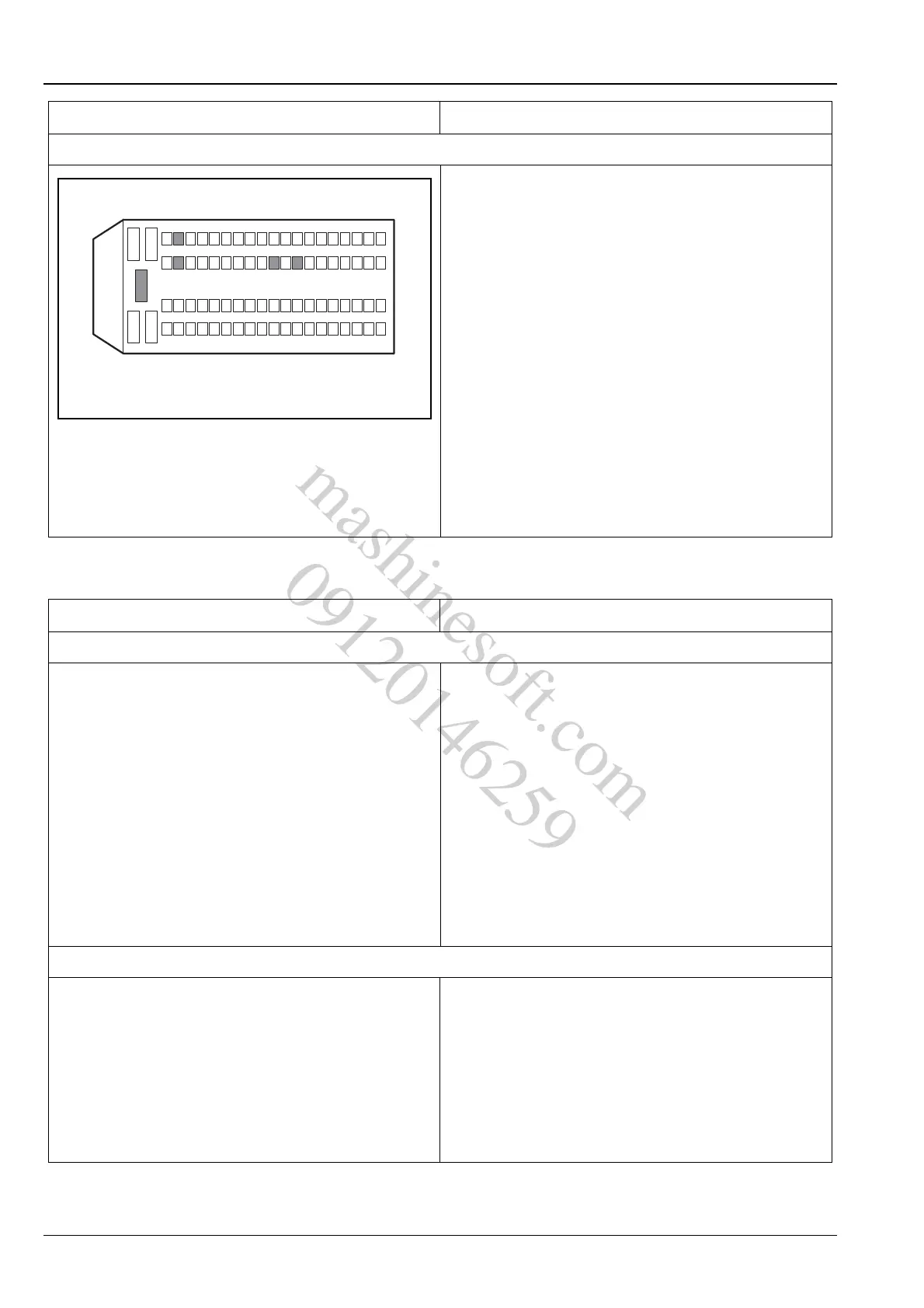

7. Inspect the ECM ground circuit
A. Turn the ignition switch to position "LOCK".
B. Measure from the back of ECM wiring harness
connector E01.
C. Measure with a multimeter the resistance between
the ECM wiring harness connector E01 terminal 3,
51, 53, 61 and 80 and the reliable grounding.
Standard Resistance Value: less than 5 Ω
Is the resistance value normal?
Y
Replace the engine control module.
Refer to: Engine Control Module (3.1.13
Electronic Control System - ME7, Removal
and Installation).
N
Inspect and repair the ECM ground circuit.
Test Conditions Details/Results/Actions
1. Inspect the trouble code
A. Connect the diagnostic tool
B. Turn the ignition switch to position "ON", diagnose
the engine system.
Is there any DTC?
Y
Go to trouble code diagnosis procedure.
Refer to: DTC Diagnosis procedure Index
(3.1.13 Engine Electrical control System -
ME7, DTC Diagnosis and Testing).
N
Go to step 2.
2. Inspect whether the accelerator pedal is stuck or too tight
A. Turn the ignition switch to position "LOCK".
B. Inspect if the accelerator pedal is stuck or too tight.
Is the accelerator pedal stuck or too tight?
Y
Repair or replace the accelerator pedal.
N
Go to step 3.
Test Conditions Details/Results/Actions
12
3
45
6
51
53
61
80
24
2543
4462
6381
E01
A3113032
