3.1.12-11 3.1.12-11Engine Immobilizer System
10. Inspect the BCM power supply circuit
A.Turn the ignition switch to position "LOCK".
B.Disconnect the battery cathode cable.
C.Disconnect the body control module wiring harness
connector P14, P23.
D.Connect the battery negative cable.
E.Turn the ignition switch to position "ON".
F.Measure the voltage between the terminal 2, 4, 16,
19 body control module wiring harness connector
P14, and terminal 1 of P23 and the reliable ground.
Standard Voltage Value: 11 ~ 14 V
Is the voltage normal？
Y
Go to step 11.
N
Inspect and repair the BCM power supply circuit.

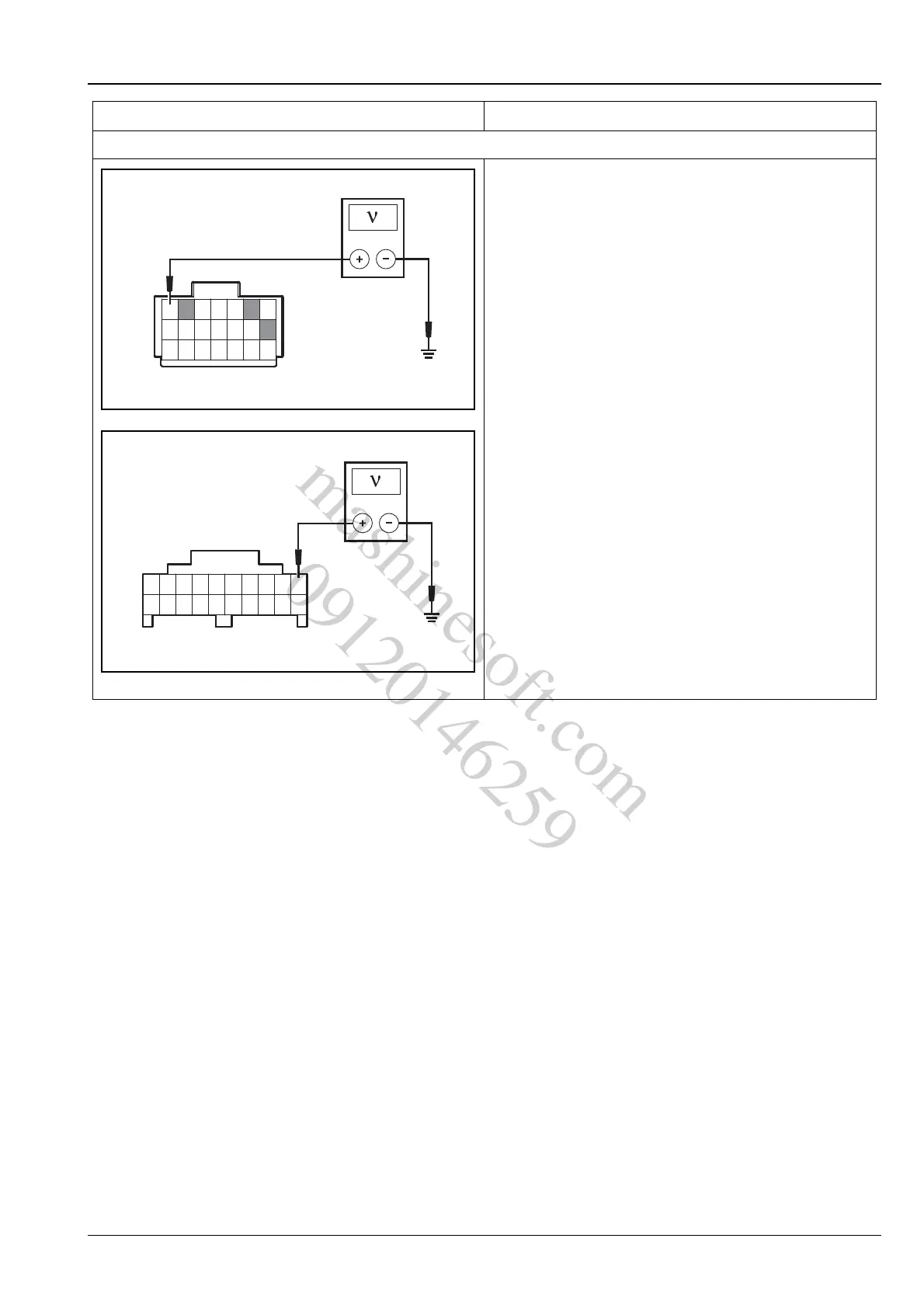

Test conditions Details/Results/Actions
P14
1
2
3
4
6
7
9
10
12
13
15
16
18
19
21
A3112005
P23
10
20
1
11
A3112013
