3.1.13-120
CS35 2013.04
3.1.13-120Electronic Control System - ME7
3. Diagnosis Procedures
Test Conditions Details/Results/Actions
1. General inspection
A. Inspect for the following items:
• Sensor cover is damaged, vacuum pipe cracks.
• Sensor sealing is damaged
• Sensor loose or improper installation
• Sensor vacuum pipe is blocked.
Is it normal?
Y
Go to step 2.
N
Repair the fault.
2. Inspect the intake pressure sensor power supply voltage
A. Turn the ignition switch to position "LOCK".
B. Disconnect the intake pressure temperature sensor
wiring harness connector E12.
C. Turn the ignition switch to position "ON".

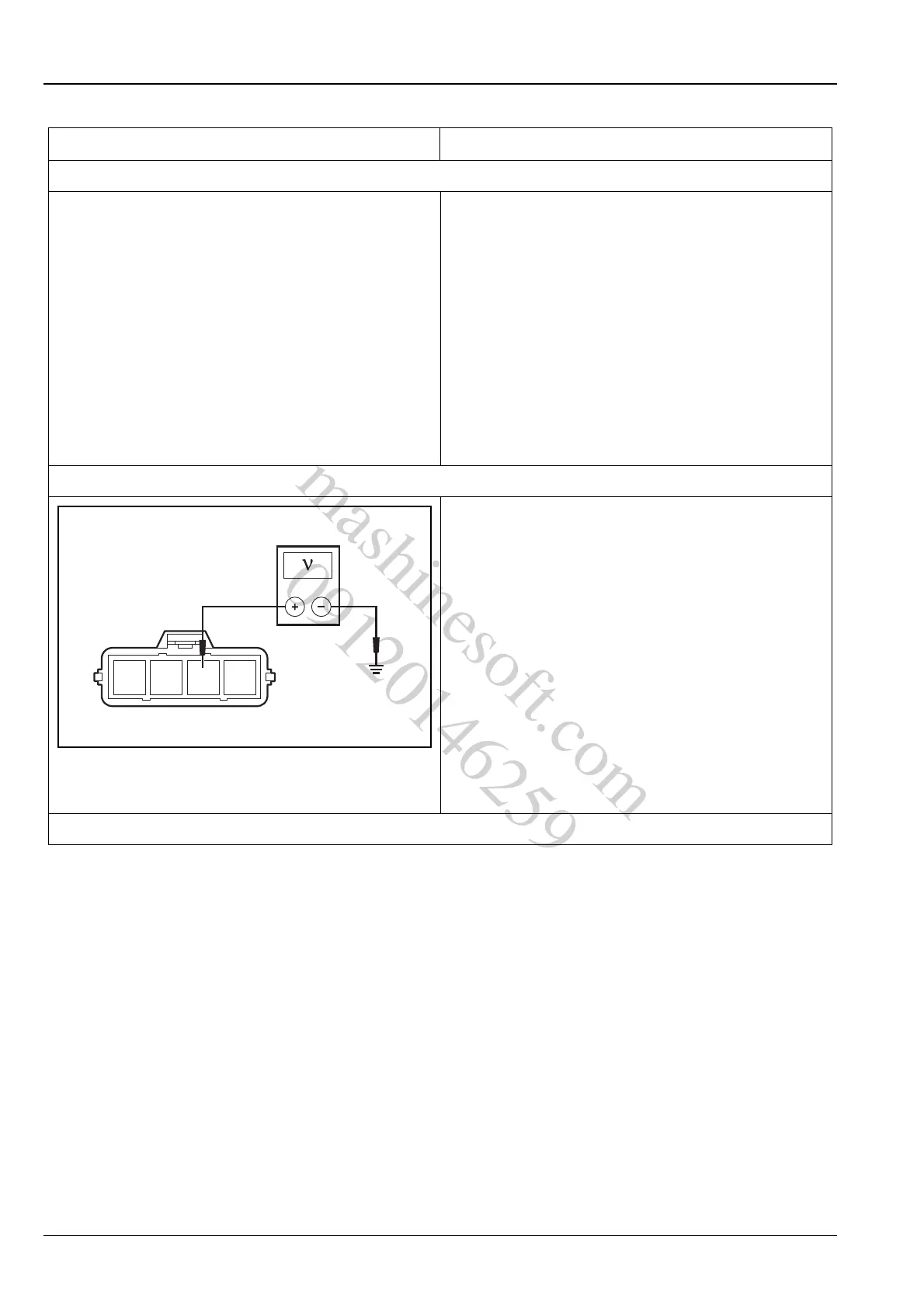

D. Measure the voltage between the terminal 3 of
intake pressure temperature sensor wiring harness
connector E12 and the reliable grounding.
Standard Voltage Value: 4.5 ~ 5.5 V
Is the voltage normal?
Y
Go to step 4.
N
Go to step 3.
3. Inspect the air intake pressure sensor power supply circuit
